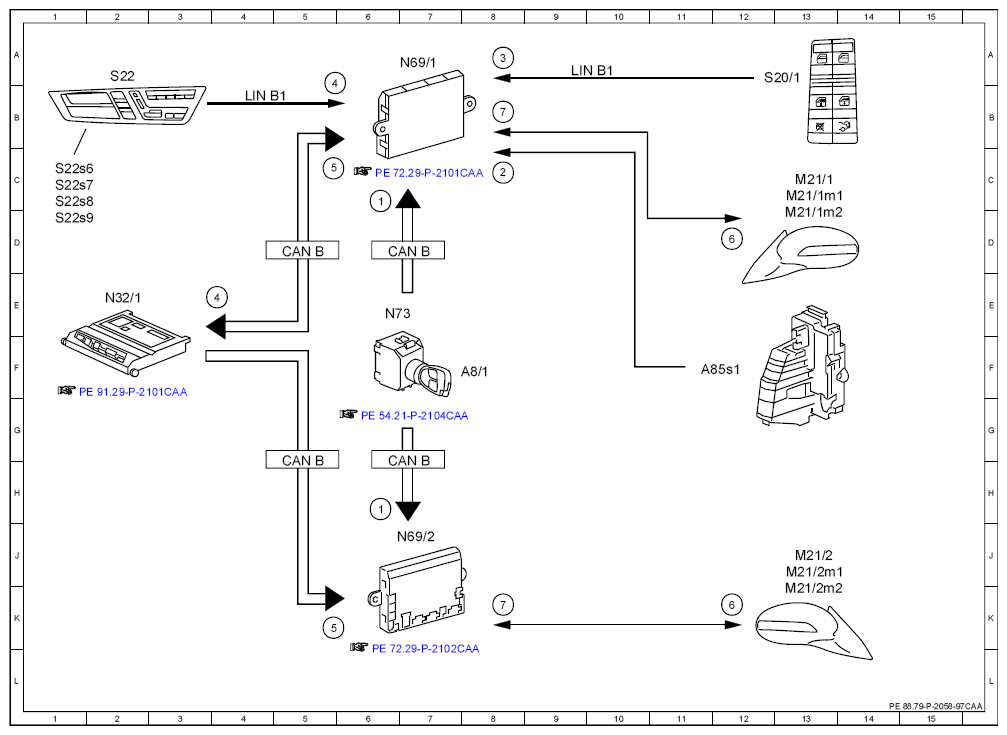

| 1 |
Circuit 15, status |
6C |
| 1 |
Circuit 15, status |
6H |
| 2 |
Door rotary tumbler switch, status |
8C |
| 3 |
Outside mirror adjustment switch group, status |
8A |
| 4 |
Adjust or store memory position, request |
6B |
| 4 |
Adjust or store memory position, request |
4E |
| 5 |
Store memory positions, request |
6C |
| 5 |
Store memory positions, request |
5K |
| 6 |
Actuator motors, actuation |
12D |
| 6 |
Actuator motors, actuation |
12K |
| 7 |
Outside mirror actuator motor, signal |
8K |
| 7 |
Outside mirror actuator motor, signal |
8B |
| A8/1 |
Transmitter key |
7F |
| A85s1 |
Left rotary tumbler switch |
13F |
| CAN B |
Interior CAN |
7D |
| CAN B |
Interior CAN |
5D |
| CAN B |
Interior CAN |
7G |
| CAN B |
Interior CAN |
5G |
| LIN B1 |
Front door LIN |
4B |
| LIN B1 |
Front door LIN |
10A |
| M21/1 |
Left electrically adjustable and heated outside mirror |
13D |
| M21/1m1 |
Mirror up/down adjustment motor |
13D |
| M21/1m2 |
Mirror in/out adjustment motor |
13D |
| M21/2 |
Right electrically adjustable and heated outside mirror |
13K |
| M21/2m1 |
Mirror up/down adjustment motor |
13K |
| M21/2m2 |
Mirror in/out adjustment motor |
13K |
| N32/1 |
Left front seat control unit |
2F |
| N69/1 |
Left door control unit |
7B |
| N69/2 |
Right door control unit |
7K |
| N73 |
EIS [EZS] control unit |
7F |
| S20/1 |
Driver power window, outside mirror and trunk lid switch group |
13A |
| S22 |
Left front seat operation switch group |
2B |
| S22s6 |
Memory switch |
2B |
| S22s7 |
Memory 1 switch |
2B |
| S22s8 |
Memory 2 switch |
2B |
| S22s9 |
Memory 3 switch |
2B |
