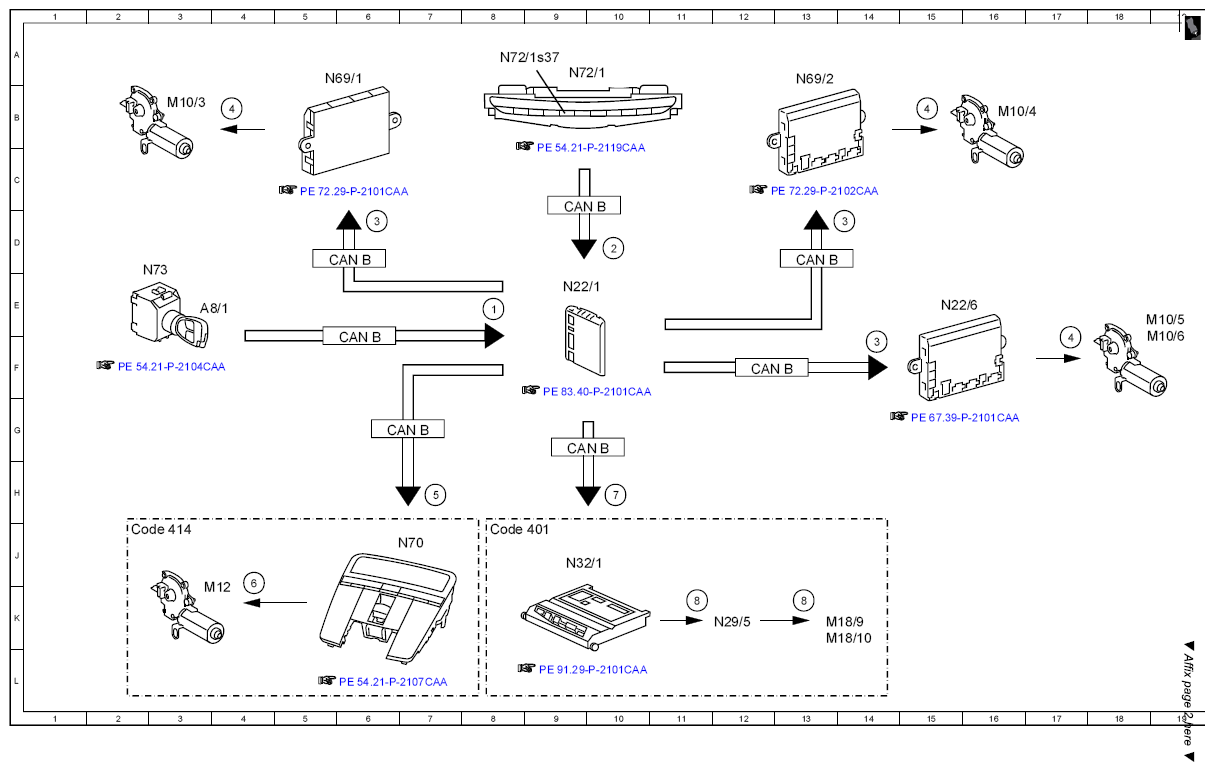

| 1 |
Circuit 15, status |
8E |
| 2 |
Comfort closing/opening, request |
10D |
| 3 |
Power window motor, request |
6D |
| 3 |
Power window motor, request |
14D |
| 3 |
Power window motor, request |
14F |
| 4 |
Power window motor, actuation |
17F |
| 4 |
Power window motor, actuation |
4B |
| 4 |
Power window motor, actuation |
15B |
| 5 |
Roof system drive unit, request |
7H |
| 6 |
Roof system drive unit, actuation |
4K |
| 7 |
Seat ventilation, request |
10H |
| 8 |
Seat ventilation, actuation |
11K |
| 8 |
Seat ventilation, actuation |
13K |
| A8/1 |
Transmitter key |
3E |
| CAN B |
Interior CAN |
6D |
| CAN B |
Interior CAN |
6E |
| CAN B |
Interior CAN |
7G |
| CAN B |
Interior CAN |
10G |
| CAN B |
Interior CAN |
12F |
| CAN B |
Interior CAN |
13D |
| CAN B |
Interior CAN |
9D |
| Code 401 |
Front comfort seats, incl. seat heating and seat ventilation |
8J |
| Code 414 |
Electric glass tilting/sliding roof |
3J |
| M10/3 |
Left front power window motor |
3B |
| M10/4 |
Right front power window motor |
16B |
| M10/5 |
Left rear power window motor |
18F |
| M10/6 |
Right rear power window motor |
18F |
| M12 |
Roof system drive unit |
3K |
| M18/10 |
Left front seat backrest ventilation motor group |
14K |
| M18/9 |
Left front seat cushion ventilation motor group |
14K |
| N22/1 |
AAC [KLA] control unit |
9E |
| N22/6 |
Rear control unit |
15F |
| N29/5 |
Left front seat ventilation blower regulator |
12K |
| N32/1 |
Left front seat control unit |
9K |
| N69/1 |
Left door control unit |
6B |
| N69/2 |
Right door control unit |
13B |
| N70 |
Overhead control panel control unit |
6K |
| N72/1 |
Upper control panel control unit |
9B |
| N72/1 s37 |
Air recirculation button |
8A |
| N73 |
EIS [EZS] control unit |
3E |
