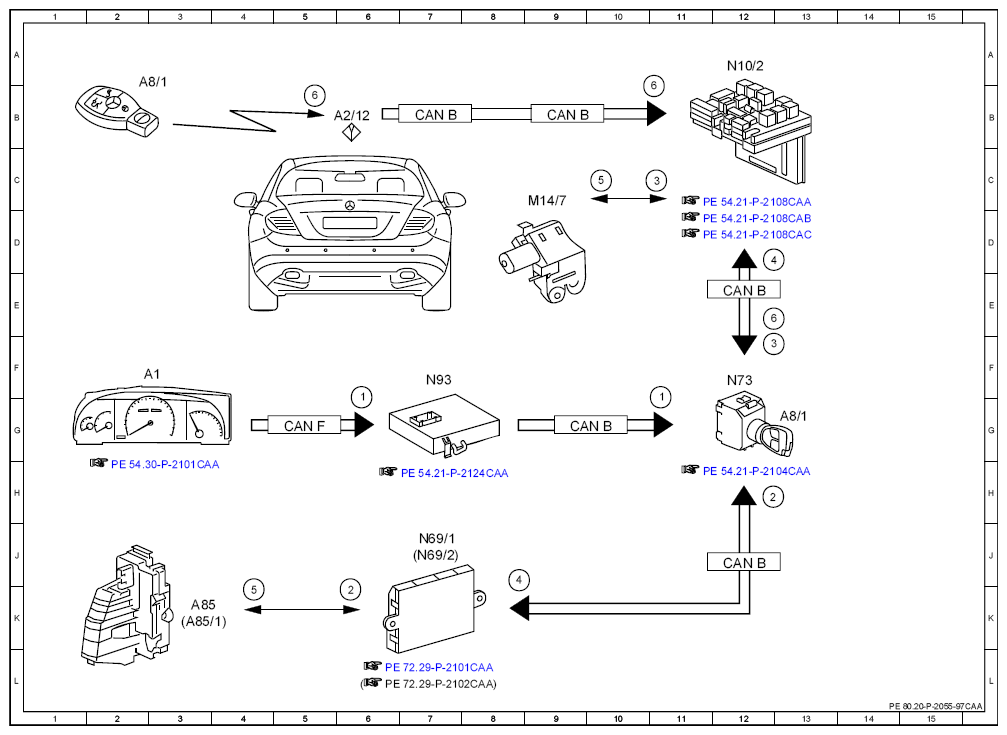

| 1 |
Vehicle speed, signal |
11G |
| 1 |
Vehicle speed, signal |
6G |
| 2 |
Door rotary tumbler switch, status |
13H |
| 2 |
Door rotary tumbler switch, status |
6K |
| 3 |
Trunk lid rotary tumbler microswitch, status |
11C |
| 3 |
Trunk lid rotary tumbler microswitch, status |
13F |
| 4 |
CL [ZV] motor, request |
8K |
| 4 |
CL [ZV] motor, request |
12D |
| 5 |
CL [ZV] motor, actuation |
4K |
| 5 |
CL [ZV] motor, actuation |
10C |
| 6 |
Unlock central locking, request |
13E |
| 6 |
Unlock central locking, request |
11B |
| 6 |
Unlock central locking, request |
5B |
| A1 |
Instrument cluster |
3G |
| A2/12 |
Rear window antenna amplifier module |
6B |
| A8/1 |
Transmitter key |
12G |
| A8/1 |
Transmitter key |
2B |
| A85 |
Left door lock unit |
2K |
| A85/1 |
Right door lock unit |
3K |
| CAN B |
Interior CAN |
10G |
| CAN B |
Interior CAN |
12J |
| CAN B |
Interior CAN |
12E |
| CAN B |
Interior CAN |
7B |
| CAN B |
Interior CAN |
9B |
| CAN F |
Central CAN |
5G |
| M14/7 |
Trunk lid CL [ZV] motor |
9D |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12B |
| N69/1 |
Left door control unit |
7K |
| N69/2 |
Right door control unit |
7K |
| N73 |
EIS [EZS] control unit |
12G |
| N93 |
Central gateway control unit |
7G |
