Keyless Go, location of components - GF80.61-P-0005-01SX

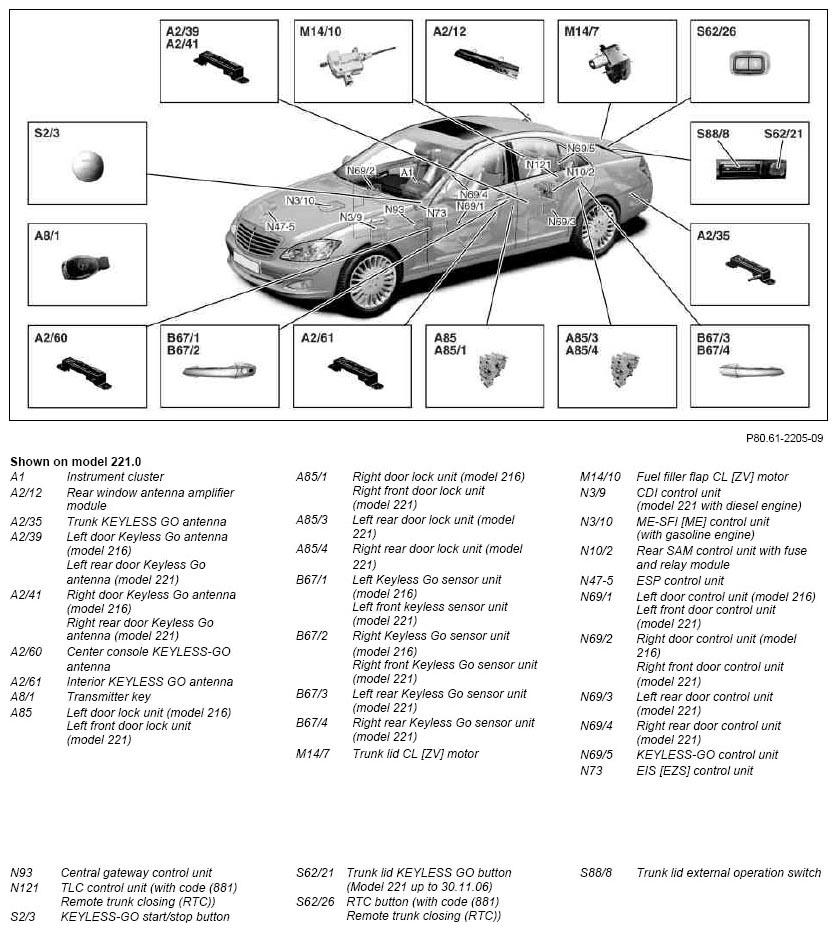

Fig 1: Keyless-Go Components Location (Shown On Model 221.0)

G07641853

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0
