KEYLESS-GO, location of components - GF80.61-P-0005-01LA

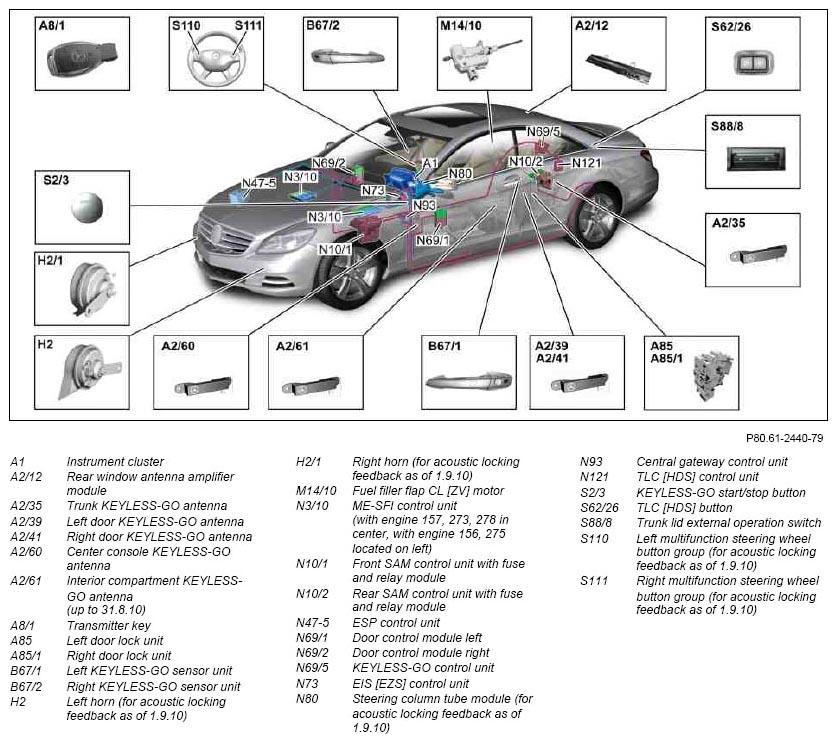

Fig 1: Keyless-Go Components Location

G07641852

Courtesy of MERCEDES-BENZ USA
