KEYLESS-GO, block diagram - GF80.61-P-0005-02LE

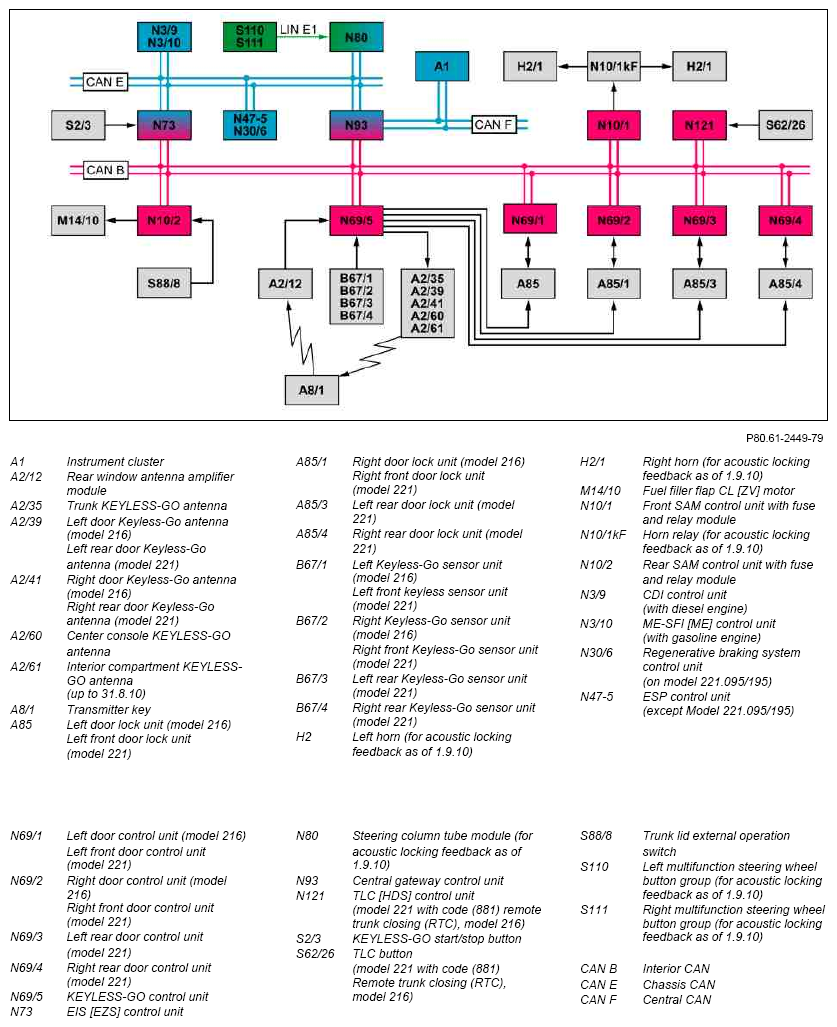

Fig 1: Keyless-Go Block Diagram

G07641854

Courtesy of MERCEDES-BENZ USA
