Central locking (CL [ZV]), location of components - GF80.20-P-0005-01LE

Shown on model 221.0

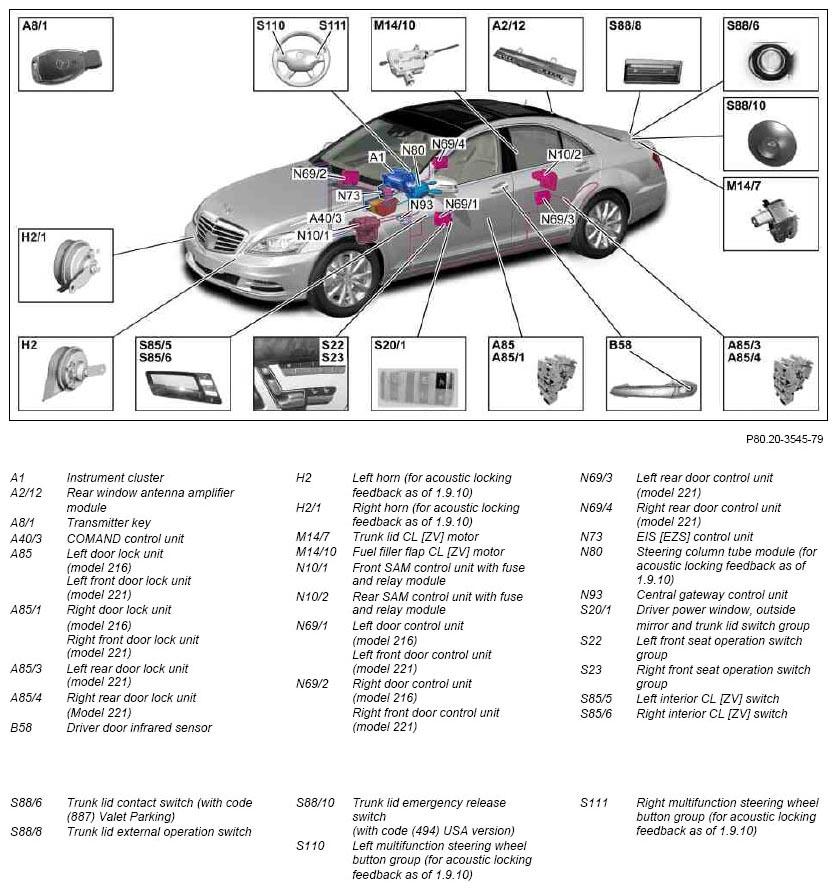

Fig 1: Central Locking Component Location (ZV)

G07641812

Courtesy of MERCEDES-BENZ USA
