Anti-theft alarm system (ATA [EDW]), block diagram - GF80.50-P-0001-01LE

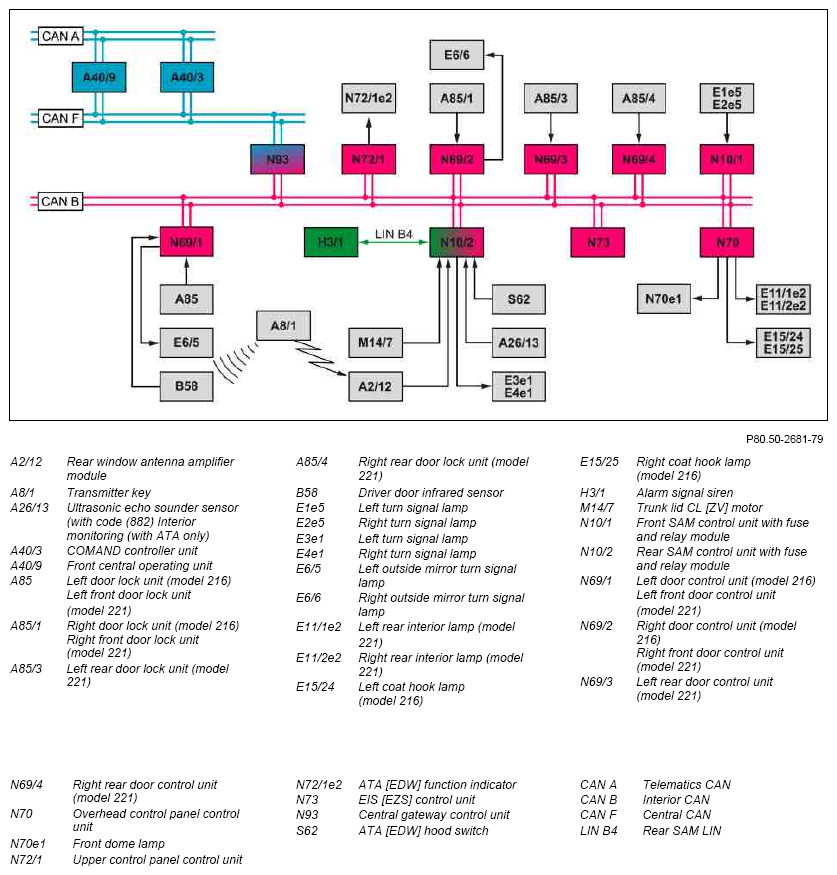

Fig 1: Anti-Theft Alarm System (EDW) Block Diagram

G07641833

Courtesy of MERCEDES-BENZ USA
