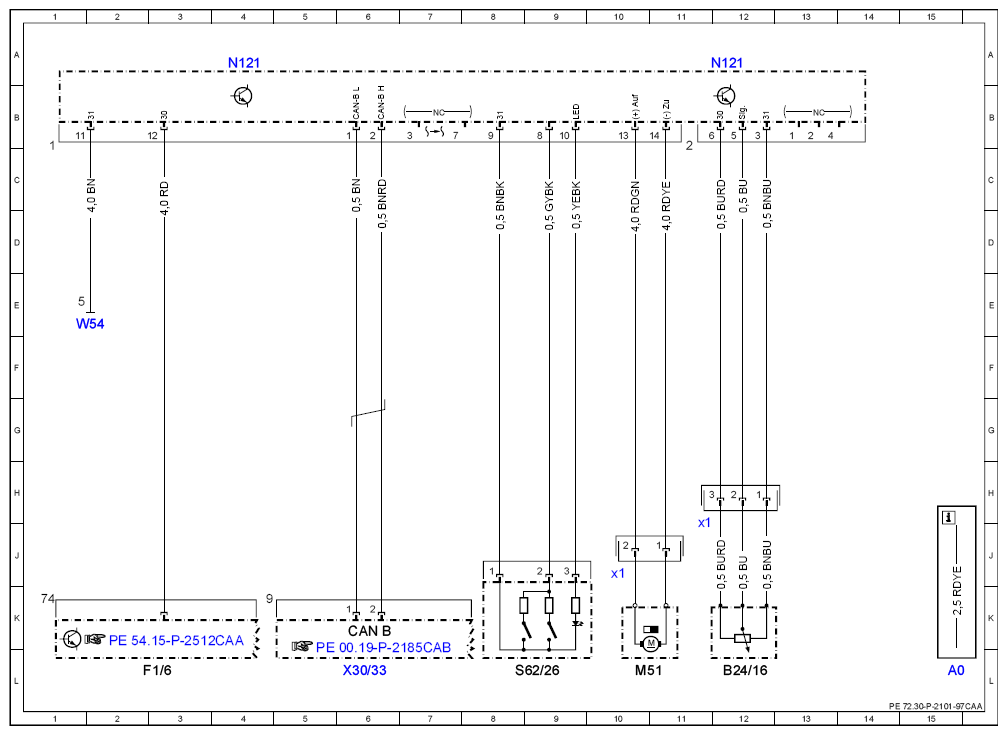

Wiring diagram for remote trunk closing control unit - PE72.30-P-2101-97CAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| B24/16 | Trunk lid position sensor | 12L |
| B24/16x1 | Trunk lid position sensor connector | 11J |
| CAN B | Interior CAN | 6K |
| F1/6 | Right instrument panel fuse box | 3L |
| M51 | TLC [HDS] hydraulic pump | 10L |
| M51x1 | TLC [HDS] hydraulic pump connector | 10J |
| N121 | TLC [HDS] control unit | 4A |
| N121 | TLC [HDS] control unit | 12A |
| S62/26 | TLC [HDS] button | 9L |
| W54 | Ground (right rear wheelhouse) | 1E |
| X30/33 | Right interior CAN/FFS [RBA] voltage distributor connector | 6L |
