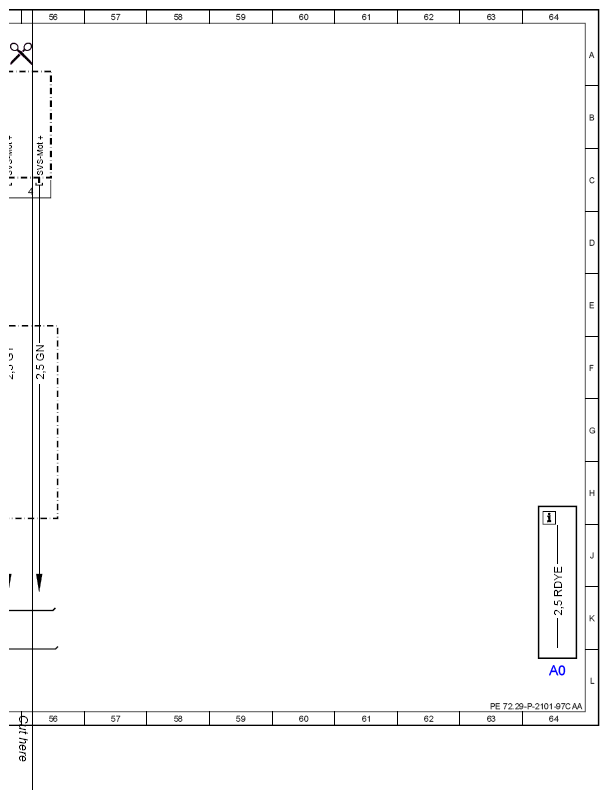

| A0 |
Color code key |
64L |
| A85 |
Left door lock unit |
53K |
| B58 |
Driver door infrared sensor |
49K |
| CAN B |
Interior CAN |
3K |
| E17/11 |
Left door inside handle illumination |
28L |
| E17/11 |
Left door inside handle illumination |
25L |

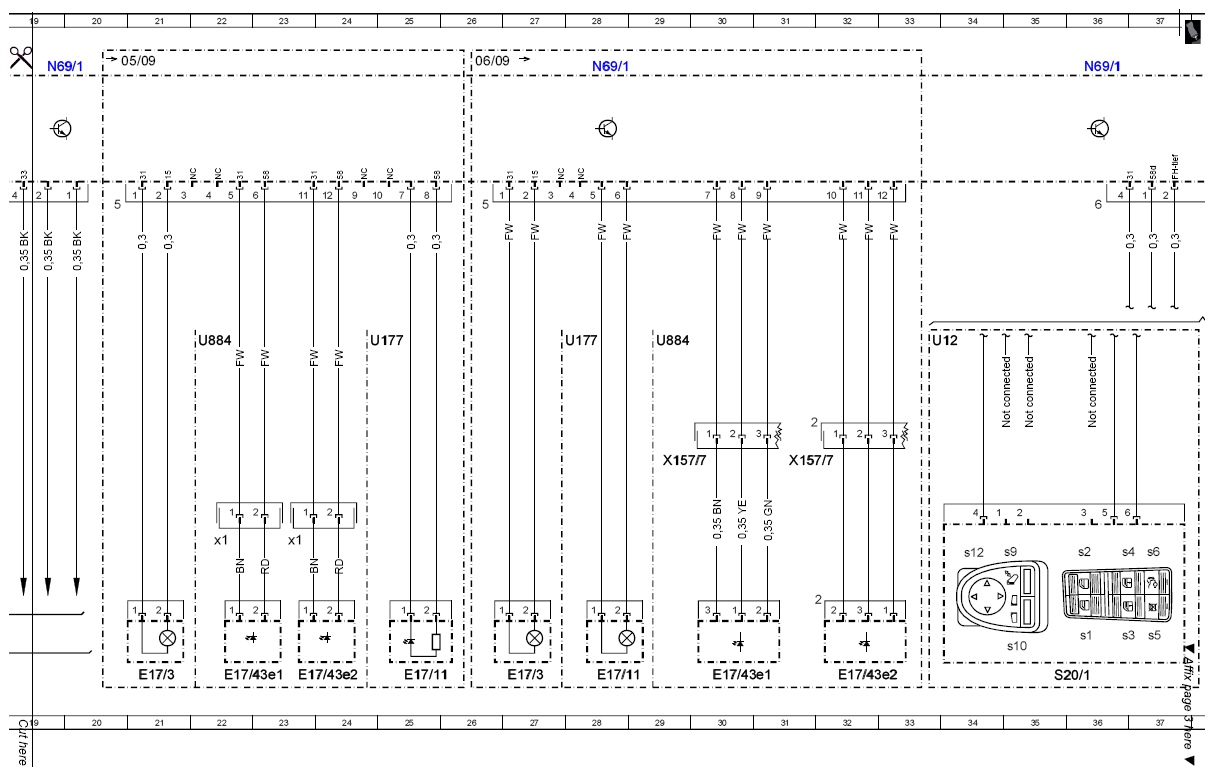

| E17/3 |
Left door entrance/exit lamp |
27L |
| E17/3 |
Left door entrance/exit lamp |
21L |
| E17/43e1 |
Left door trim strip illumination, lamp 1 |
22L |
| E17/43e1 |
Left door trim strip illumination, lamp 1 |
30L |
| E17/43e1x1 |
Left door trim strip illumination connector, lamp 1 |
22J |
| E17/43e2 |
Left door trim strip illumination, lamp 2 |
32L |
| E17/43e2 |
Left door trim strip illumination, lamp 2 |
23L |
| E17/43e2x1 |
Left door trim strip illumination connector, lamp 2 |
23J |

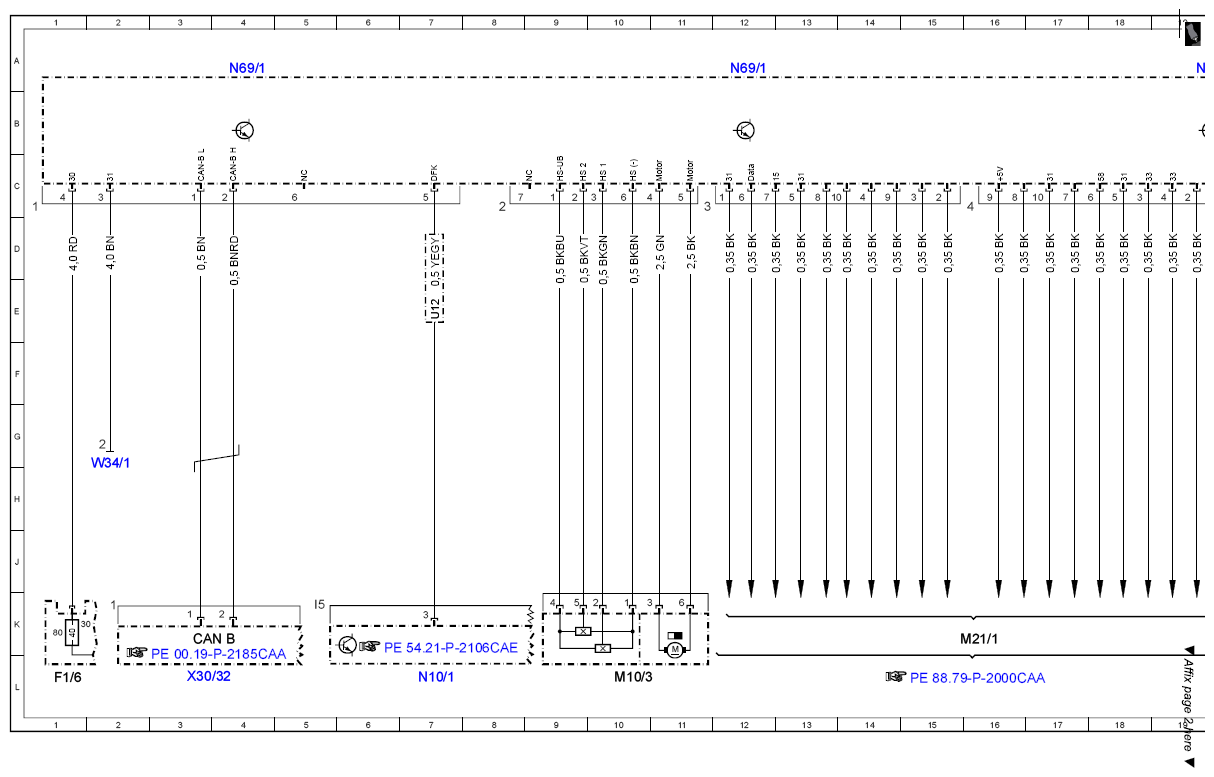

| F1/6 |
Right instrument panel fuse box |
1L |
| F1/6f80 |
Fuse 80 |
1K |
| M10/3 |
Left front power window motor |
10L |
| M21/1 |
Left electrically adjustable and heated outside mirror |
15K |
| N10/1 |
Front SAM control unit with fuse and relay module |
7L |
| N69/1 |
Left door control unit |
4A |
| N69/1 |
Left door control unit |
12A |
| N69/1 |
Left door control unit |
19A |
| N69/1 |
Left door control unit |
28A |
| N69/1 |
Left door control unit |
36A |
| N69/1 |
Left door control unit |
53A |
| N69/1 |
Left door control unit |
44A |
| S20/1 |
Driver power window, outside mirror and trunk lid switch group |
35L |
| S20/1s1 |
Left front power window switch |
36K |
| S20/1s10 |
Left/right outside mirror adjustment selection switch |
35K |
| S20/1s12 |
Outside mirror adjustment rocker switch |
34J |
| S20/1s2 |
Right front power window switch |
36J |
| S20/1s3 |
Left rear power window switch |
36K |
| S20/1s4 |
Right rear power window switch |
36J |
| S20/1s5 |
Rear side windows child safety lock switch |
37K |
| S20/1s6 |
Trunk lid open/close switch |
37J |
| S20/1s9 |
Outside mirror fold-in/fold-out switch |
35J |
| S21/2 |
Front passenger power window switch |
40L |

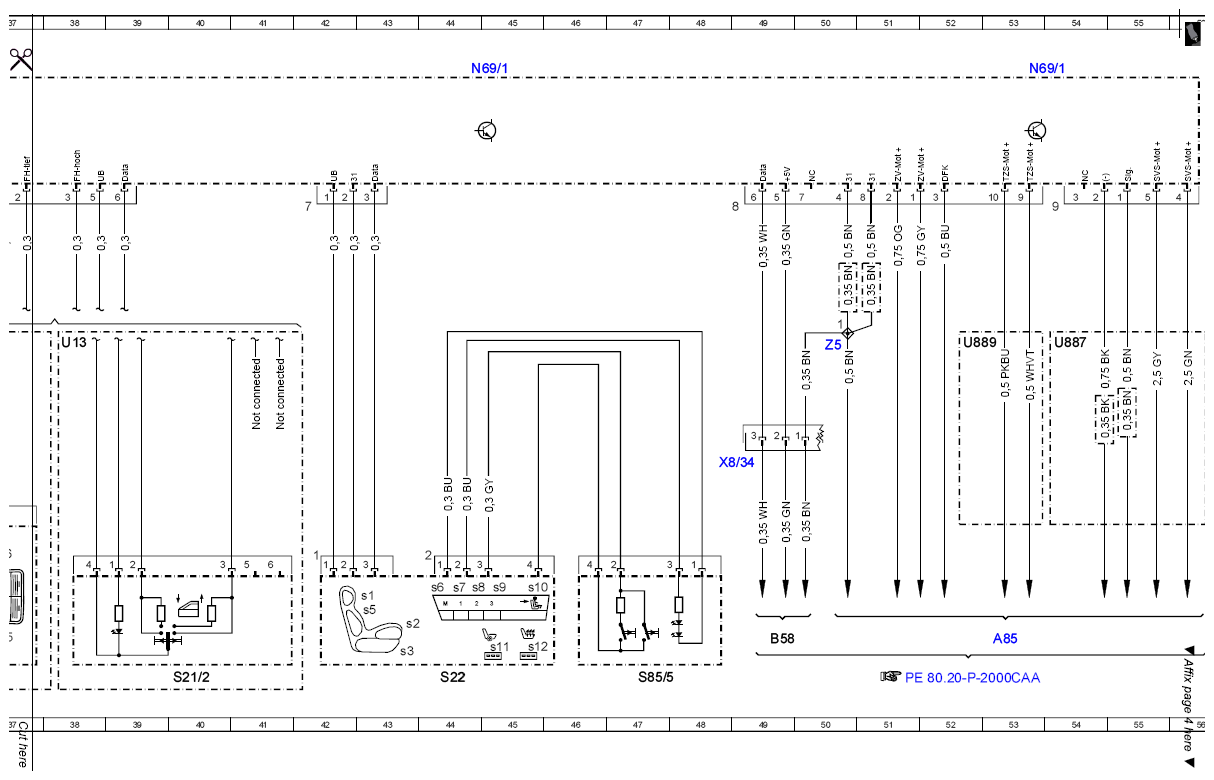

| S22 |
Left front seat operation switch group |
44L |
| S22s1 |
Head restraint adjustment switch |
43K |
| S22s10 |
Left or right seat adjustment selection switch |
45J |
| S22s11 |
Seat ventilation switch |
45K |
| S22s12 |
Heated seat switch |
45K |
| S22s2 |
Seat cushion fore/aft switch |
43K |
| S22s3 |
Fore/aft, height and inclination adjustment switch |
43L |
| S22s5 |
Backrest switch |
43K |
| S22s6 |
Memory switch |
44J |
| S22s7 |
Memory 1 switch |
44J |
| S22s8 |
Memory 2 switch |
44J |
| S22s9 |
Memory 3 switch |
45J |
| S85/5 |
Left interior CL [ZV] switch |
47L |
| U12 |
Valid for left-hand drive vehicles |
7E |
| U12 |
Valid for left-hand drive vehicles |
33F |
| U13 |
Valid for right-hand drive vehicles |
38F |
| U177 |
Not valid for ambiance illumination |
24F |
| U177 |
Not valid for ambiance illumination |
27F |
| U884 |
Valid for ambiance illumination |
22F |
| U884 |
Valid for ambiance illumination |
29F |
| U887 |
Valid for power closing |
54F |
| U889 |
Valid for additional door lock |
52F |
| W34/1 |
Ground (electronics - left footwell) |
2H |
| X157/7 |
Left door trim strip illumination separating point |
29G |
| X157/7 |
Left door trim strip illumination separating point |
31G |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
3L |
| X8/34 |
Left door handle connector |
49G |
| Z5 |
Connector sleeve (solder connector in harness) |
50F |
