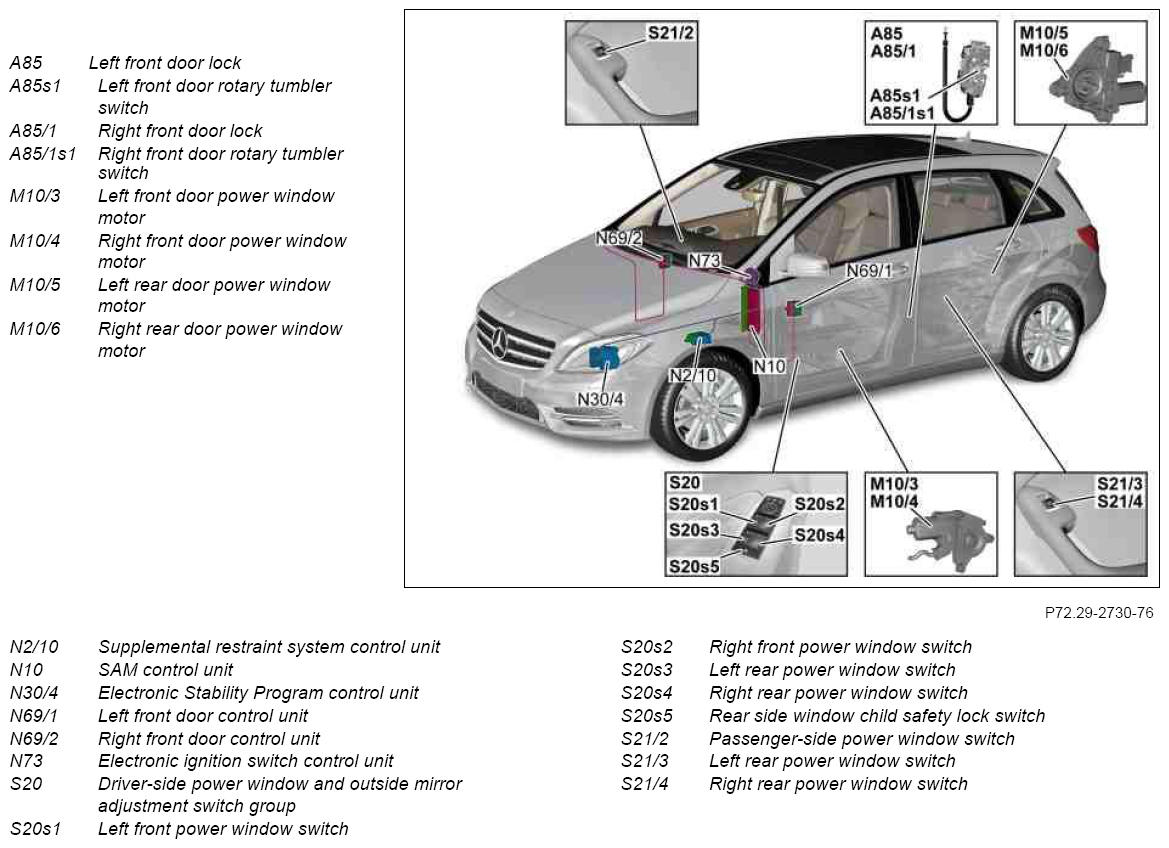

Overview of system components for power windows (PW) - GF72.29-P-9997KN
MODEL 246
Shows model 246
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080KN |
| SAM control unit, component description | N10 | GF54.21-P-4157KN |
| Electronic Stability Program control unit, component description | N30/4 | GF42.45-P-5119KN |
| Left front door control unit, component description | N69/1 | GF72.29-P-6001KN |
| Right front door control unit, component description | N69/2 | GF72.29-P-6009KN |
| Electronic ignition lock control unit, component description | N73 | GF80.57-P-6001KN |
| Table of contents, function description for power windows (PW) | GF72.29-P-0998KN |
