Entertainment, Lighting & Navigation -- Cl550 -- 216 Chassis
>>
Basic Knowledge
>>
Wiper system (WSA), location of components - GF82.30-P-0003-01LA
Wiper system (WSA), location of components - GF82.30-P-0003-01LA

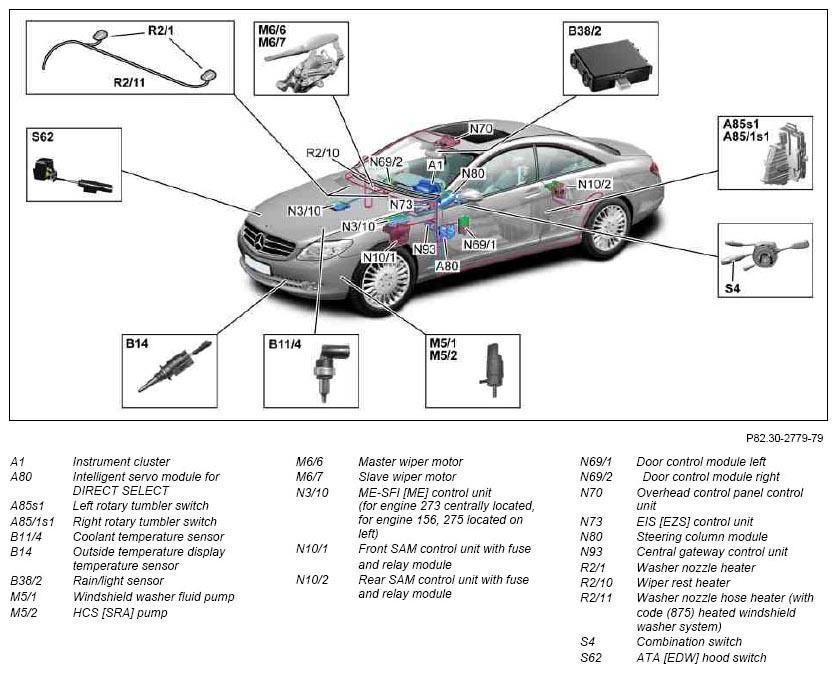

Fig 1: Identifying Wiper System (WSA) Components Location
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
