Mobile phone system, location of components - GF82.70-P-0007-01LA

Vehicles up to 31.5.09 with code (386) Preinstallation for telephone "Cell phone", UPCI [UHI] system

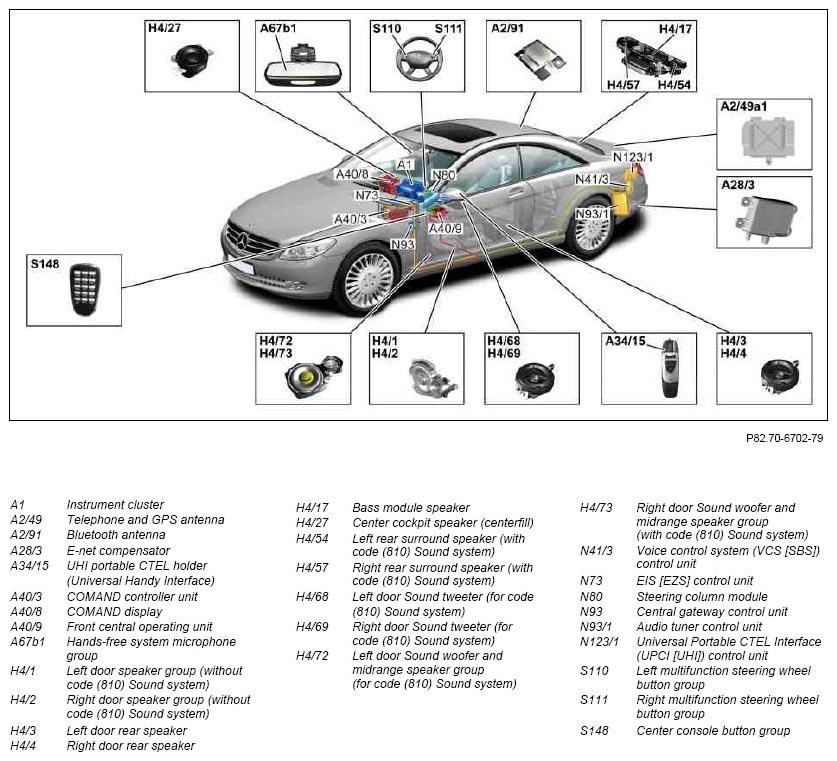

Fig 1: Identifying Mobile Phone System Components Location

Courtesy of MERCEDES-BENZ USA

Vehicles up to 31.5.09 with code (389) Mobile phone preinstallation with universal interface, USA/Canada

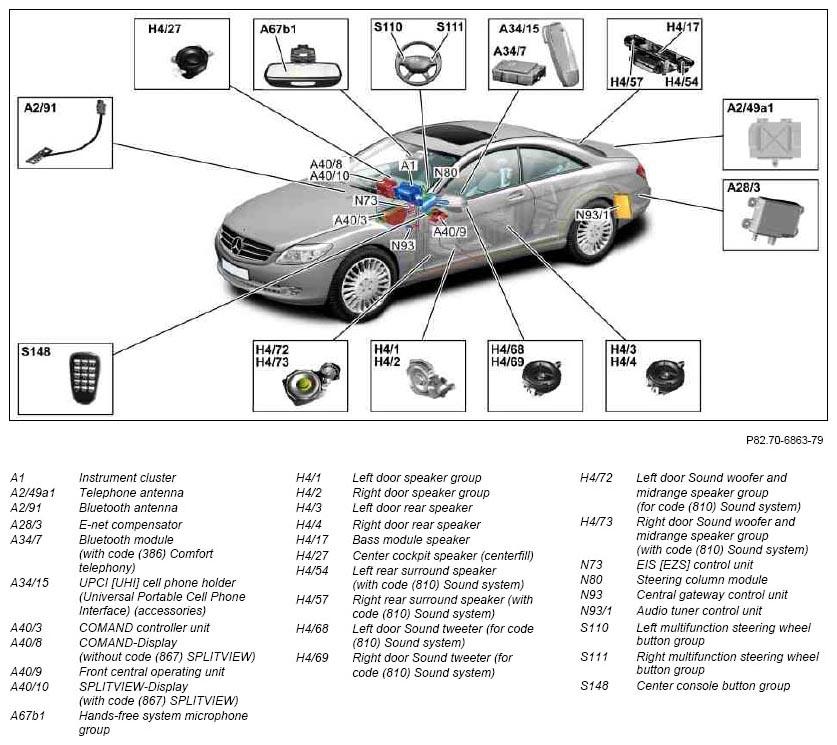

Fig 2: Identifying Mobile Phone System Components Location

Courtesy of MERCEDES-BENZ USA

Vehicles as of 1.6.09

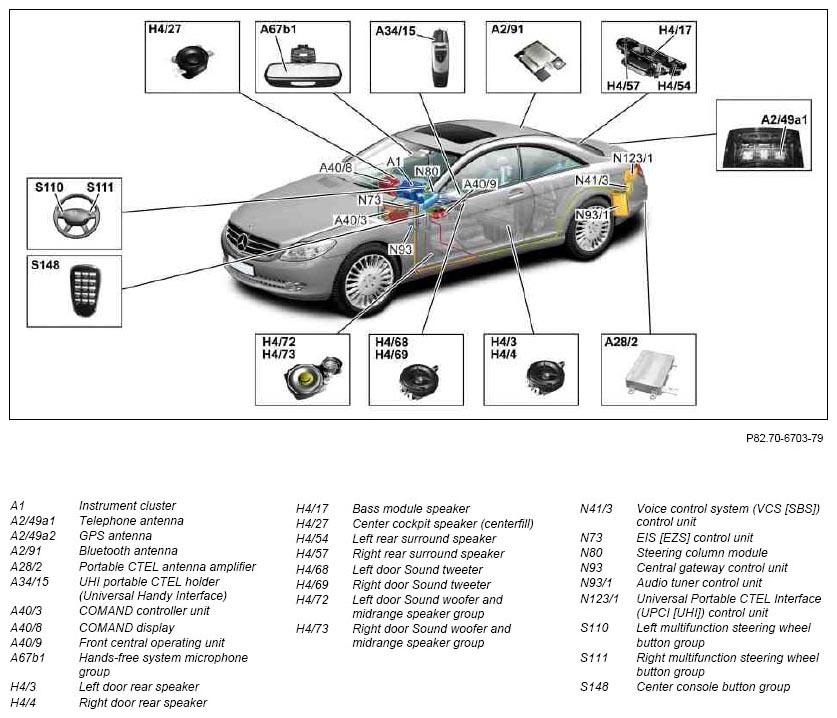

Fig 3: Identifying Mobile Phone System Components Location

Courtesy of MERCEDES-BENZ USA
