Mobile phone system, block diagram - GF82.70-P-0007-02LEJ

Shown on model 216

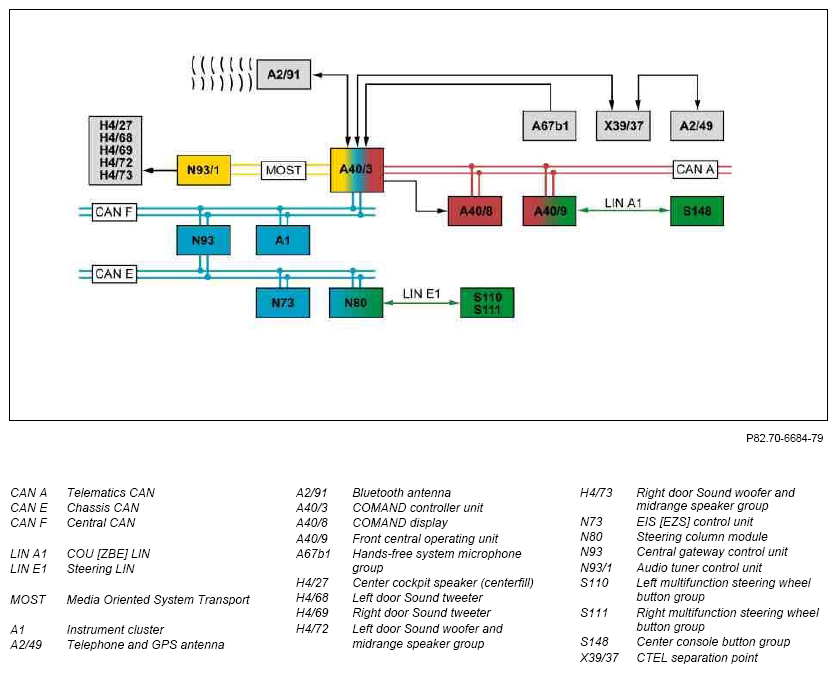

Fig 1: Identifying Mobile Phone System Block Diagram
G07642078Courtesy of MERCEDES-BENZ USA

Shown on model 221

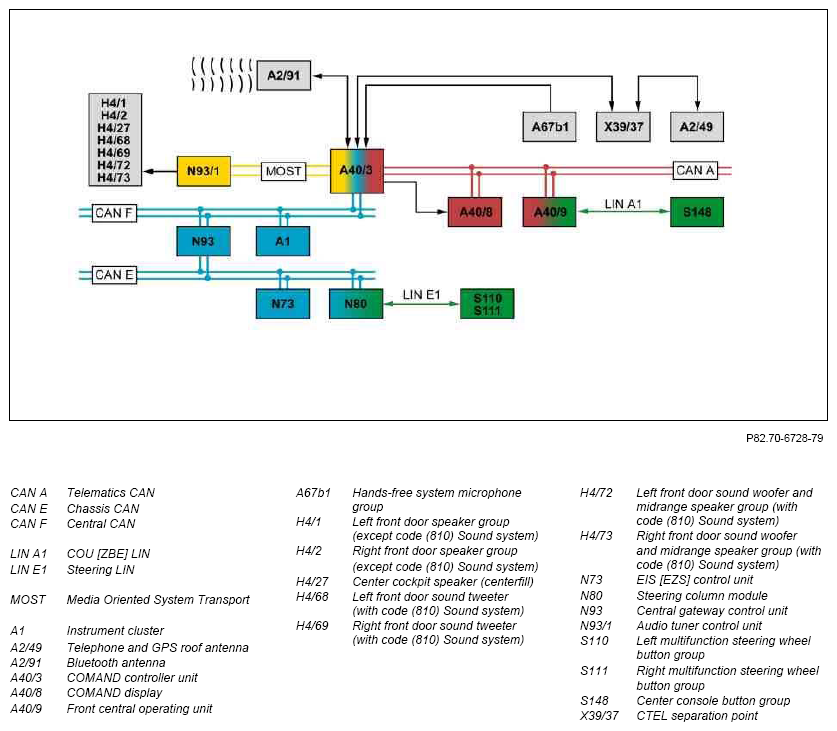

Fig 2: Identifying Mobile Phone System Block Diagram
G07642079Courtesy of MERCEDES-BENZ USA
