Media interface control unit, component description - GF82.60-P-5000LE
MODEL 216 with CODE (518) Media interface as of model year 2010 /YoM 09
MODEL 221 with CODE (518) Media interface as of model year 2010 /YoM 09 model refinement package
Shown on model 221

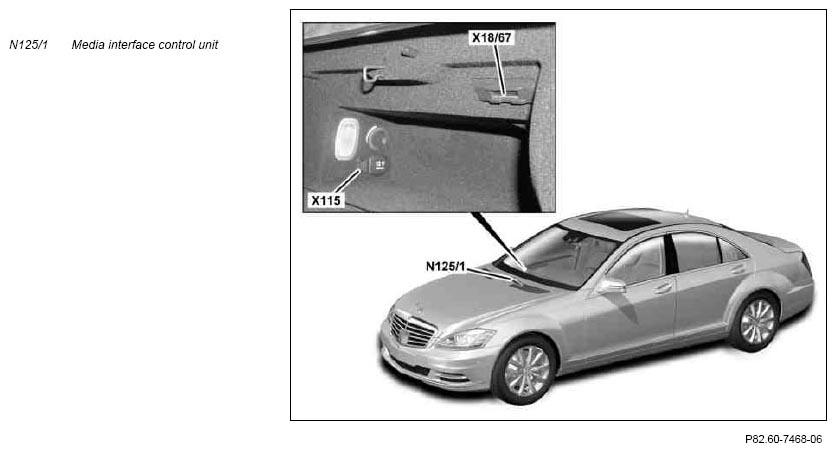

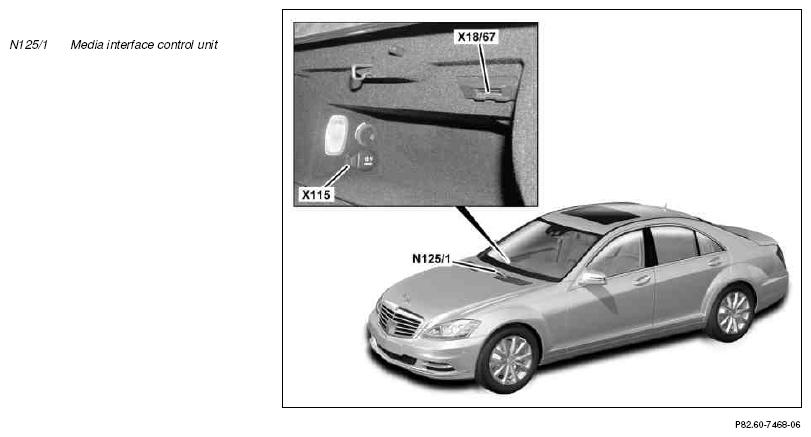

Location
The media interface control unit is located behind the glove box.
Task
The media interface control unit serves as universal unit connecting point to connect portable devices to the audio system. In this context, the media interface control unit has the following tasks:
- Reading in of signals
- Transmitting signals
Reading in of signals
Signals are read in via the following connections:
- Direct lines
- Media Oriented System Transport (MOST)
Direct lines
The following signals are read in via direct lines:
- Audio signals and data over media interface connector (X18/70)
- Electronic wake-up for MOST
MOST
The following signals are read in via MOST:
- Control and operating signals from COMAND control unit (A40/3)
Transmitting signals
The signals are transmitted via the following connections:
- Direct line
- MOST
Direct line
The media interface control unit transmits the control and operating signals via the media interface connector to the connected portable devices.
MOST
The media interface control unit transmits the control and operating signals to the COMAND control unit via MOST.
| Wiring diagram for media interface control unit | Model 216 | PE82.60-P-2105-99CAA | |
| Model 221 | PE82.60-P-2105-99SAA |
