Interior illumination (IBL), location of components - GF82.20-P-0002-01LE

Shown on model 221.0

Manual interior illumination

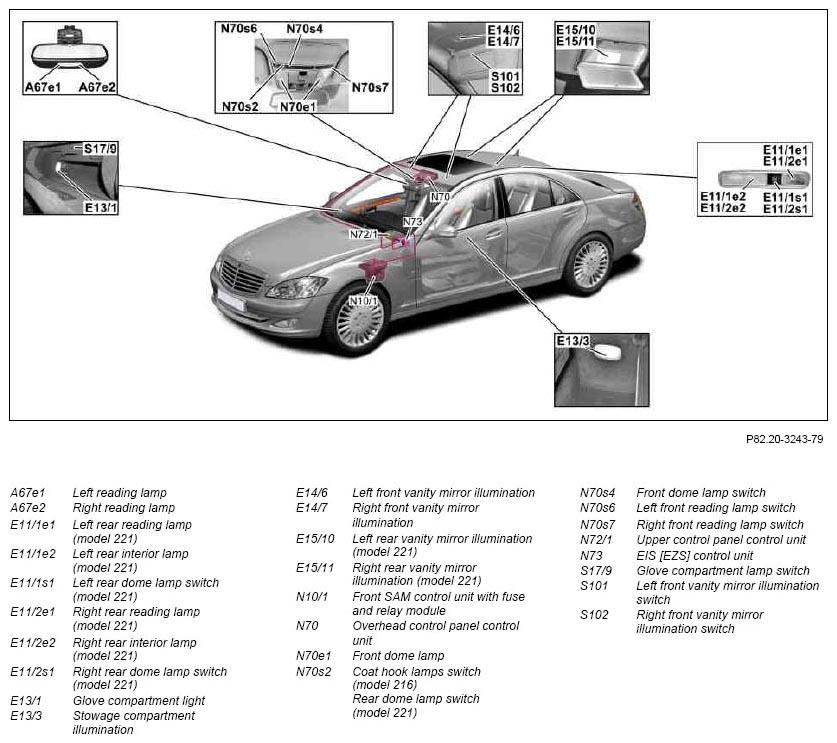

Fig 1: Identifying Interior Illumination (IBL) Components Location - Manual Interior Illumination

Courtesy of MERCEDES-BENZ USA

Automatic interior illumination

Shown on model 221

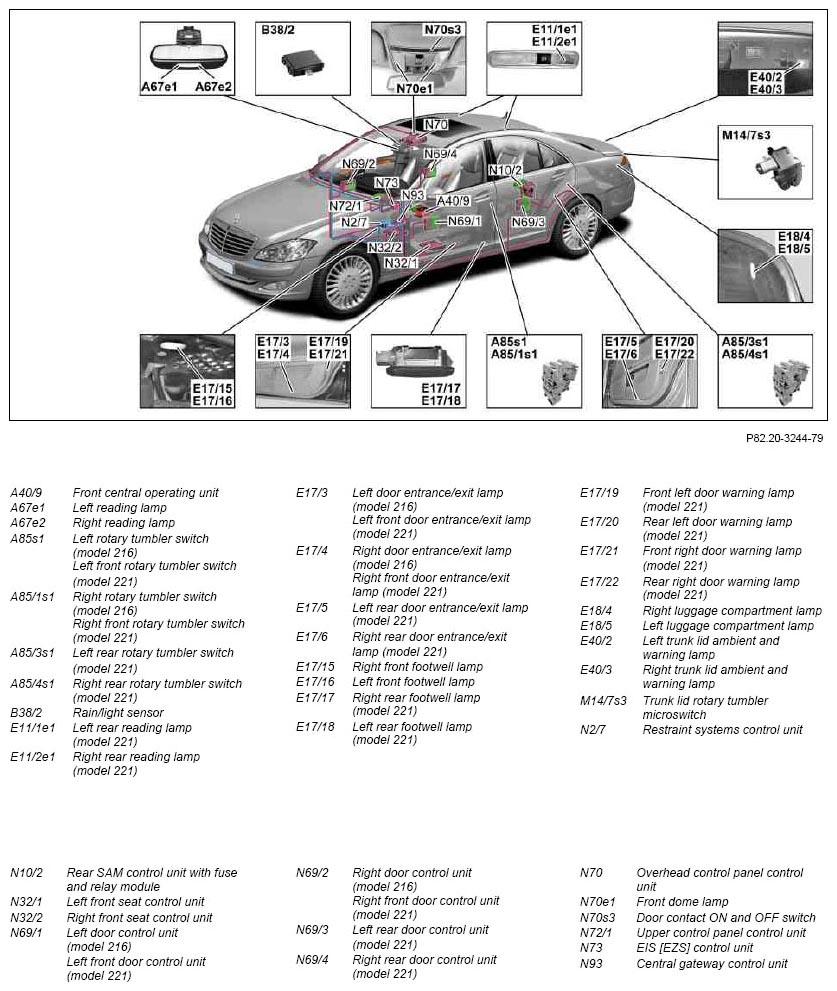

Fig 2: Identifying Interior Illumination (IBL) Components Location - Automatic Interior Illumination

Courtesy of MERCEDES-BENZ USA

Symbol and ambiance illumination

Shown on model 221 without code (882)

Interior monitoring (with ATA only)

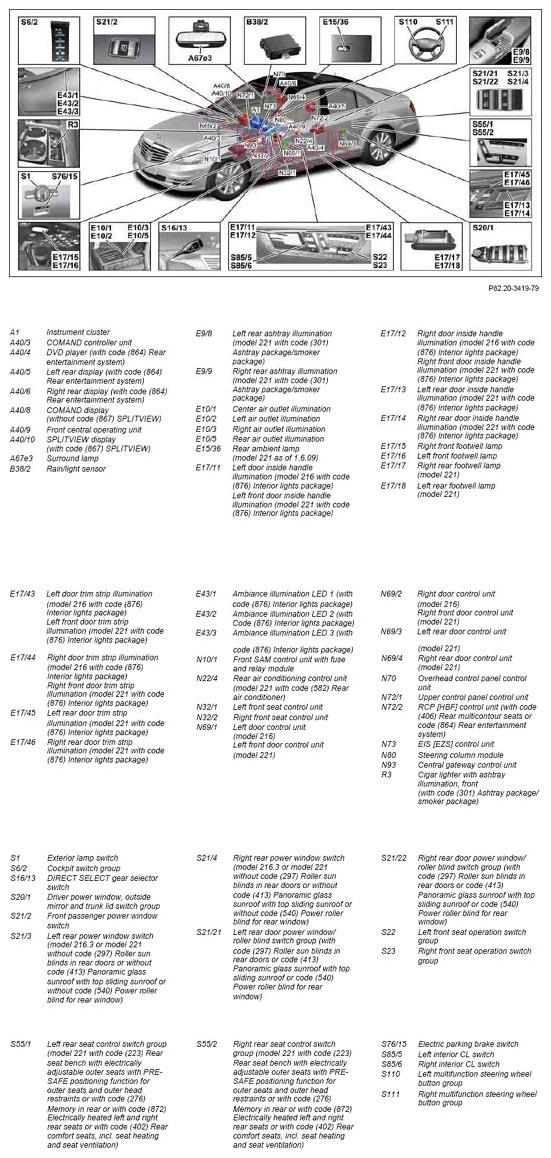

Fig 3: Identifying Interior Illumination (IBL) Components Location - Symbol And Ambiance Illumination

Courtesy of MERCEDES-BENZ USA
