Exterior lights, location of components - GF82.10-P-0003-02SX

Shown on model 221.0 without code (487)

Active Body Control (ABC)

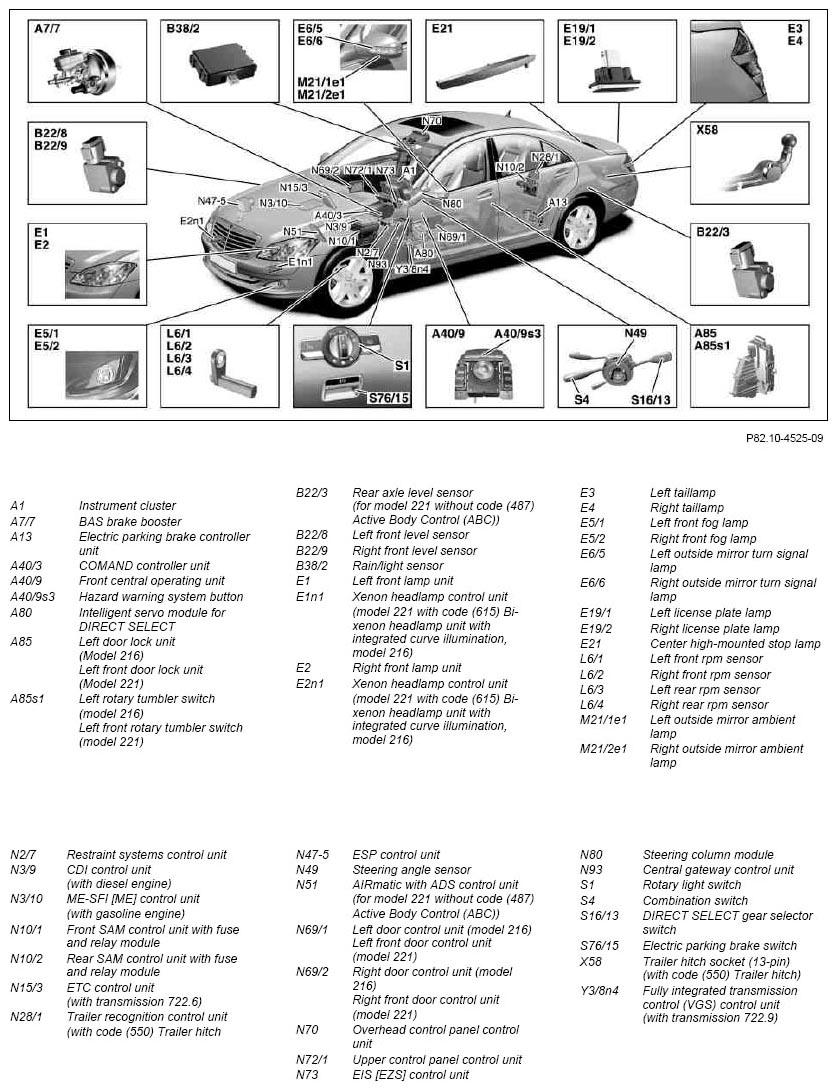

Fig 1: Identifying Exterior Lights Components Location

Courtesy of MERCEDES-BENZ USA
