Component description for high definition tuner control unit - GF82.60-P-5005LEU
MODEL 216 with CODE (517) HD Radio as of model year 2010 /YoM 09
MODEL 221 with CODE (517) HD Radio as of model year 2010 /YoM 09 model refinement package

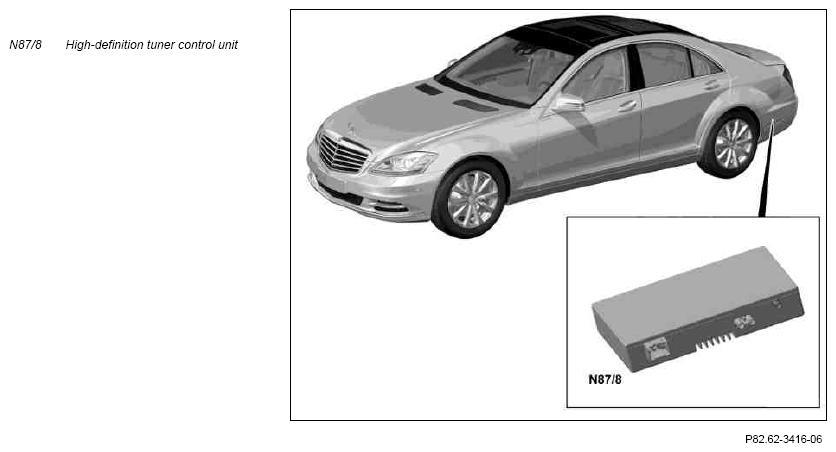

Shown on model 221
Location
The high definition tuner control unit is installed in the rear left trunk.
Task
The high definition tuner control unit has the following tasks:
- Reading in of signals
- Demodulating and decoding signals
- Transmit signals
Reading in of signals
Signals are read in via the following connection:
- Direct line
Direct line
The following signals are read in via a direct line:
- Electronic wake-up for Media Oriented System Transport (MOST)
- FM and weatherband signals from antenna structure in rear window via rear window antenna amplifier module (A2/12)
- S-band satellite and S-band terrestrial signals from SDAR antenna (A2/82)
Demodulating and decoding signals
The high definition tuner control unit demodulates and decodes the following signals:
- Analog AM and FM signals via integrated double tuner
- Digital AM and FM signals using integrated HD radio decoder chips
- S band satellite and S-band terrestrial signals
Transmit signals
The signals are transmitted via the following connections:
- Direct lines
- MOST
Direct lines
The following signals are transmitted in via direct lines:
- Phantom voltage for rear window antenna amplifier module
- Phantom voltage for SDAR antenna
MOST
The following signals are transmitted via MOST:
- Audio and data signals to the COMAND controller unit (A40/3)
- Audio signals to the audio tuner control unit (N93/1) or the digital sound processor (A2/69) (model 221 as of 1.9.2010 with code (811) Advanced Sound System)
- Data signals (e.g. frequency, station name, artist) to COMAND controller unit
- Traffic data signals to navigation unit integrated into the COMAND control unit
| Wiring diagram for high definition tuner control unit | Model 216 | PE82.60-P-2303-97CAA | |
| Wiring diagram for high definition tuner control unit | Model 221 | PE82.60-P-2303-97SAA |
