Block diagram of exterior lights - GF82.10-P-0003-03LEA

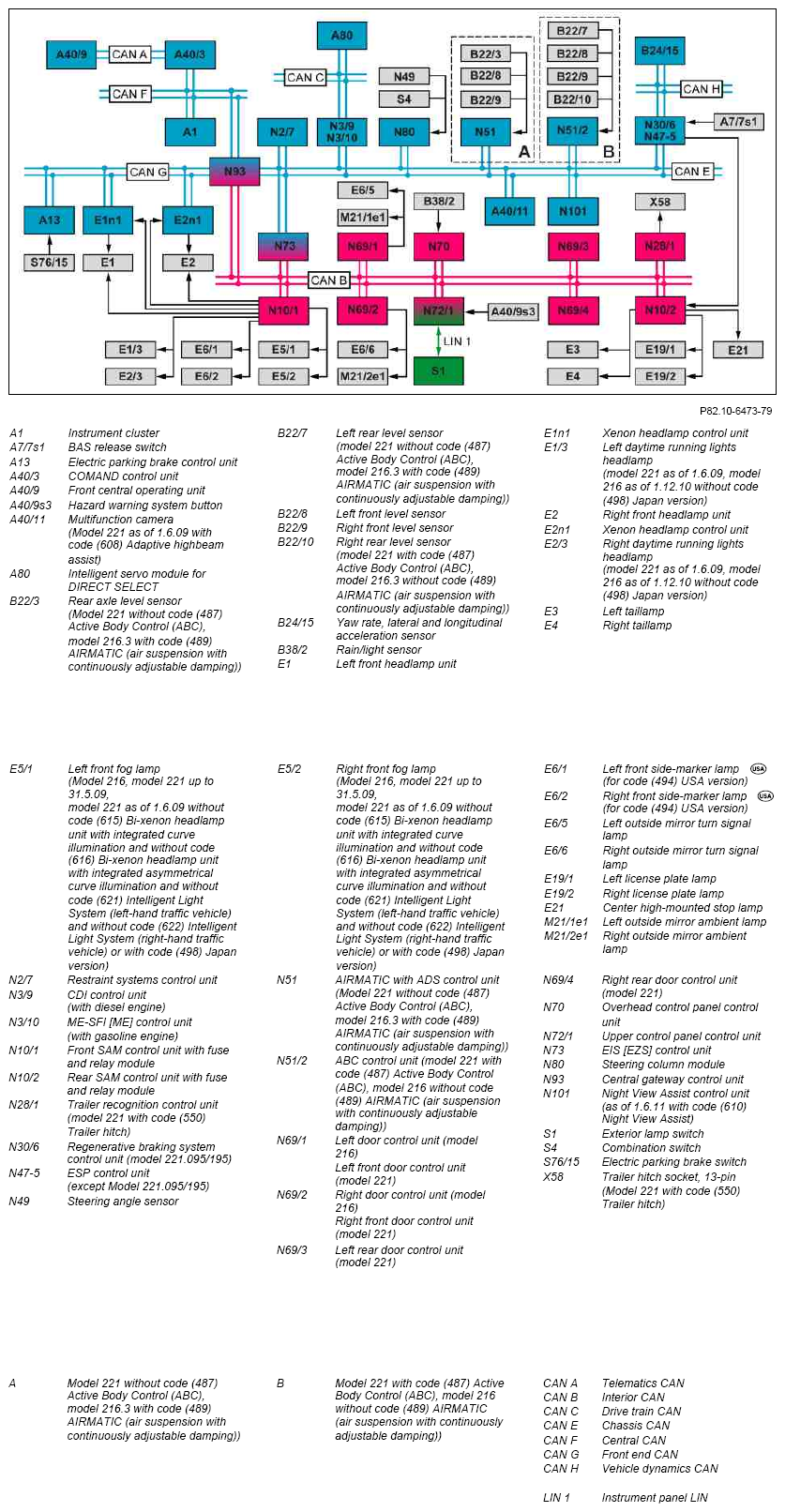

Fig 1: Identifying Block Diagram Of Exterior Lights

G07641943

Courtesy of MERCEDES-BENZ USA
