Block diagram for interior illumination (IBL) - GF82.20-P-0002-04SX

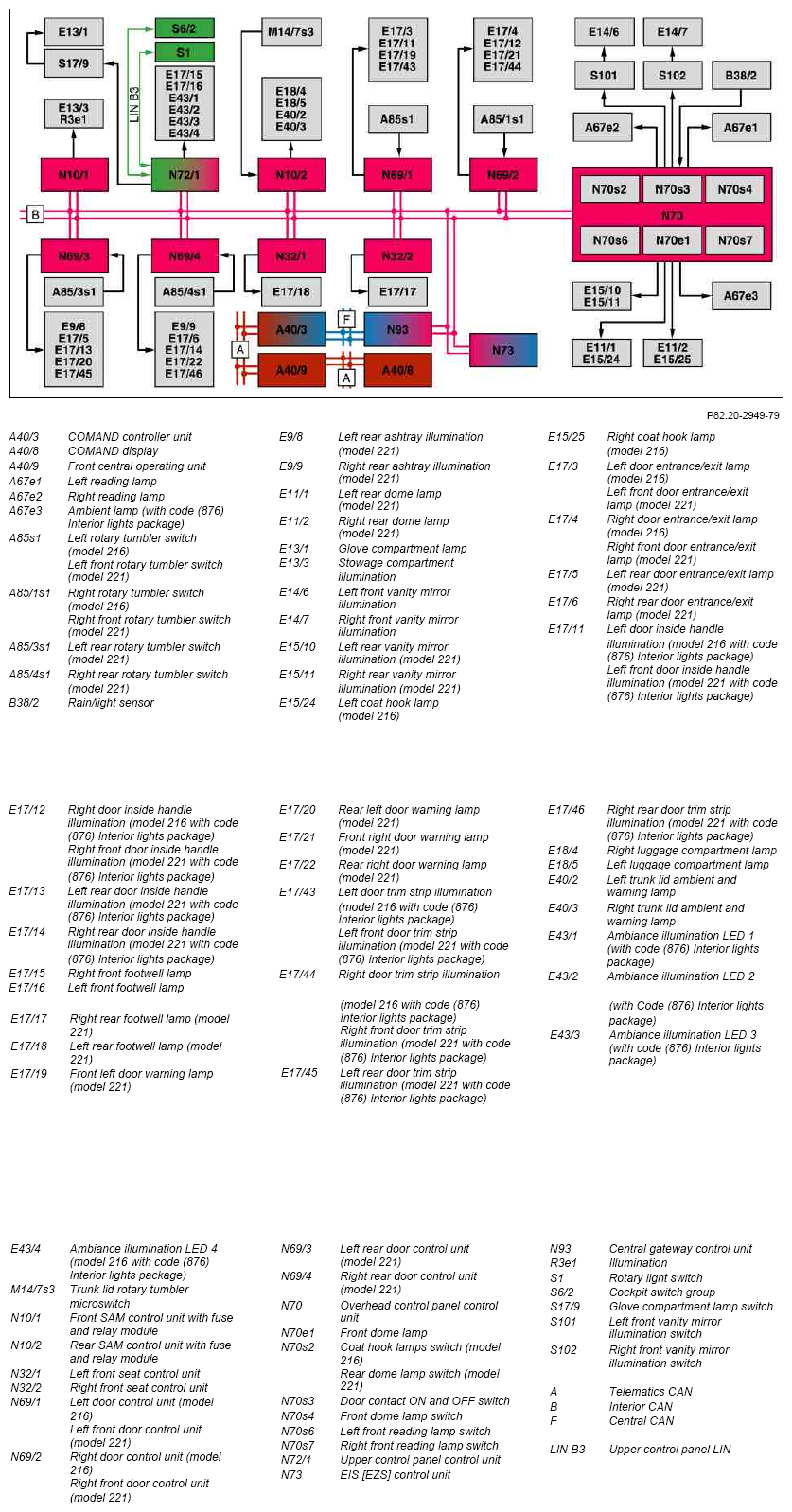

Fig 1: Identifying Block Diagram For Interior Illumination (Interior, Door Entrance/Exit Ambiance Illumination)
G07641981Courtesy of MERCEDES-BENZ USA
