Audio tuner control unit, component description - GF82.62-P-3132LE

MODEL 216, 221 except CODE (810) Sound system as of model year 2009 /YoM 08

MODEL 221 except CODE (810) Sound system except CODE (811) Advanced sound system as of model year 2011 /YoM 10

Shown on model 221

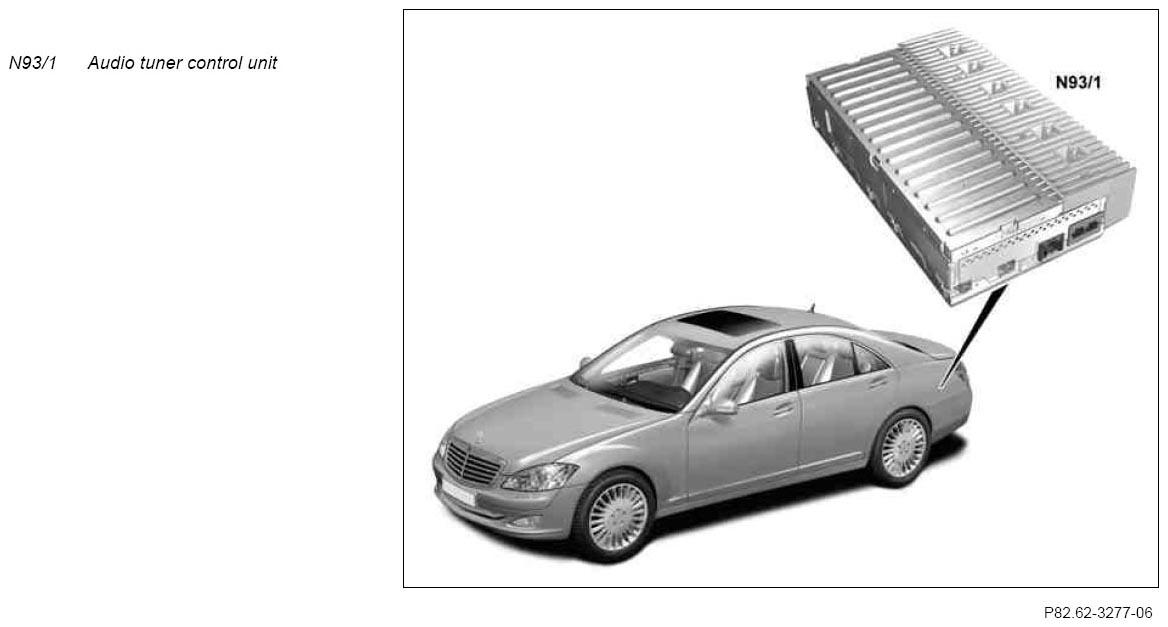

Location

The audio tuner control unit is located on the left of the trunk.

Task

The audio tuner control unit administers all audio sources integrated in the vehicle (e.g. radio tuner) and processes their audio signals.

The audio tuner control unit does the following:

• Reading in of signals
• Processing signals
• Transmit signals
• Actuation of components

Reading in of signals

Signals are read in via the following connections:

• Direct line
• Media Oriented System Transport (MOST)

Direct line

The following signals are read in via direct lines:

• MUTE
• Wake-Up
• Antenna signals from the rear window antenna amplifier module (A2/12)

MOST

Audio signals are read in over the MOST by the following control units:

• COMAND controller unit (A40/3)
• UPCI [UHI] (Universal Portable Cell Phone Interface) control unit (N123/1) (up to 31.5.09 with code (386) Preinstallation for telephone "Cell phone", UPCI [UHI] system)
• Voice control system (VCS [SBS]) control unit (N41/3) (up to 31.5.09 with code (813) Voice control system (VCS [SBS]))
• Digital Audio Broadcasting control unit (N87/3) (with code (537) Digital radio)
• SDAR control unit (N87/5) (up to 31.5.09 with code (536) SIRIUS satellite radio)
• High definition tuner control unit (N87/8) (with code (517) HD radio)

Processing signals

The audio tuner control unit processes the following signals:

• Copy-protected audio signals
• DVD audio signals
• Radio signals
• Vehicle speed signal for speed-dependent volume control (SDV [GAL])

Transmit signals

The signals are transmitted via the following connections:

• MOST

MOST

The following signals are transmitted via MOST:

• Traffic messages to COMAND controller unit

Actuation of components

Components are actuated with the following connection:

• Direct line

Direct line

The following components are actuated via direct lines:

• Model 216:
  • Left door speaker group (H4/1)
  • Right door speaker group (H4/2)
  • Left door rear speaker (H4/3)
  • Right door rear speaker (H4/4)
  • Bass box speaker (H4/17)
  • Center cockpit speaker (centerfill) (H4/27)
• Model 221:
  • Left front door speaker group (H4/1)
  • Right front door speaker group (H4/2)
  • Left rear door speaker group (H4/3)
  • Right rear door speaker group (H4/4)
  • Bass box speaker
  • Center cockpit speaker (centerfill)

Design

The following components are integrated in the audio tuner control unit:

• 2 radio receivers for reception of radio signals
• MOST interface
• Decoder for processing audio signals in DVD mode (audio or video DVD)
• Basic amplifier (audio signal output)

Diagnosis

The audio tuner control unit has its own fault memory. All faults that occur during operation are stored there.

On request, all the diagnostic data are forwarded to the COMAND controller unit via MOST.

The diagnostic data are forwarded via the central CAN (CAN F) to the central gateway control unit (N93) where they can be read out via the data link connector (X11/4).

The audio tuner control unit can be configured through diagnosis.

The following can be selected:

• Frequency bands
• Volume increase for incoming traffic messages
• Switch-off time for circuit 15 OFF

	Wiring diagram for radio (RD) control unit	Model 216	PE82.60-P-2101-97CAA
		Model 221	PE82.60-P-2101-97SAA
