| A0 |
Explanation of color codes |
23L |

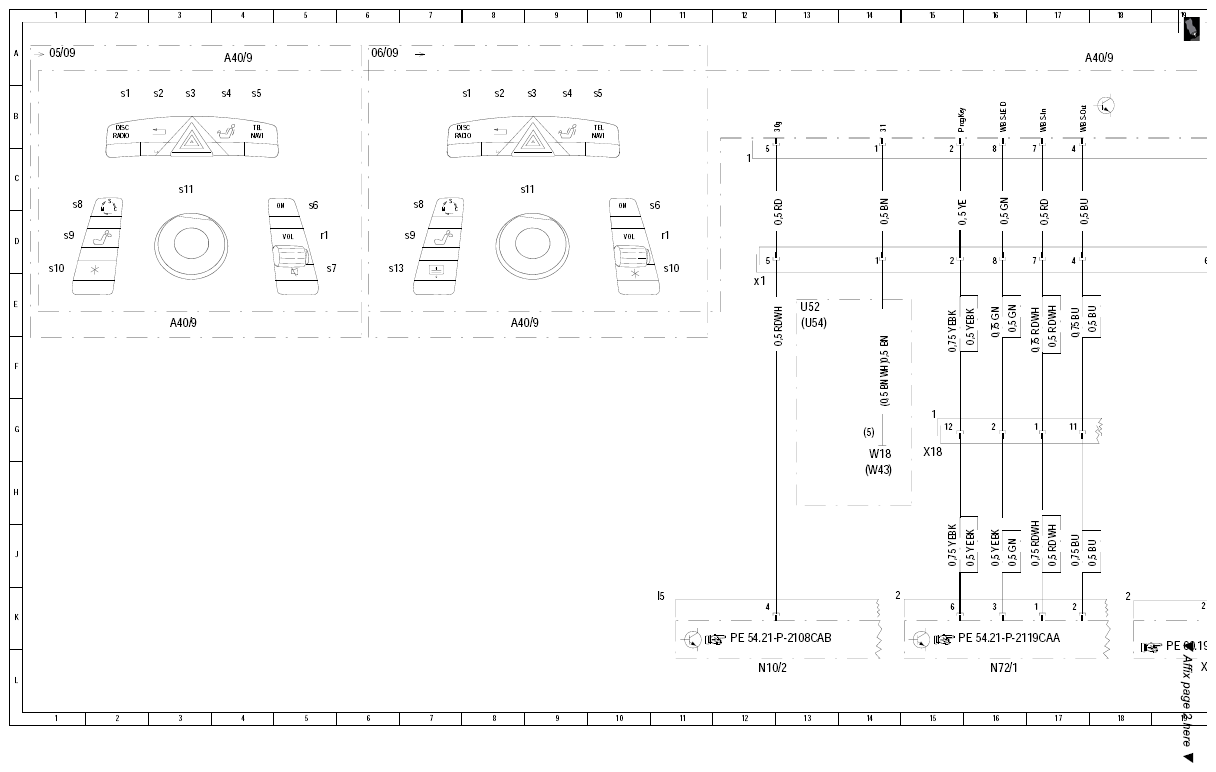

| A40/9 |
Front central operating unit |
3E |
| A40/9 |
Front central operating unit |
4A |
| A40/9 |
Front central operating unit |
12A |
| A40/9r1 |
Volume control |
5D |
| A40/9s1 |
Disc/radio quick select button |
2B |
| A40/9s10 |
Freely programmable button |
1E |
| A40/9s11 |
Turn/push control |
3C |
| A40/9s2 |
Button "Back" |
2B |
| A40/9s3 |
Hazard warning system button |
3B |
| A40/9s4 |
Multicontour seat quick select button |
3B |
| A40/9s5 |
Telephone/navigation quick select button |
4B |
| A40/9s6 |
Button "ON" |
5D |
| A40/9s7 |
Mute button |
5E |
| A40/9s8 |
Transmission modes button |
1D |
| A40/9s9 |
Head restraint folding button |
1D |
| A40/9x1 |
Front central operating unit connector |
6E |
| N10/2 |
Rear SAM control module with fuse and relay module |
7L |

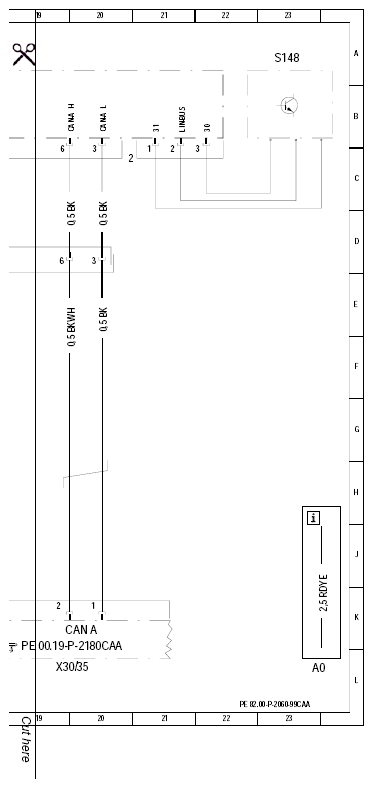

| N72/1 |
Upper control panel control module |
10L |
| S148 |
Center console button group |
17A |
| W18 |
Ground (left front seat crossmember) |
8H |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
9H |
| X30/35 |
Telematics CAN voltage distributor connector |
14L |
