| A0 |
Explanation of color codes |
31L |
| F32 |
Front prefuse |
2L |
| F32f6 |
Fuse 6 |
1K |
| M5/1 |

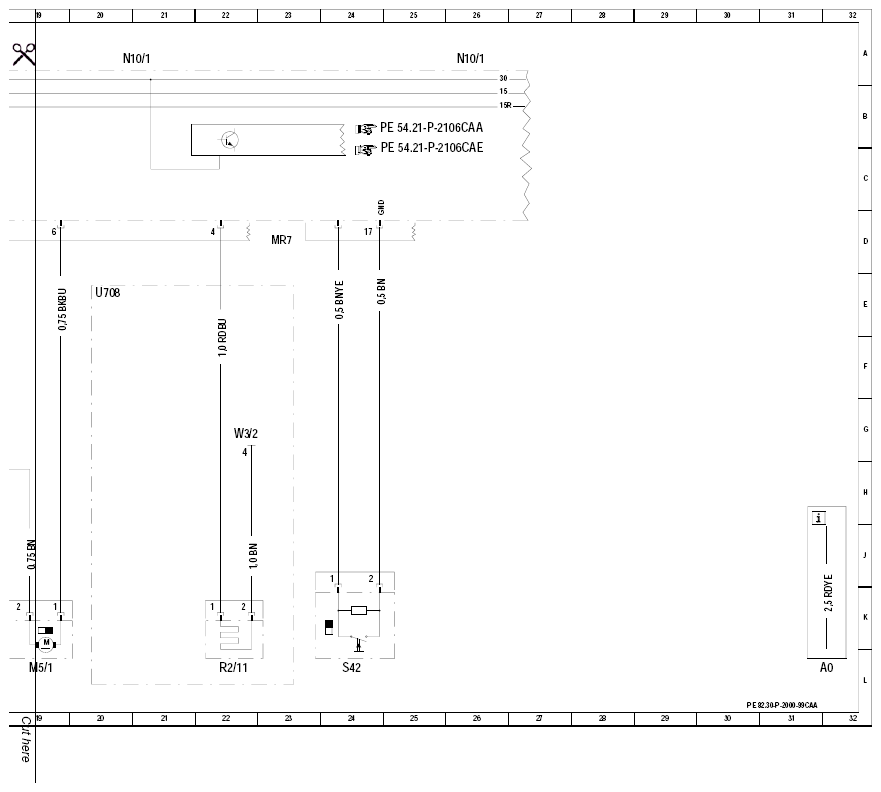

Windshield washer fluid pump |
18L |
| M5/2 |
HCS pump |
16L |
| M6/6 |

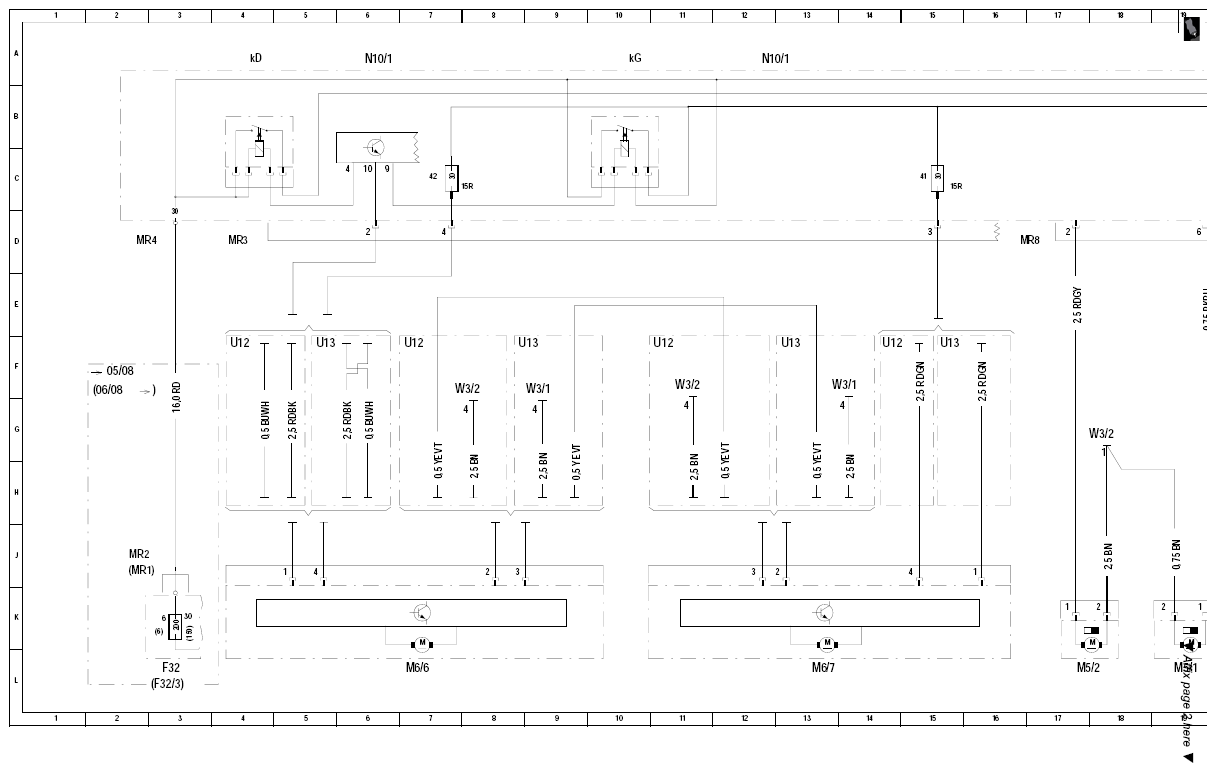

Master wiper motor |
6L |
| M6/7 |
Slave wiper motor |
12L |
| N10/1 |
Front SAM control module with fuse and relay module |
5A |
| N10/1 |
Front SAM control module with fuse and relay module |
11A |
| N10/1 |
Front SAM control module with fuse and relay module |
19A |
| N10/1 |
Front SAM control module with fuse and relay module |
25A |
| N10/1f41 |
Fuse 41 |
14C |
| N10/1f42 |
Fuse 42 |
6C |
| N10/1kD |
Circuit 15 relay |
3A |
| N10/1kG |
Circuit 15R relay |
9A |
| R2/11 |
Washer nozzle hose heater |
19L |
| S42 |
Windshield washer fluid level indicator switch |
21L |
| U12 |
Valid for left-hand steering |
3F |
| U12 |
Valid for left-hand steering |
6F |
| U12 |
Valid for left-hand steering |
10F |
| U12 |
Valid for left-hand steering |
13F |
| U13 |
Valid for right-hand steering |
4F |
| U13 |
Valid for right-hand steering |
7F |
| U13 |
Valid for right-hand steering |
12F |
| U13 |
Valid for right-hand steering |
14F |
| W3/1 |
Ground (right front wheel well) |
7G |
| W3/1 |
Ground (right front wheel well) |
12F |
| W3/2 |
Ground (left front wheel well) |
6G |
| W3/2 |
Ground (left front wheel well) |
10F |
| W3/2 |
Ground (left front wheel well) |
16G |
| W3/2 |
Ground (left front wheel well) |
20G |
