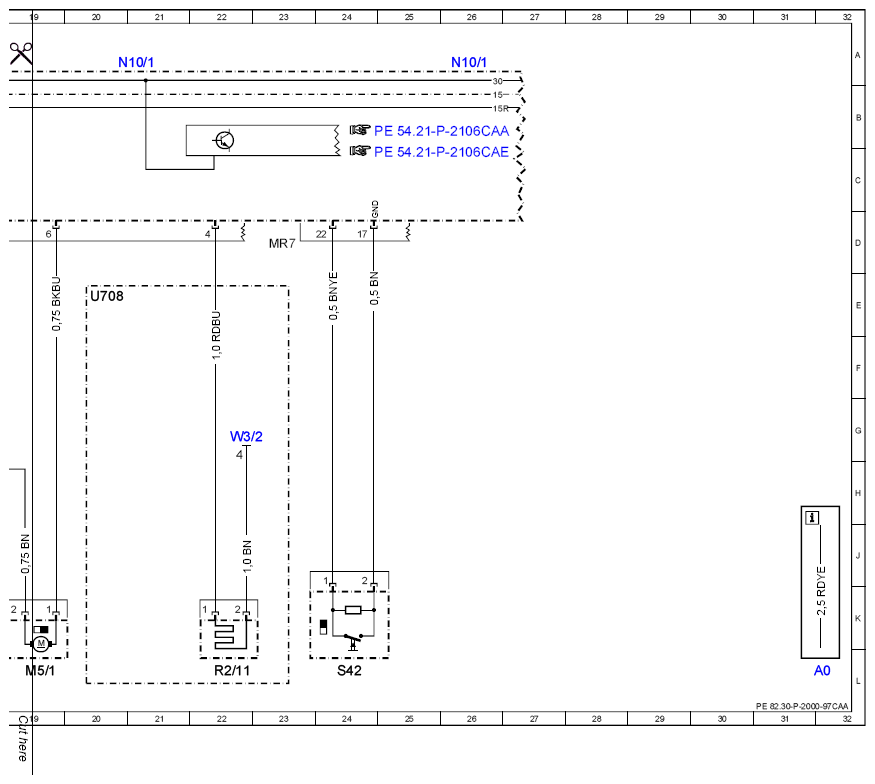

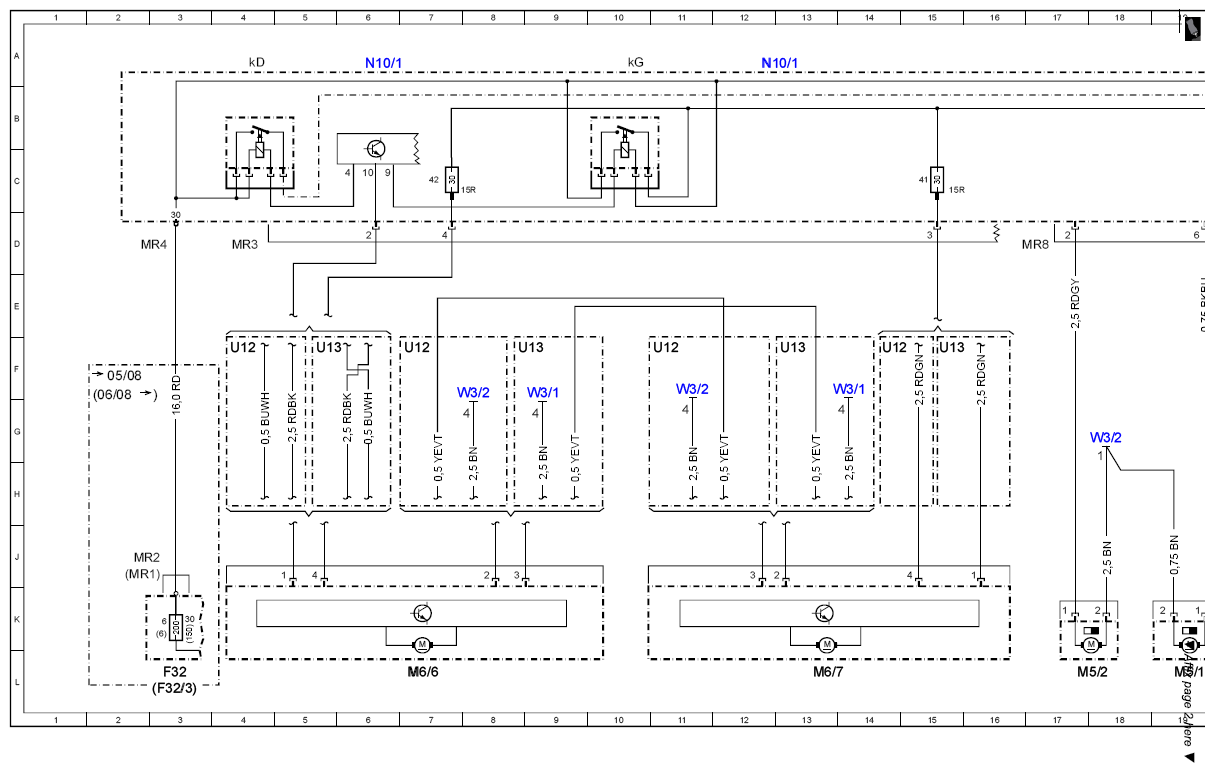

| A0 |
Color code key |
32L |
| F32 |
Front prefuse |
3L |
| F32/3 |
Engine compartment prefuse box |
3L |
| F32/3f6 |
Fuse 6 |
3K |
| F32f6 |
Fuse 6 |
3K |
| M5/1 |
Windshield washer fluid pump |
19L |
| M5/2 |
HCS [SRA] pump |
17L |
| M6/6 |
Master wiper motor |
7L |
| M6/7 |
Slave wiper motor |
13L |
| N10/1 |
Front SAM control unit with fuse and relay module |
6A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
26A |
| N10/1f41 |
Fuse 41 |
15C |
| N10/1f42 |
Fuse 42 |
7C |
| N10/1kD |
Circuit 15 (2)/spare 1 relay (changeover contact) |
4A |
| N10/1kG |
Circuit 15R relay |
10A |
| R2/11 |
Washer nozzle hose heater |
22L |
| S42 |
Windshield washer fluid level indicator switch |
24L |
| U12 |
Valid for left-hand drive vehicles |
7F |
| U12 |
Valid for left-hand drive vehicles |
4F |
| U12 |
Valid for left-hand drive vehicles |
11F |
| U12 |
Valid for left-hand drive vehicles |
14F |
| U13 |
Valid for right-hand drive vehicles |
5F |
| U13 |
Valid for right-hand drive vehicles |
8F |
| U13 |
Valid for right-hand drive vehicles |
13F |
| U13 |
Valid for right-hand drive vehicles |
15F |
| U708 |
Valid for washer nozzle hose heater |
20E |
| W3/1 |
Ground (right front wheelhouse) |
9F |
| W3/1 |
Ground (right front wheelhouse) |
14F |
| W3/2 |
Ground (left front wheelhouse) |
8F |
| W3/2 |
Ground (left front wheelhouse) |
11F |
| W3/2 |
Ground (left front wheelhouse) |
22G |
| W3/2 |
Ground (left front wheelhouse) |
18G |
