| A0 |
Explanation of color codes |
31L |

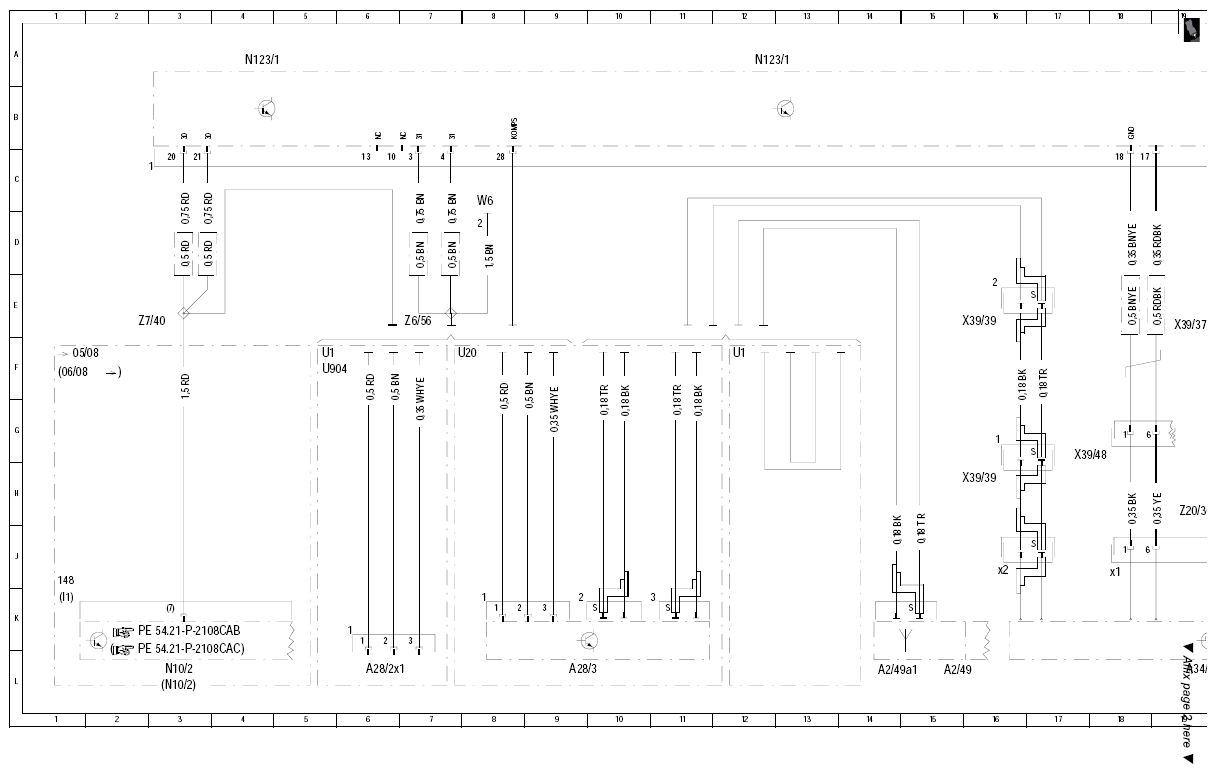

| A2/49 |
Telephone and GPS antenna |
15L |
| A2/49a1 |
CTEL antenna |
14L |
| A28/2x1 |
Portable CTEL antenna amplifier connector |
5L |
| A28/3 |
E-net compensator |
9L |
| A34/15 |
UHI portable CTEL holder (Universal Handy Interface) |
19L |
| A34/15x1 |
Connector 1, UPCI [UHI] portable CTEL holder (Universal Handy Interface) |
17J |
| A34/15x2 |
Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface) |
15J |
| A67b1 |
Hands-free system microphone group |
25L |
| A67b1x1 |
Hands-free system microphone group connector |
24H |
| N10/2 |
Rear SAM control module with fuse and relay module |
2L |

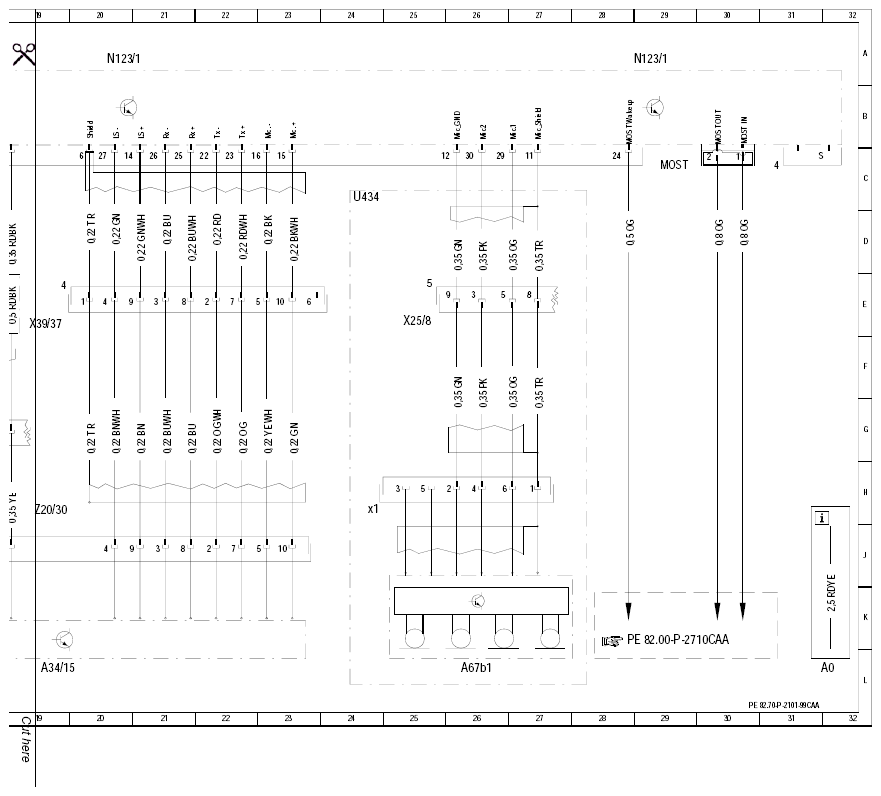

| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control module |
4A |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control module |
12A |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control module |
20A |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control module |
28A |
| U1 |
Valid for {{USA}} |
5F |
| U1 |
Valid for {{USA}} |
11F |
| U20 |
Valid for all except {{USA}}{{Japan}} |
7F |
| U434 |
Not valid for VCS [SBS] |
23C |
| U904 |
Wiring harness installed but nonfunctional |
5F |
| W6 |
Ground (left wheel well in trunk) |
7D |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
24E |
| X39/37 |
CTEL separation point |
18E |
| X39/39 |
Handy connector |
15H |
| X39/39 |
Handy connector |
15E |
| X39/48 |
Breakdown assistance/info button connector |
17H |
| Z20/30 |
Tracer wire connector sleeve |
18H |
| Z6/56 |
Circuit 31 connector sleeve |
6E |
| Z7/40 |
Circuit 30 connector sleeve |
2E |
