| A0 |
Explanation of color codes |
40A |

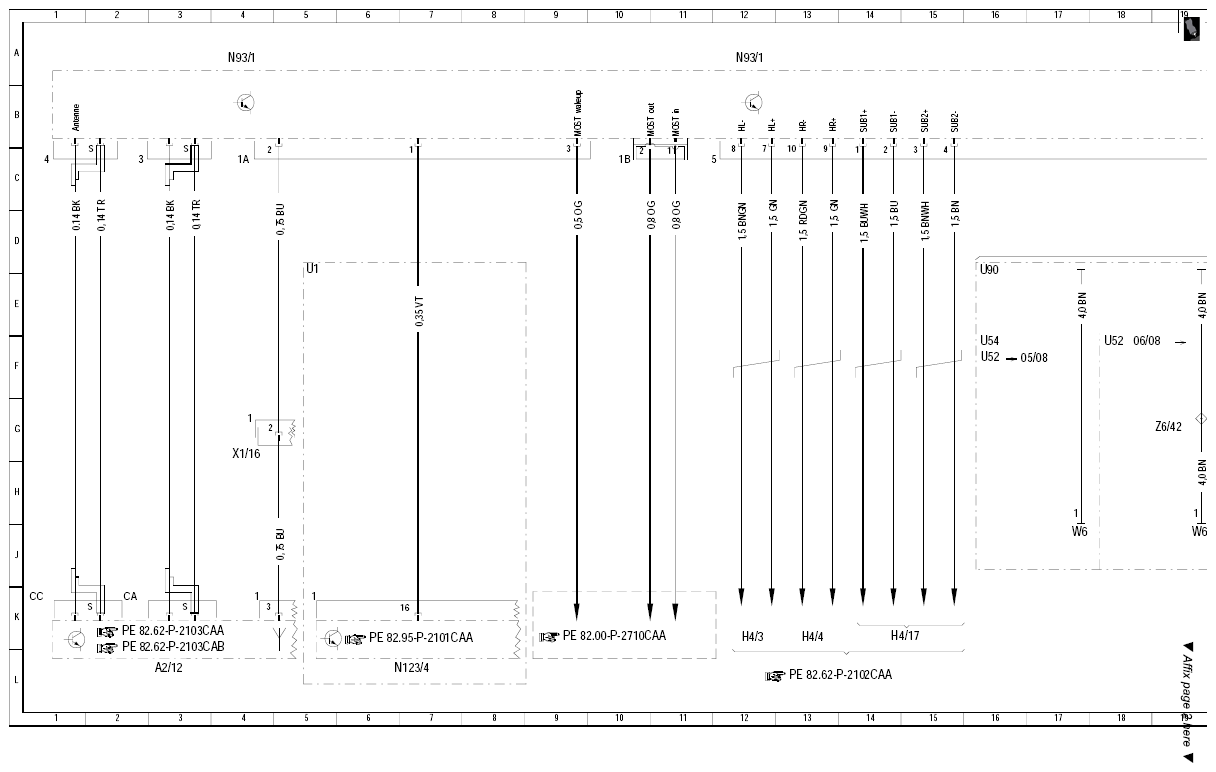

| A2/12 |
Rear window antenna amplifier module |
3L |

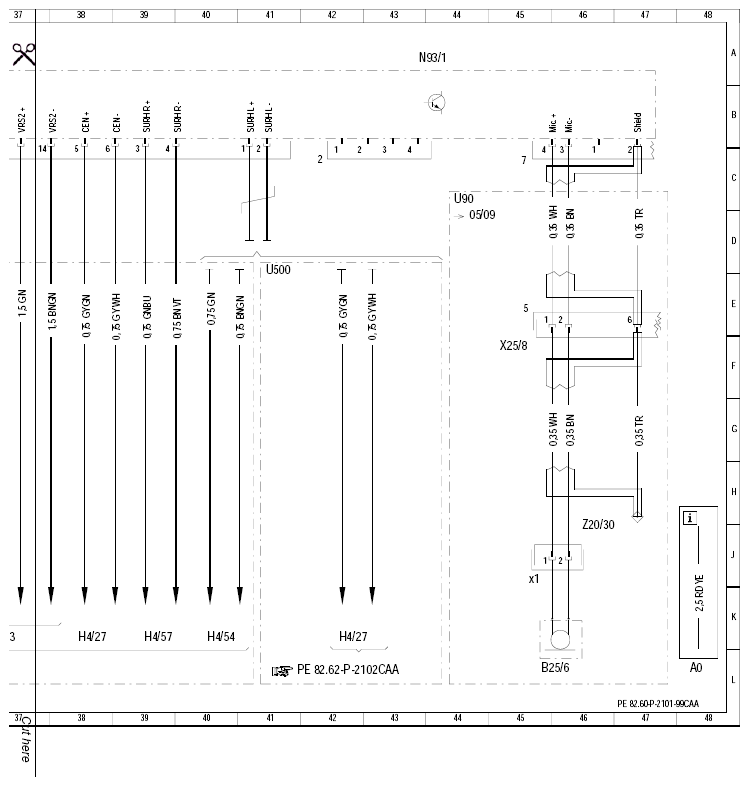

| B25/6 |
Sound amplifier microphone |
37L |
| B25/6x1 |
Sound amplifier microphone connector |
37K |

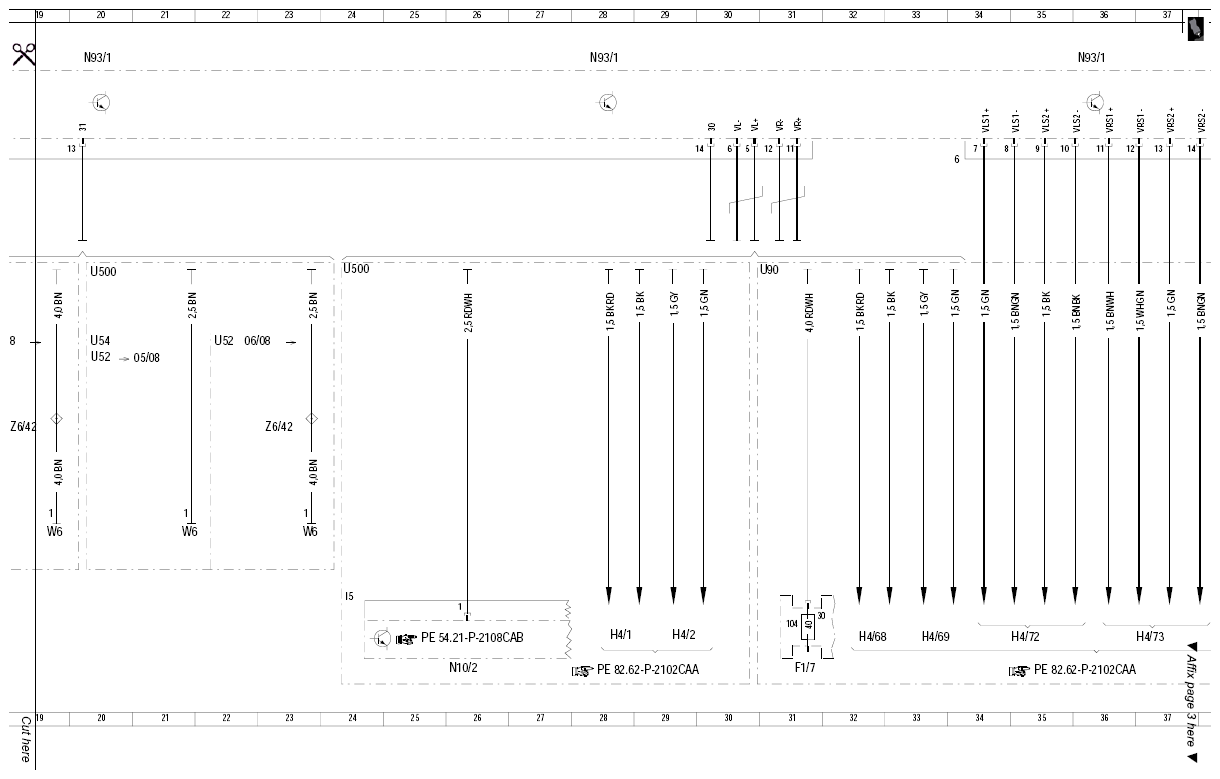

| F1/7 |
Left instrument panel fuse box |
23L |
| F1/7f104 |
Fuse 104 |
23K |
| H4/1 |
Left door speaker group |
20K |
| H4/17 |
Bass module loudspeaker |
14K |
| H4/2 |
Right door speaker group |
21K |
| H4/27 |
Center cockpit speaker (Centerfill) |
30K |
| H4/27 |
Center cockpit speaker (Centerfill) |
34K |
| H4/3 |
Left door rear speaker |
12K |
| H4/4 |
Right door rear speaker |
13K |
| H4/54 |
Left rear surround loudspeaker |
32K |
| H4/57 |
Right rear surround loudspeaker |
31K |
| H4/68 |
Left door Sound tweeter |
24K |
| H4/69 |
Right door Sound tweeter |
25K |
| H4/72 |
Left door Sound woofer and midrange speaker group |
27K |
| H4/73 |
Right door Sound woofer and midrange speaker group |
29K |
| N10/2 |
Rear SAM control module with fuse and relay module |
17L |
| N123/4 |
Emergency call system control unit |
6L |
| N93/1 |
Audio tuner control unit |
4A |
| N93/1 |
Audio tuner control unit |
12A |
| N93/1 |
Audio tuner control unit |
20A |
| N93/1 |
Audio tuner control unit |
27A |
| N93/1 |
Audio tuner control unit |
36A |
| U1 |
Valid for {{USA}} |
5E |
| U500 |
Not valid for Sound System |
16E |
| U500 |
Not valid for Sound System |
33E |
| U90 |
Valid for Sound System |
23E |
| U90 |
Valid for Sound System |
36E |
| W6 |
Ground (left wheel well in trunk) |
19H |
| W6 |
Ground (left wheel well in trunk) |
24H |
| X1/16 |
Roof antenna connector |
4H |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
36F |
| Z20/30 |
Tracer wire connector sleeve |
38J |
