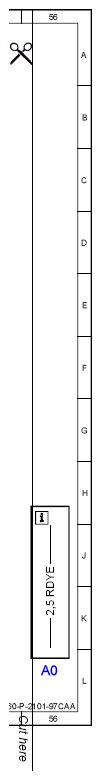

| A0 |
Color code key |
56L |
| A2/12 |
Rear window antenna amplifier module |
5L |
| B25/6 |
Sound amplifier microphone |
48L |
| B25/6x1 |
Sound amplifier microphone connector |
47J |
| F1/7 |
Left instrument panel fuse box |
33L |
| F1/7f104 |
Fuse 104 |
33K |
| H4/1 |
Left door speaker group |
30K |
| H4/17 |
Bass module speaker |
17K |
| H4/2 |
Right door speaker group |
31K |
| H4/27 |
Center cockpit speaker (centerfill) |
40K |
| H4/27 |
Center cockpit speaker (centerfill) |
44K |
| H4/3 |
Left door rear speaker |
14K |
| H4/4 |
Right door rear speaker |
15K |
| H4/54 |
Left rear surround speaker |
42K |
| H4/57 |
Right rear surround speaker |
41K |
| H4/68 |
Left door Sound tweeter |
34K |
| H4/69 |
Right door Sound tweeter |
35K |
| H4/72 |
Left door Sound woofer and midrange speaker group |
37K |
| H4/73 |
Right door Sound woofer and midrange speaker group |
39K |

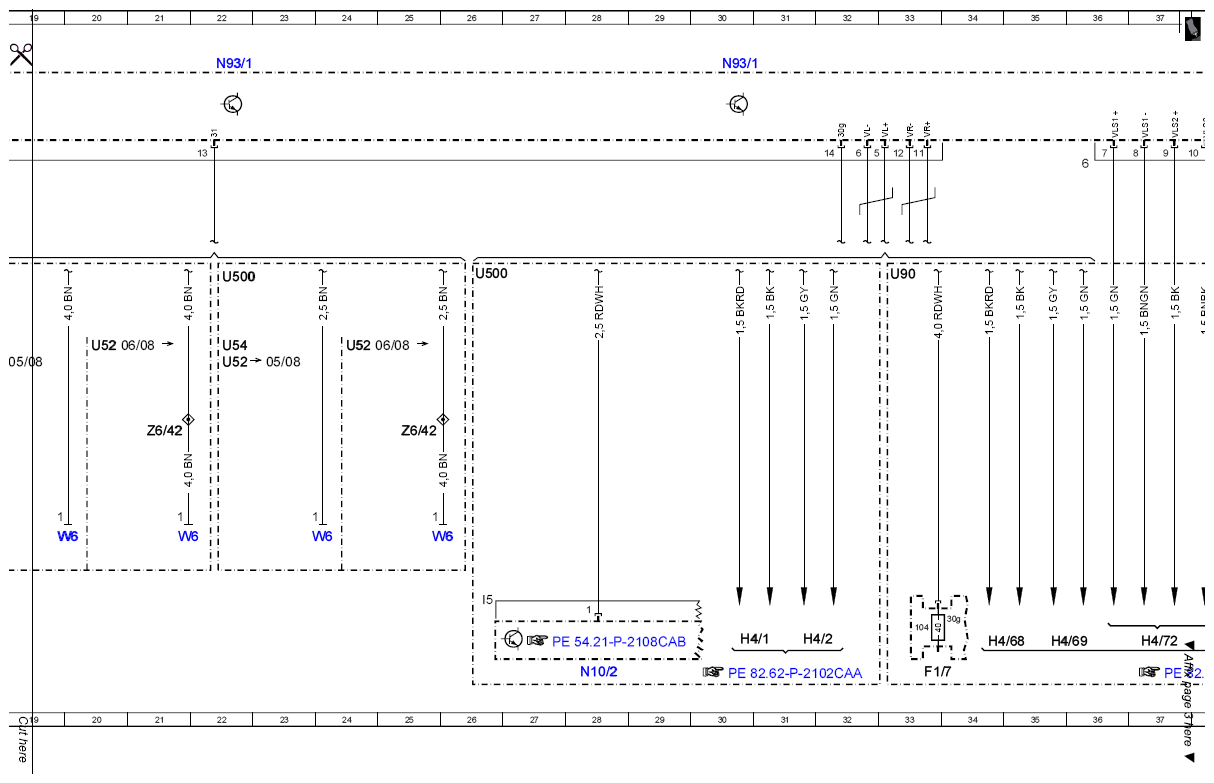

| N10/2 |
Rear SAM control unit with fuse and relay module |
28L |
| N123/4 |
Emergency call system control unit |
9L |

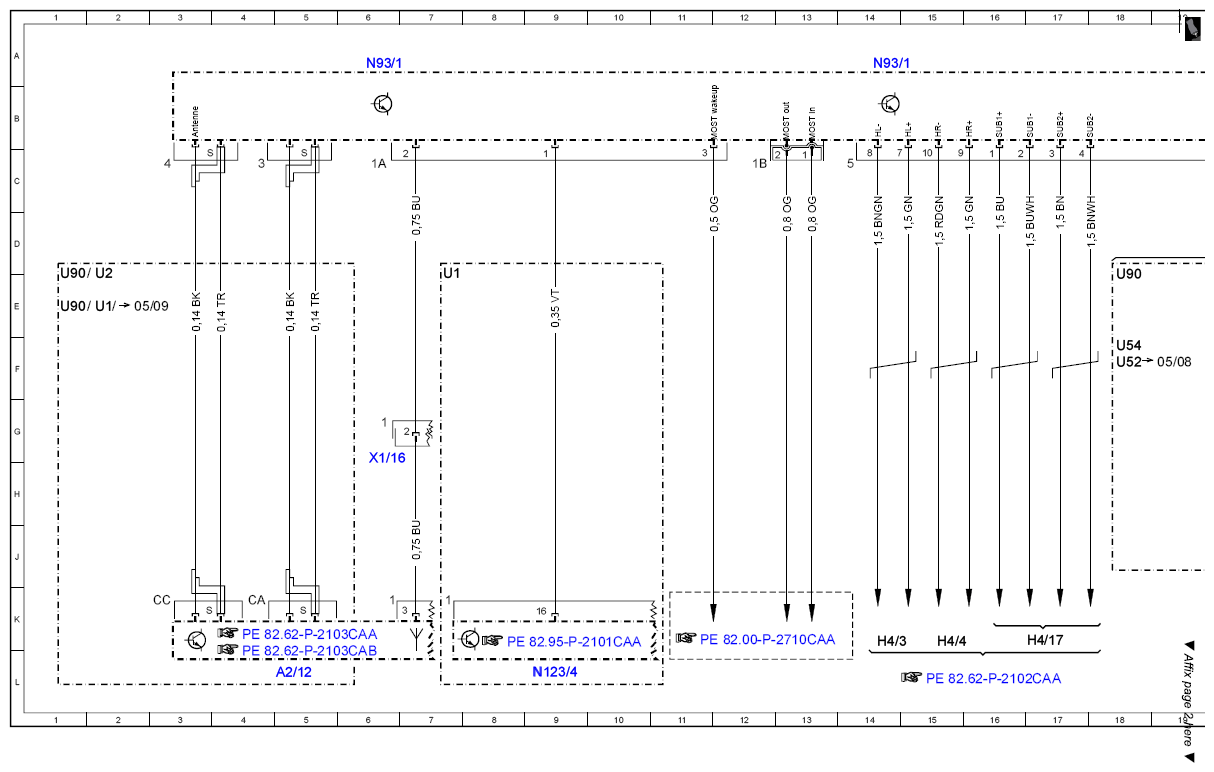

| N93/1 |
Audio tuner control unit |
6A |
| N93/1 |
Audio tuner control unit |
14A |
| N93/1 |
Audio tuner control unit |
30A |
| N93/1 |
Audio tuner control unit |
38A |
| N93/1 |
Audio tuner control unit |
46A |
| N93/1 |
Audio tuner control unit |
22A |
| U1 |
Valid for {{USA}} |
7E |
| U1 |
Valid for {{USA}} |
2E |
| U2 |
Valid for all except{{USA}} |
2E |
| U500 |
Not valid for Sound System |
26E |
| U500 |
Not valid for Sound System |
43E |
| U500 |
Not valid for Sound System |
22E |
| U52 |
Valid for {{Japan}} |
18F |
| U52 |
Valid for {{Japan}} |
20F |
| U52 |
Valid for {{Japan}} |
22F |
| U52 |
Valid for {{Japan}} |
24F |
| U54 |
Valid for all except {{Japan}} |
18F |
| U54 |
Valid for all except {{Japan}} |
22F |
| U90 |
Valid for Sound System |
33E |
| U90 |
Valid for Sound System |
46C |
| U90 |
Valid for Sound System |
18E |
| U90 |
Valid for Sound System |
1E |
| U90 |
Valid for Sound System |
1E |
| W6 |
Ground (left wheelhouse in luggage compartment) |
19J |
| W6 |
Ground (left wheelhouse in luggage compartment) |
25J |
| W6 |
Ground (left wheelhouse in luggage compartment) |
21J |
| W6 |
Ground (left wheelhouse in luggage compartment) |
24J |
| X1/16 |
Roof antenna connector |
6H |

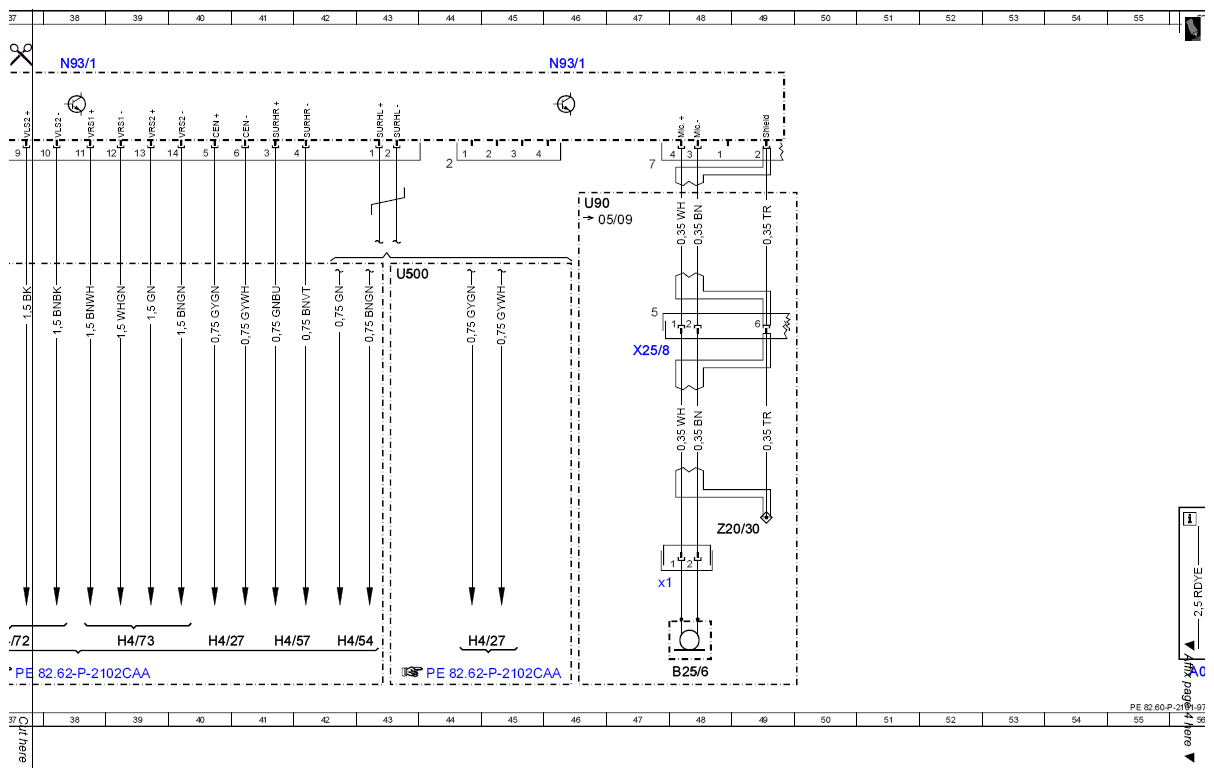

| X25/8 |
Overhead control panel and FFS [RBA] connector |
47F |
| Z20/30 |
Tracer wire connector sleeve |
49J |
| Z6/42 |
Ground W6 connector sleeve |
21G |
| Z6/42 |
Ground W6 connector sleeve |
25G |
