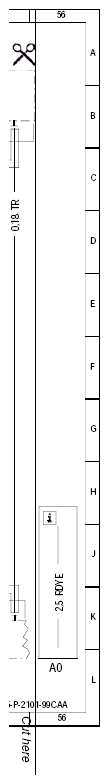

| A0 |
Explanation of color codes |
48L |
| A2/25 |
Emergency call system antenna splitter |
42L |
| A2/5 |
Antenna splitter |
46L |
| A2/52 |
Emergency call antenna |
39L |
| A2/54 |
Emergency call system left backup antenna |
40L |
| A2/55 |
Emergency call system right backup antenna |
45L |
| F1/6 |
Right instrument panel fuse box |
6L |
| F1/6f73 |
Fuse 73 |
6K |
| H4/27 |
Center cockpit speaker (Centerfill) |
23L |
| N10/1 |
Front SAM control module with fuse and relay module |
26L |
| N10/2 |
Rear SAM control module with fuse and relay module |
9L |
| N10/2f138 |
Fuse 138 |
8L |

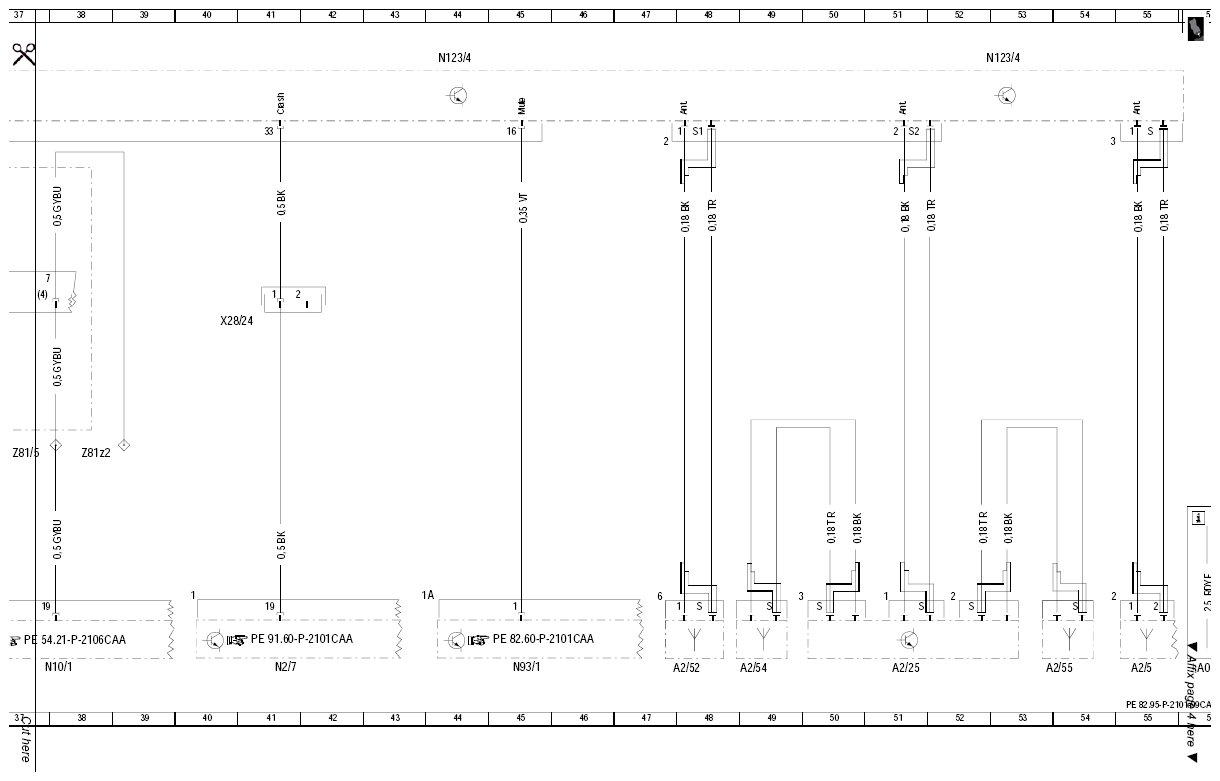

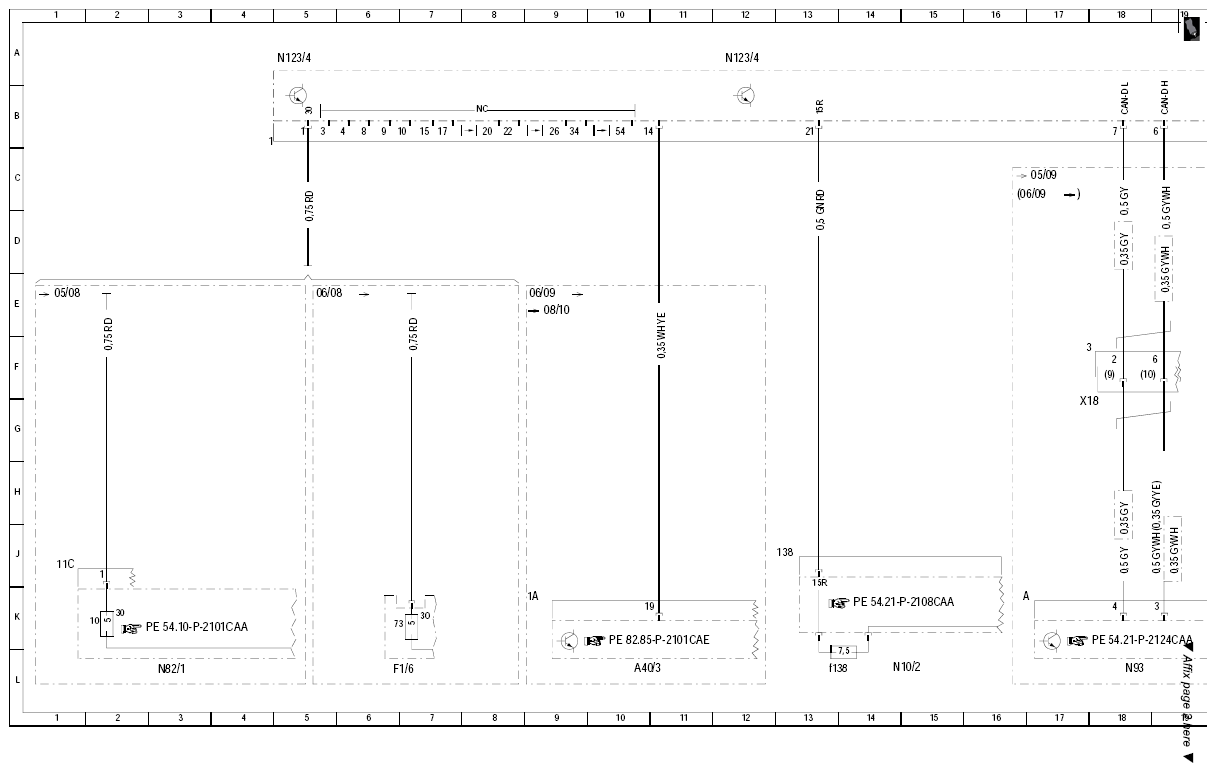

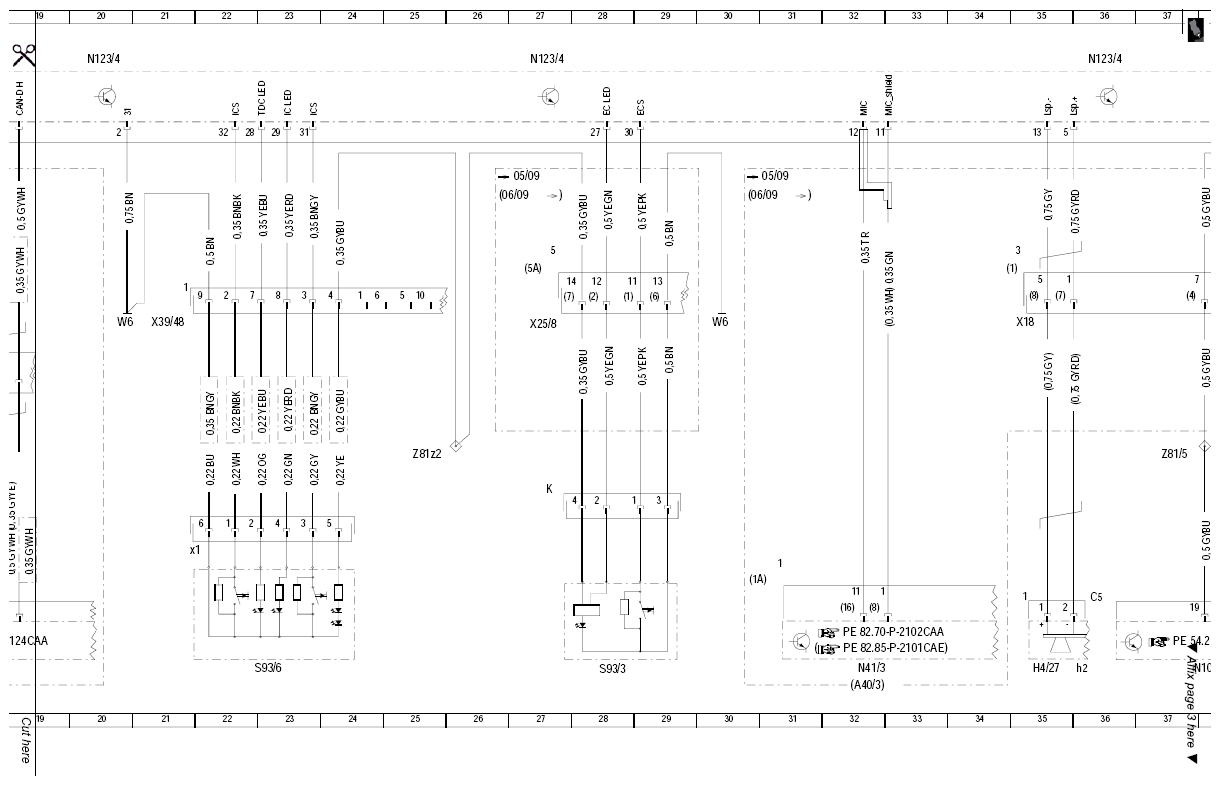

| N123/4 |
Emergency call system control unit |
4A |
| N123/4 |
Emergency call system control unit |
11A |
| N123/4 |
Emergency call system control unit |
20A |
| N123/4 |
Emergency call system control unit |
28A |
| N123/4 |
Emergency call system control unit |
36A |
| N123/4 |
Emergency call system control unit |
44A |
| N2/7 |
Restraint systems control module |
29L |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
33L |
| N82/1 |
Vehicle power supply control unit |
3L |
| N82/1f10 |
Fuse 10 |
1K |
| N93 |
Central gateway control module |
12L |
| N93/1 |
Audio tuner control unit |
36L |
| S93/3 |
SOS push-button switch |
20L |
| S93/6 |
MB-Info and telediagnosis button group |
16L |
| S93/6x1 |
MB-Info and telediagnosis button group connector |
15J |
| W6 |
Ground (left wheel well in trunk) |
13E |
| W6 |
Ground (left wheel well in trunk) |
22E |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
12E |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
23E |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
19E |
| X28/24 |
Interior/telematics connector |
28E |
| X39/48 |
Breakdown assistance/info button connector |
14E |
| Z81 |
Circuit 58d connector sleeve |
18H |
| Z81 |
Circuit 58d connector sleeve |
26H |
| Z81/5 |
Circuit 58d COC connector sleeve |
25H |
