| A0 |
Color code key |
32L |

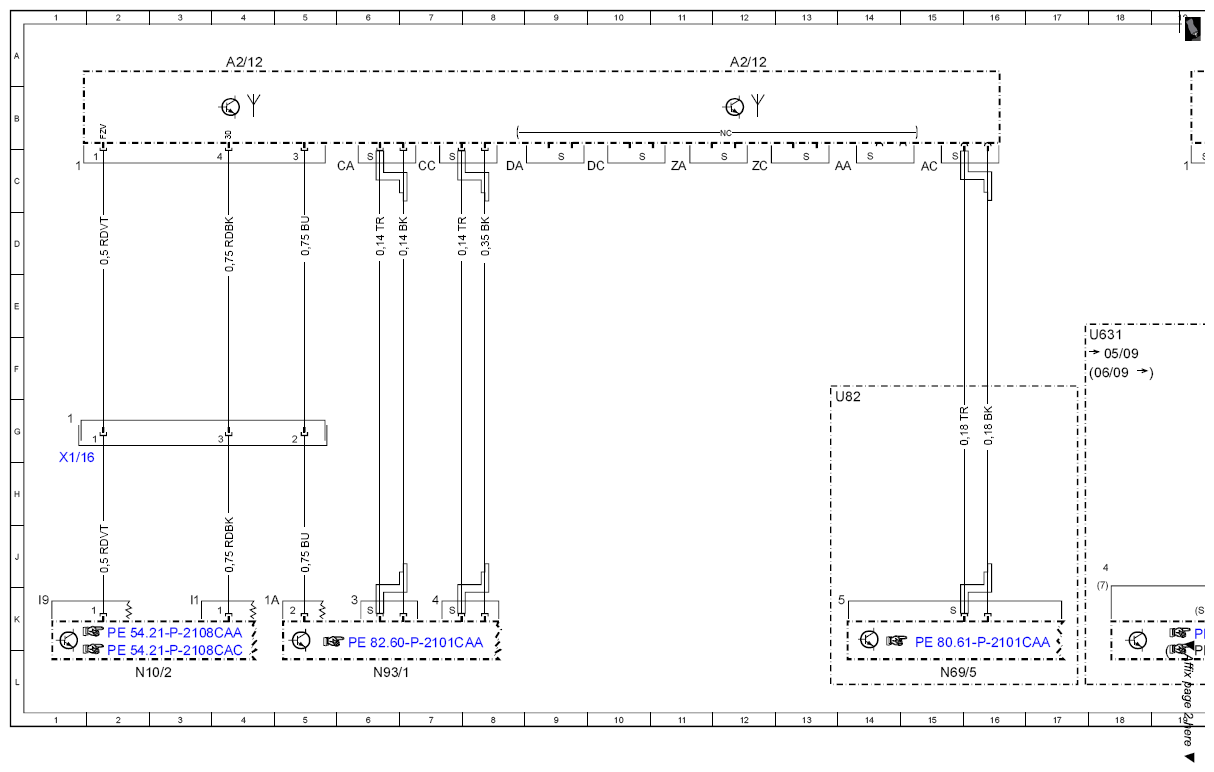

| A2/12 |
Rear window antenna amplifier module |
4A |
| A2/12 |
Rear window antenna amplifier module |
12A |
| A2/49 |
Telephone and GPS antenna |
27L |
| A2/49a1 |
Telephone antenna |
28L |
| A2/49a2 |
GPS antenna |
26L |

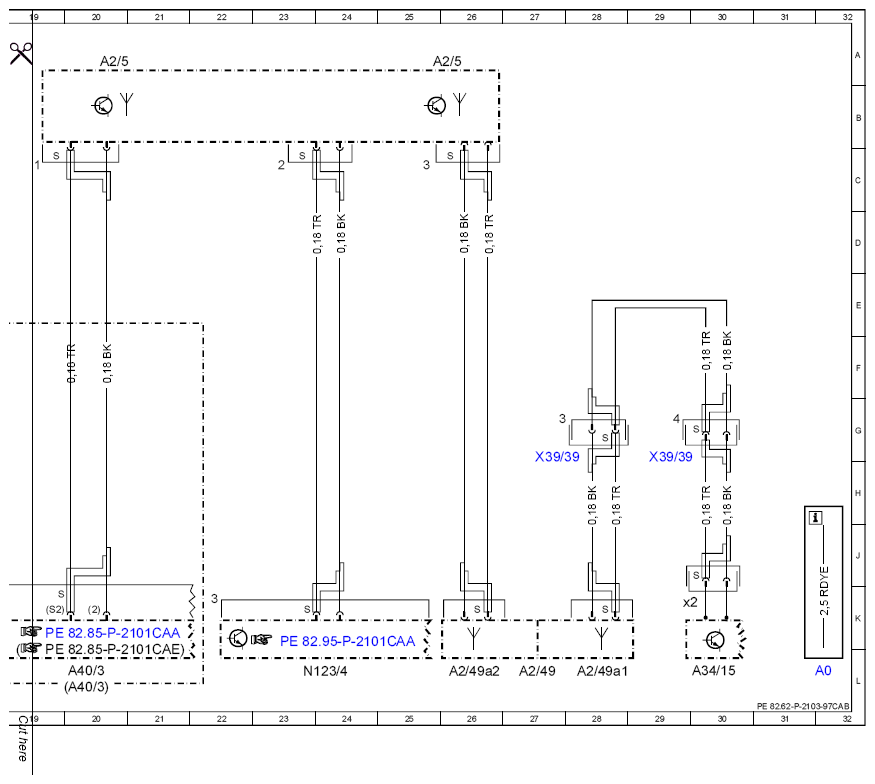

| A2/5 |
Antenna splitter |
20A |
| A2/5 |
Antenna splitter |
25A |
| A34/15 |
UHI portable CTEL holder (Universal Handy Interface) |
30L |
| A34/15x2 |
Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface) |
30K |
| A40/3 |
COMAND control unit |
20L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
2L |
| N123/4 |
Emergency call system control unit |
23L |
| N69/5 |
KEYLESS-GO control unit |
15L |
| N93/1 |
Audio tuner control unit |
6L |
| U631 |
Valid for version with COMAND |
18F |
| U82 |
Valid for KEYLESS GO |
13G |
| X1/16 |
Roof antenna connector |
1G |
| X39/39 |
Handy connector |
27H |
| X39/39 |
Handy connector |
29H |
