| 1 |
Circuit 58, status |
15F |
| 2 |
Switch and controls illumination brightness control, status |
18C |
| 3 |
Circuit 15, status |
17F |
| 4 |
Circuit 58d, status |
8E |
| 4 |
Circuit 58d, status |
15B |
| 4 |
Circuit 58d, status |
27B |
| 4 |
Circuit 58d, status |
22E |
| 4 |
Circuit 58d, status |
30D |
| 4 |
Circuit 58d, status |
30F |
| 4 |
Circuit 58d, status |
34B |
| 4 |
Circuit 58d, status |
10H |
| 4 |
Circuit 58d, status |
24H |
| 4 |
Circuit 58d, status |
8D |
| 5 |
Button/symbol illumination, actuation |
4G |
| 5 |
Button/symbol illumination, actuation |
19B |
| 5 |
Button/symbol illumination, actuation |
22C |
| 5 |
Button/symbol illumination, actuation |
5K |
| 5 |
Button/symbol illumination, actuation |
27J |
| 5 |
Button/symbol illumination, actuation |
7J |
| 5 |
Button/symbol illumination, actuation |
12K |
| 5 |
Button/symbol illumination, actuation |
4B |
| 5 |
Button/symbol illumination, actuation |
23B |

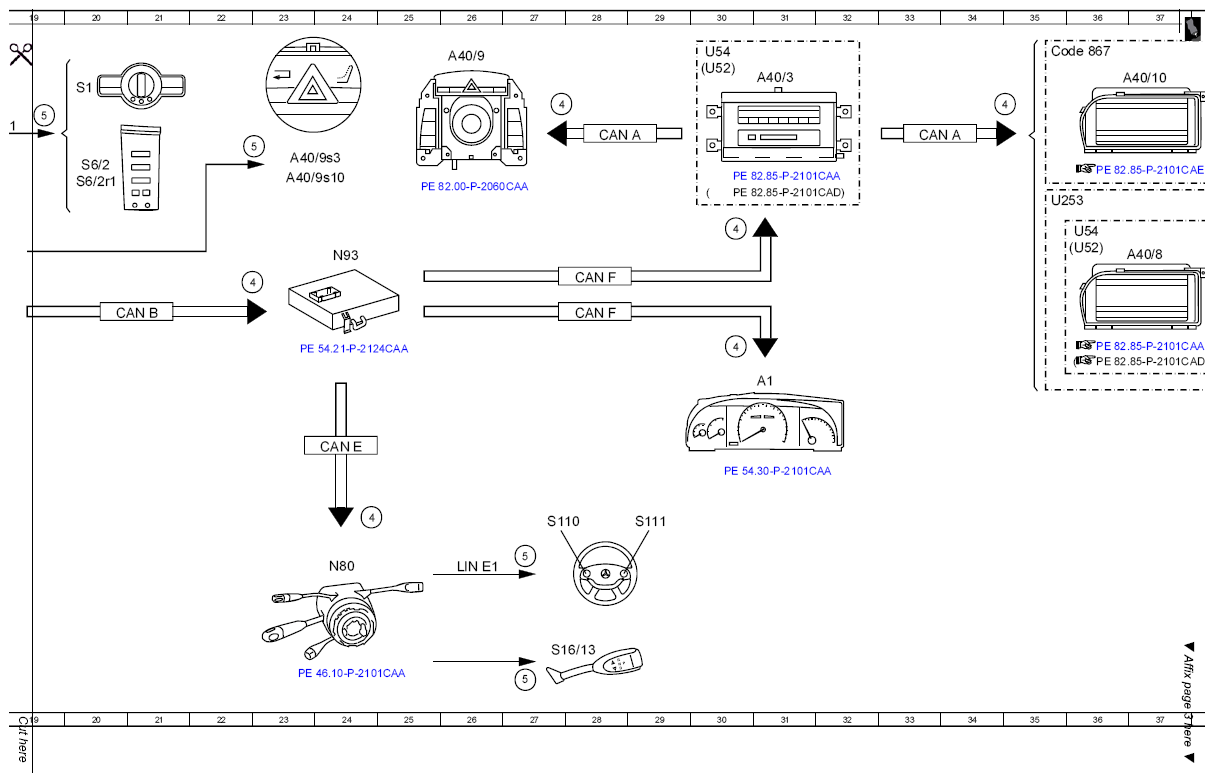

| A1 |
Instrument cluster |
31F |
| A40/10 |
SPLITVIEW display |
37A |
| A40/3 |
COMAND control unit |
31A |
| A40/8 |
COMAND display |
37D |
| A40/9 |
Front central operating unit |
26A |
| A40/9s10 |
Freely programmable button |
23C |
| A40/9s3 |
Hazard warning system button |
23C |
| A8/1 |
Transmitter key |
18J |
| CAN A |
Telematics CAN |
28B |
| CAN A |
Telematics CAN |
33B |
| CAN B |
Interior CAN |
21E |
| CAN B |
Interior CAN |
12D |
| CAN B |
Interior CAN |
12E |
| CAN B |
Interior CAN |
12E |
| CAN B |
Interior CAN |
17C |
| CAN E |
Chassis CAN |
24G |
| CAN F |
Central CAN |
28E |
| Code 301 |
Ashtray package/smoker package |
4K |
| Code 867 |
SPLITVIEW |
36A |
| E10/1 |
Center air outlet illumination |
12K |
| E10/2 |
Left air outlet illumination |
12K |
| E10/3 |
Right air outlet illumination |
12K |
| E10/5 |
Rear air outlet illumination |
12K |
| LIN 1 |
Instrument panel LIN |
18B |
| LIN B1 |
Front door LIN |
6G |
| LIN E1 |
Steering LIN |
26J |

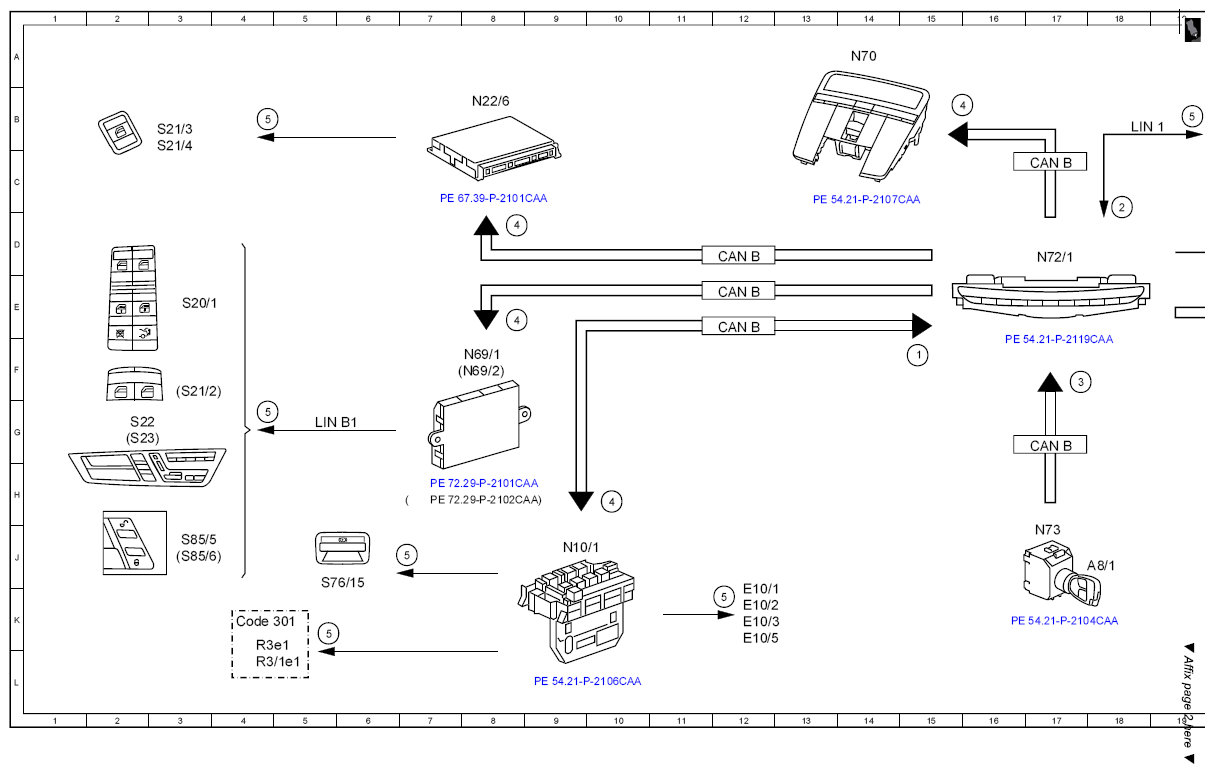

| N10/1 |
Front SAM control unit with fuse and relay module |
9J |
| N22/6 |
Rear control unit |
8B |
| N69/1 |
Left door control unit |
8F |
| N69/2 |
Right door control unit |
8F |
| N70 |
Overhead control panel control unit |
14A |
| N72/1 |
Upper control panel control unit |
17D |
| N73 |
EIS [EZS] control unit |
17J |
| N80 |
Steering column module |
24J |
| N93 |
Central gateway control unit |
24D |
| R3/1e1 |
Illumination |
4L |
| R3e1 |
Illumination |
4K |
| S1 |
Rotary light switch |
20B |
| S110 |
Left multifunction steering wheel button group |
27J |
| S111 |
Right multifunction steering wheel button group |
29J |
| S16/13 |
Gear selector switch DIRECT SELECT |
27L |
| S20/1 |
Driver power window, outside mirror and trunk lid switch group |
3E |
| S21/2 |
Front passenger power window switch |
3F |
| S21/3 |
Left rear power window switch |
3B |
| S21/4 |
Right rear power window switch |
3B |
| S22 |
Left front seat operation switch group |
2G |
| S23 |
Right front seat operation switch group |
2G |
| S6/2 |
Cockpit switch group |
20C |
| S6/2r1 |
Switch and controls illumination/Night View Assist display brightness control |
20C |
| S85/5 |
Left interior CL [ZV] switch |
3J |
| S85/6 |
Right interior CL [ZV] switch |
3J |
| U253 |
Not valid for SPLITVIEW display |
35C |
| U52 |
Valid for Japan |
30A |
| U52 |
Valid for Japan |
36D |
| U54 |
Valid for all except Japan |
30A |
| U54 |
Valid for all except Japan |
36D |
