Satellite Digital Audio Radio System (SDAR) wiring diagram - PE82.60-P-2300-99CAA

Code:	Designation:	Position:
A0	Explanation of color codes	15L
A2/82	SDAR antenna	8L
F1/7	Left instrument panel fuse box	2L
F1/7f107	Fuse 107	1K
N87/5	SDAR control unit	4A
N87/5	SDAR control unit	9A
W6	Ground (left wheel well in trunk)	2E

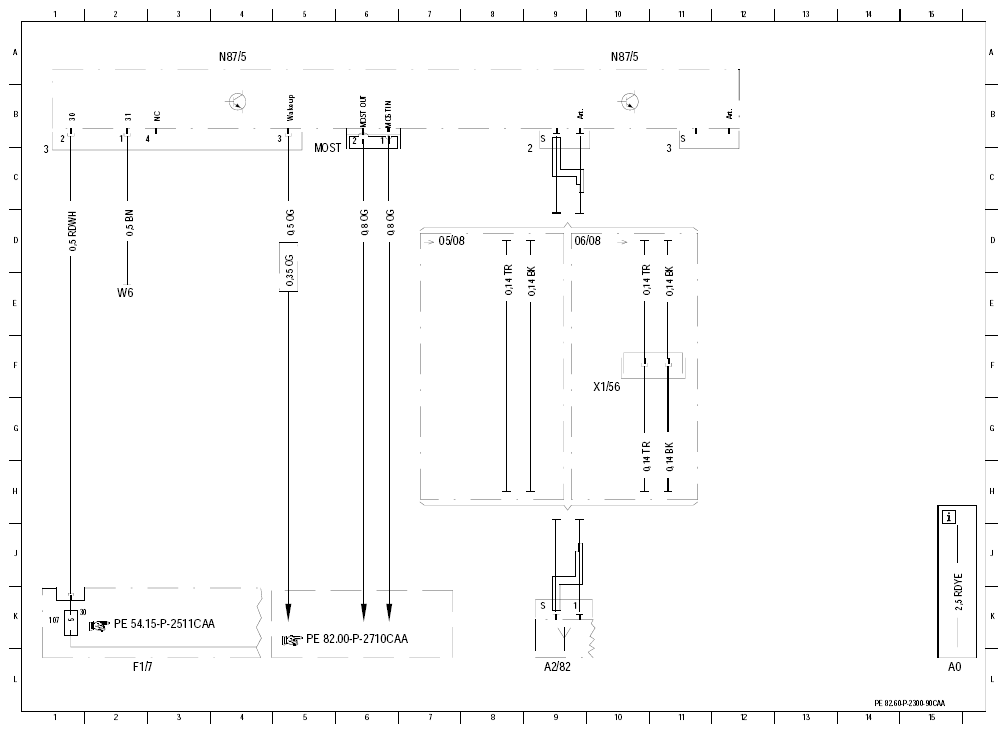

Fig 1: Satellite Digital Audio Radio System Wiring Diagram
