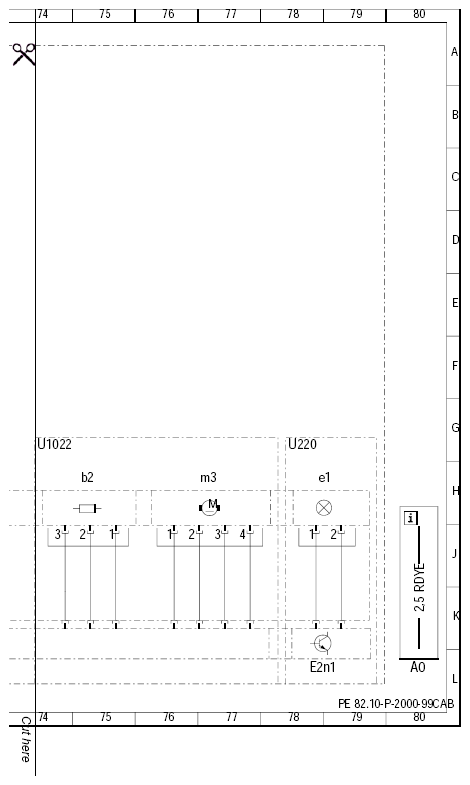

| A0 |
Explanation of color codes |
23L |
| E1 |

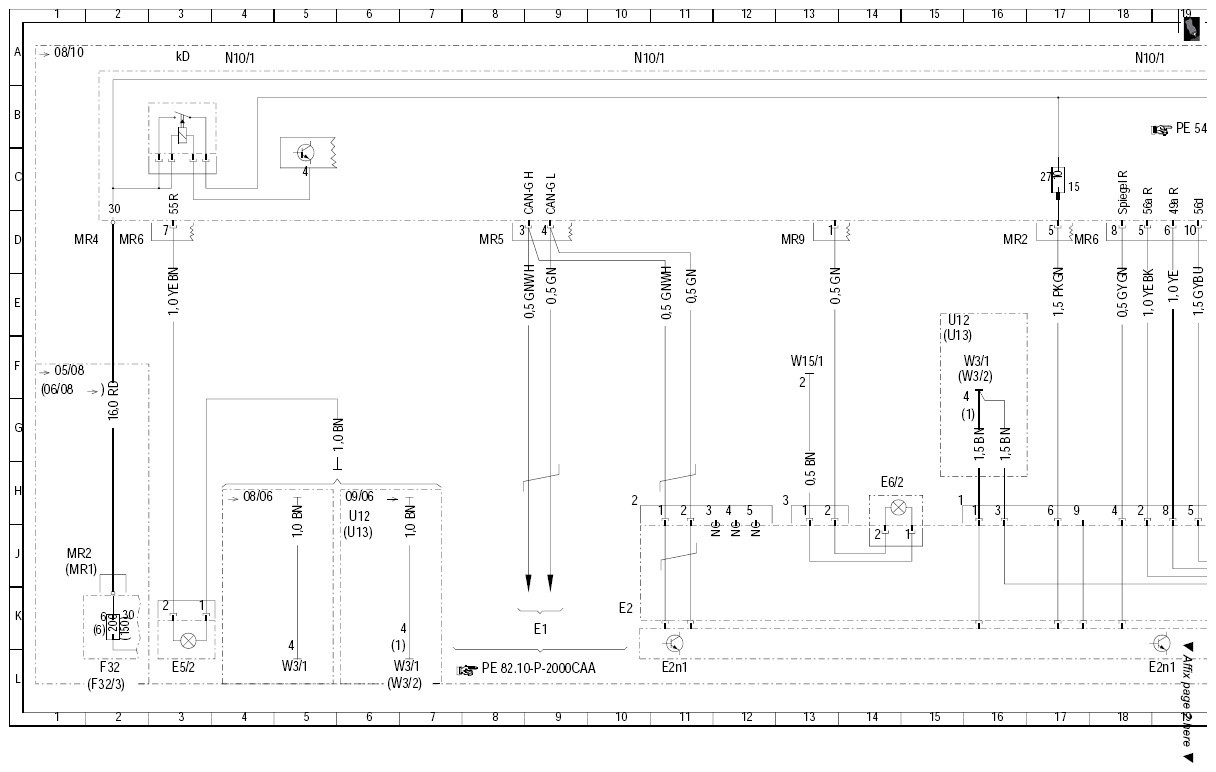

Left front headlamp unit |
3K |

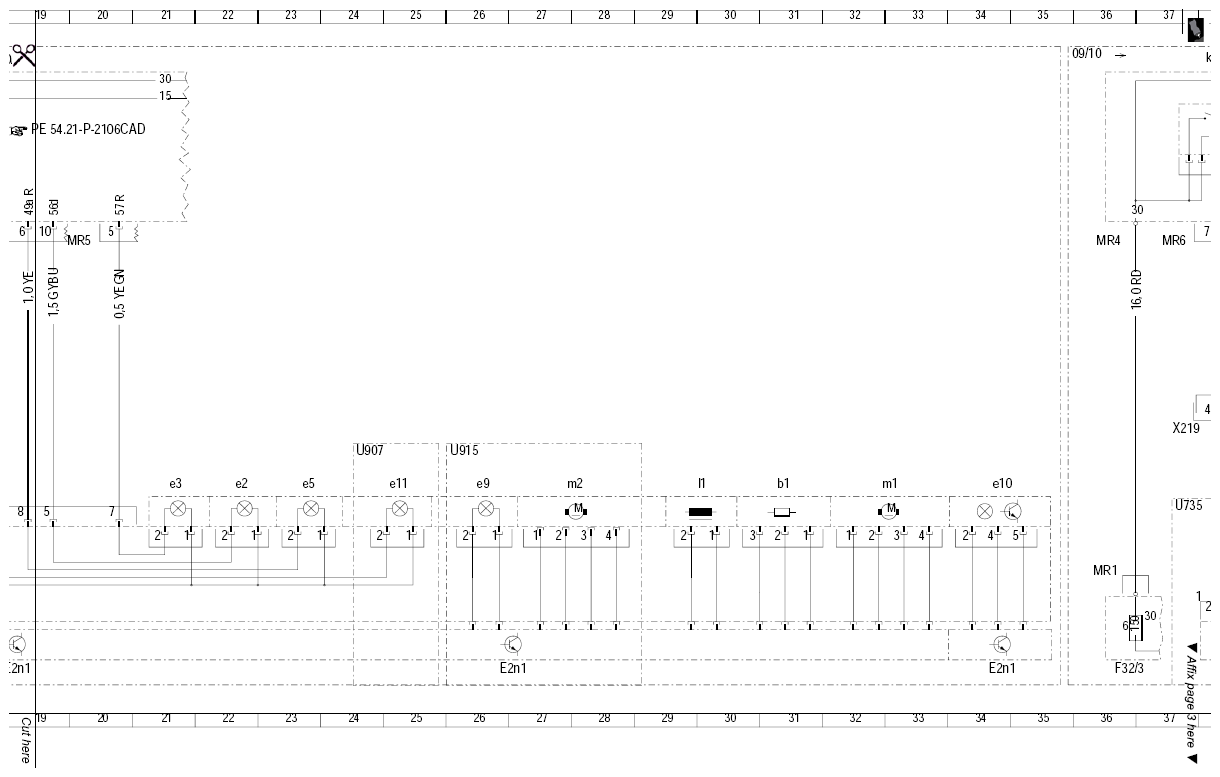

| E2 |
Right front headlamp unit |
6L |
| E2 |
Right front headlamp unit |
12L |

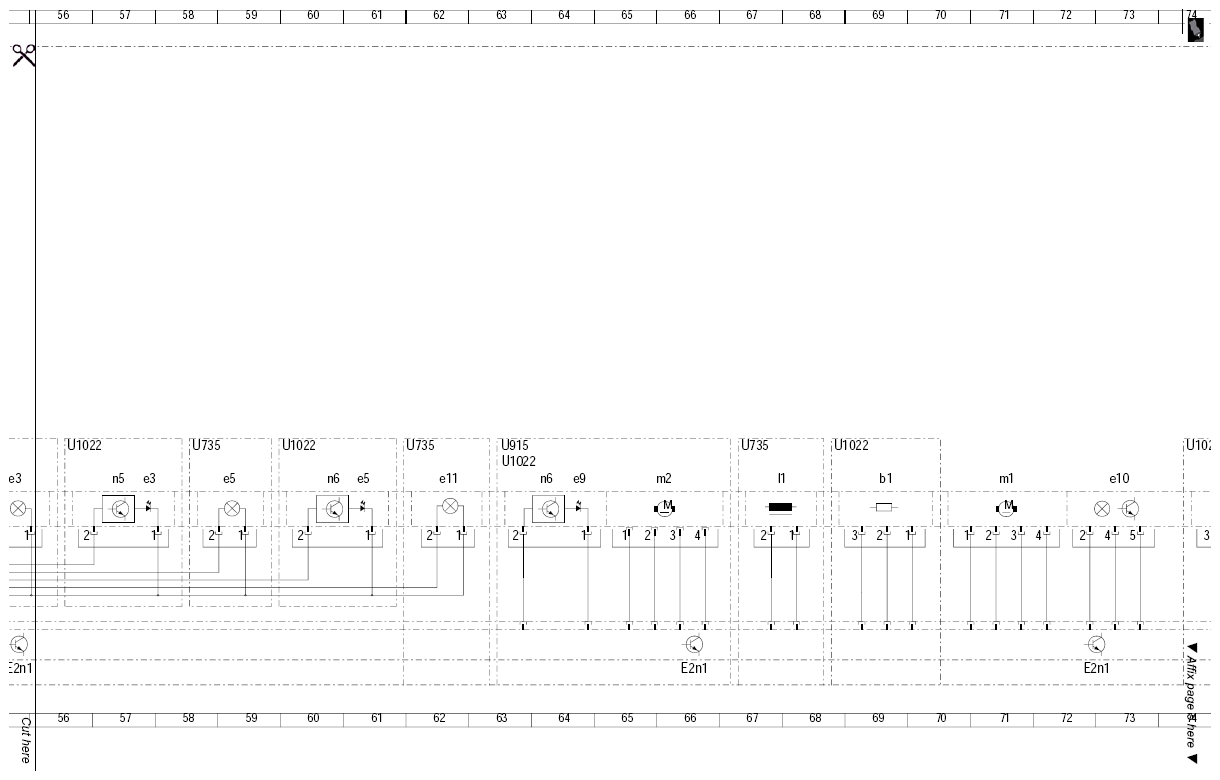

| E2e1 |
Right high beam |
10L |
| E2e10 |
Right bi-xenon lamp with integral ignition module |
14L |
| E2e11 |
Right infrared lamp |
10L |
| E2e2 |
Right low beam |
17L |
| E2e3 |
Right standing and parking lamp |
7L |
| E2e5 |
Right turn signal lamp |
18L |
| E2e9 |
Cornering illumination |
11L |
| E2l1 |
Right high beam solenoid |
14L |
| E2m1 |
Right headlamp range adjustment motor |
15L |
| E2m2 |
Right dynamic cornering lamp motor |
11L |

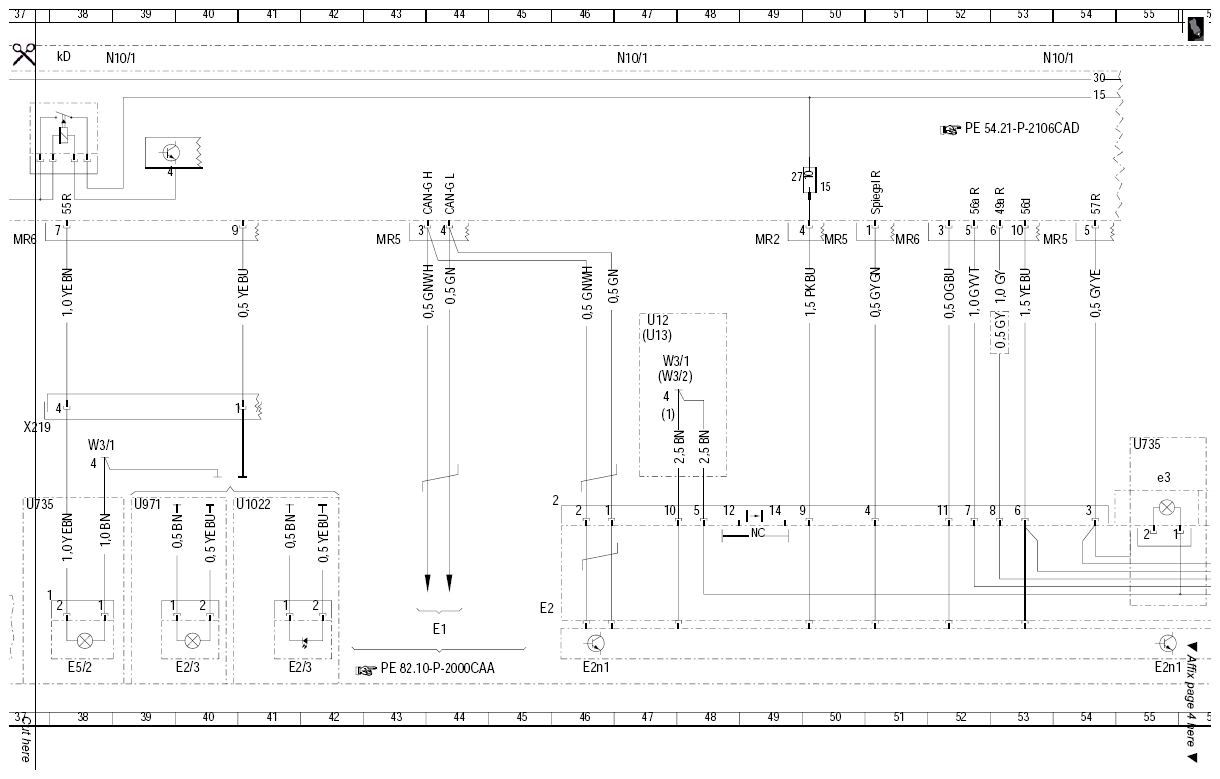

| E2n1 |
Xenon headlamp control module |
13L |
| E5/2 |
Right fog lamp |
21L |
| E6/2 |
Right front side marker lamp {{USA}} |
19L |
| F32 |
Front prefuse |
1L |
| F32f6 |
Fuse 6 |
1K |
| N10/1 |
Front SAM control module with fuse and relay module |
4A |
| N10/1 |
Front SAM control module with fuse and relay module |
12A |
| N10/1 |
Front SAM control module with fuse and relay module |
20A |
| N10/1f27 |
Fuse 27 |
8C |
| N10/1kD |
Circuit 15 relay |
2A |
| U12 |
Valid for left-hand steering |
16F |
| U13 |
Valid for right-hand steering |
16G |
| U19 |
Valid for standard equipment |
9F |
| U735 |
Valid for bi-xenon |
12F |
| U907 |
Valid for night vision assist |
9G |
| U915 |
Valid for cornering illumination |
11F |
| W15/1 |
Ground (right footwell) |
19G |
| W3/1 |
Ground (right front wheel well) |
16G |
| W3/1 |
Ground (right front wheel well) |
21G |
| W3/2 |
Ground (left front wheel well) |
16G |
