| A0 |
Explanation of color codes |
23L |

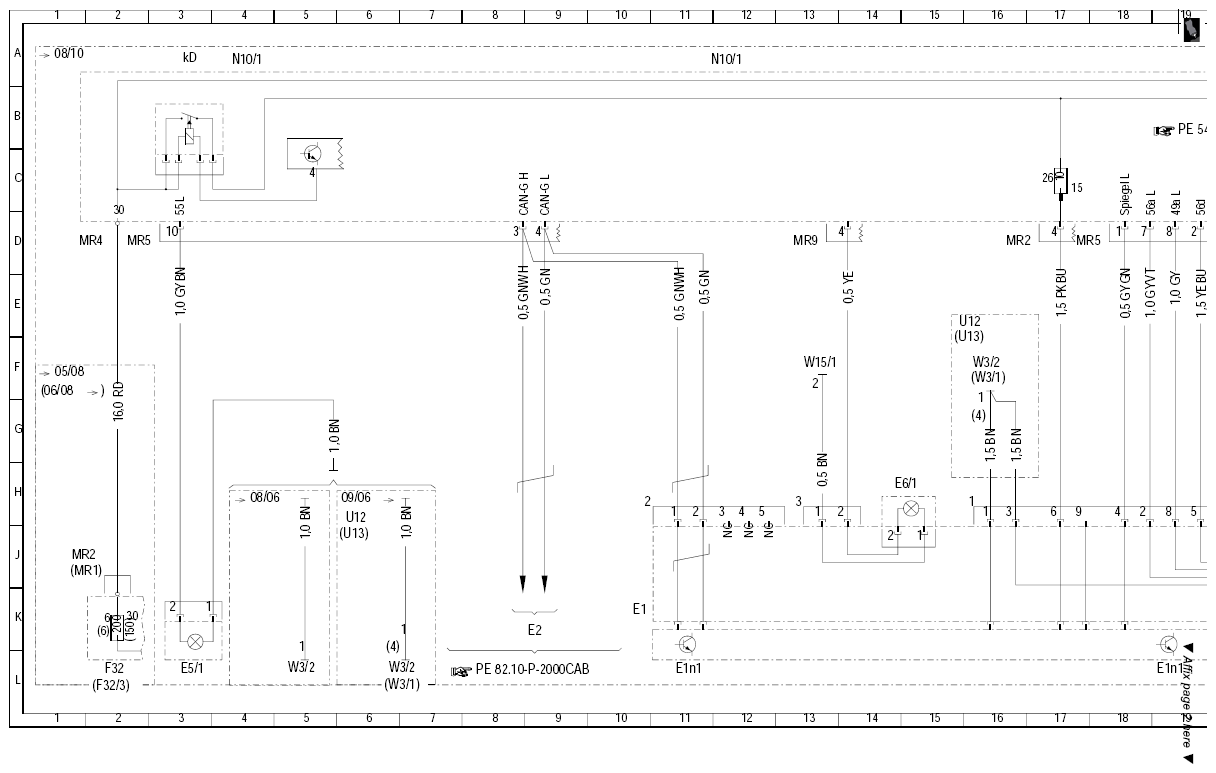

| E1 |
Left front headlamp unit |
6L |
| E1 |
Left front headlamp unit |
9L |
| E1 |
Left front headlamp unit |
17L |

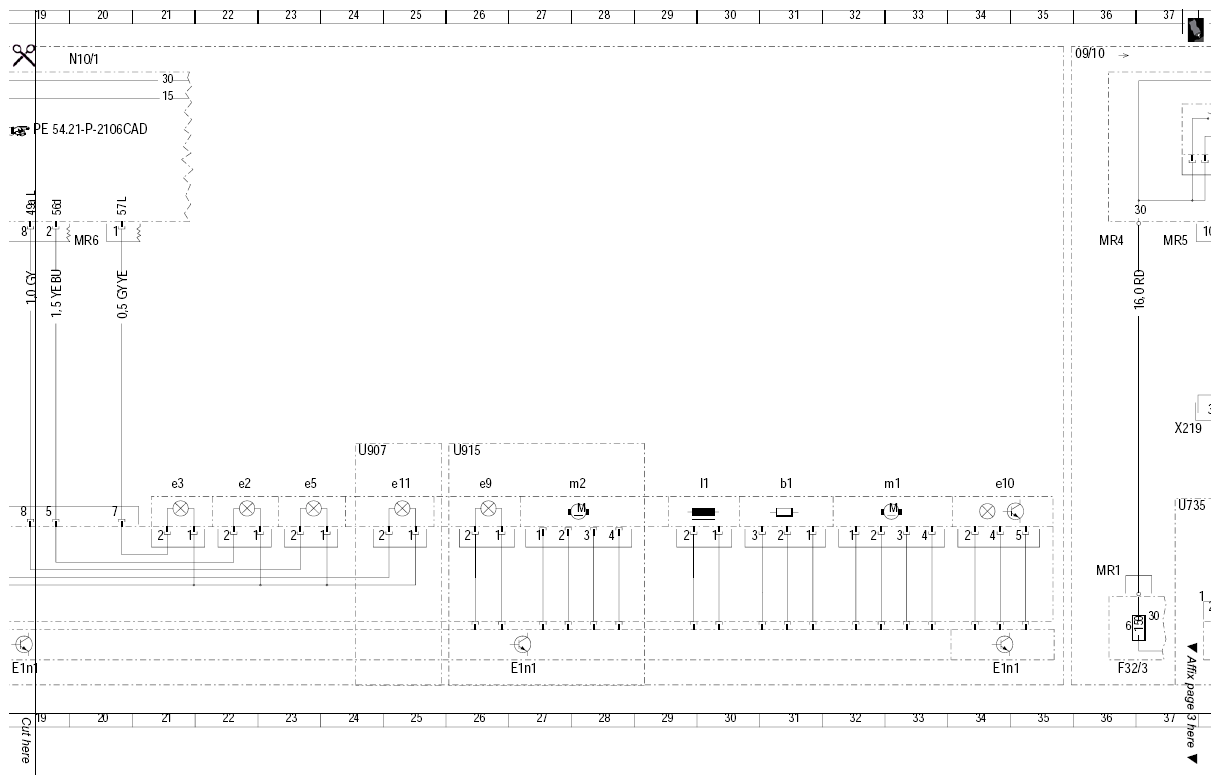

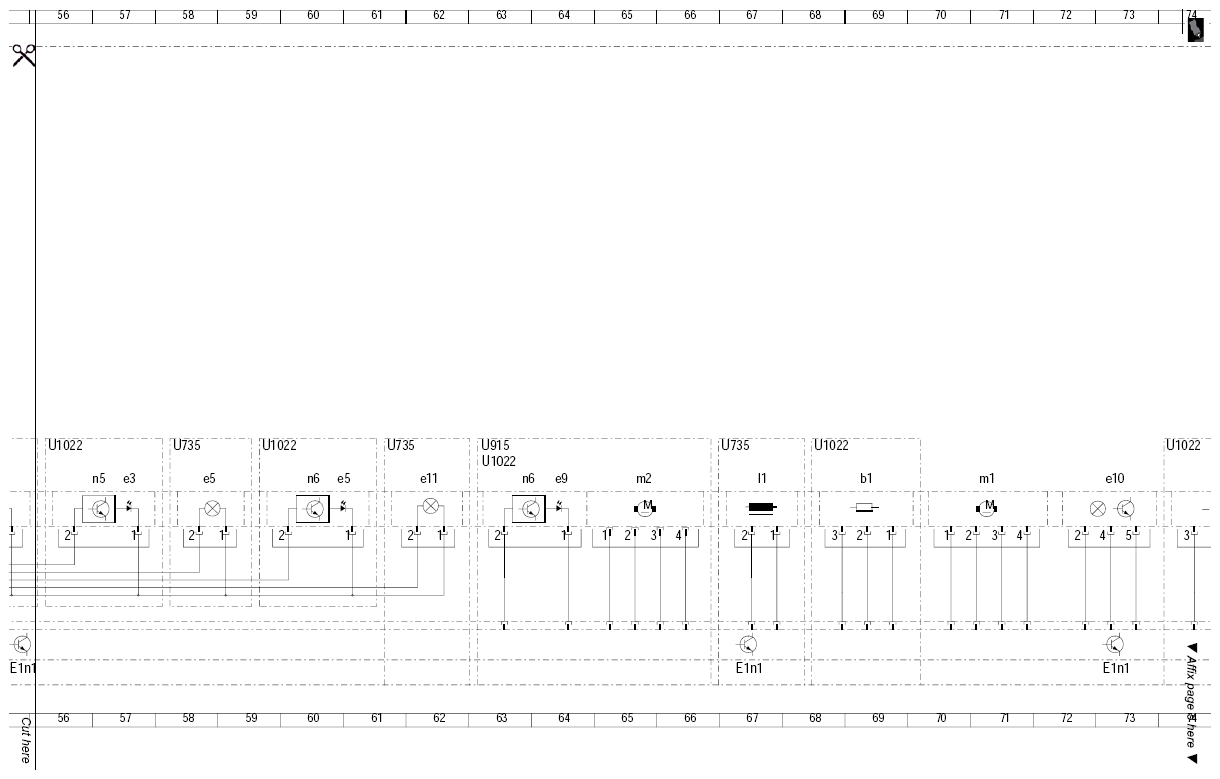

| E1e1 |
Left high beam/motorway spotlight |
9L |
| E1e10 |
Left bi-xenon lamp with integral ignition module |
11L |
| E1e11 |
Left infrared lamp |
9L |
| E1e2 |
Left low beam |
5L |
| E1e3 |
Left standing and parking lamp |
14L |
| E1e5 |
Left turn signal lamp |
5L |
| E1e9 |
Cornering illumination |
7L |
| E1l1 |
Left high beam solenoid |
12L |
| E1m1 |
Left headlamp range adjustment motor |
13L |
| E1m2 |
Left dynamic cornering lamp motor |
8L |

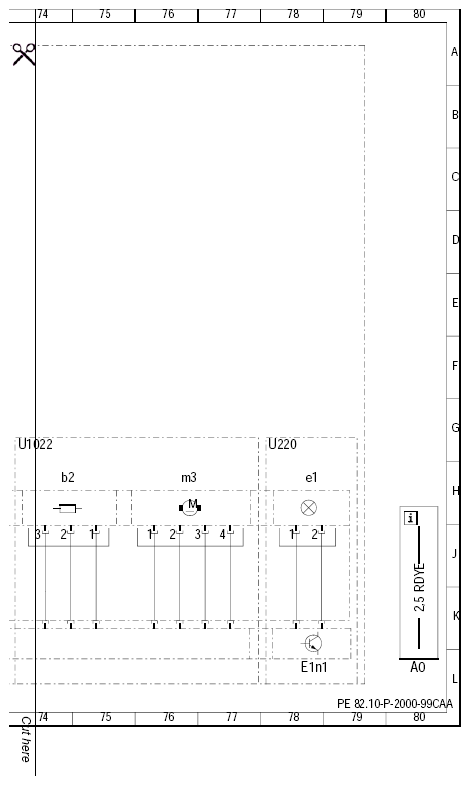

| E1n1 |
Xenon headlamp control module |
11L |
| E2 |
Right front headlamp unit |
19K |

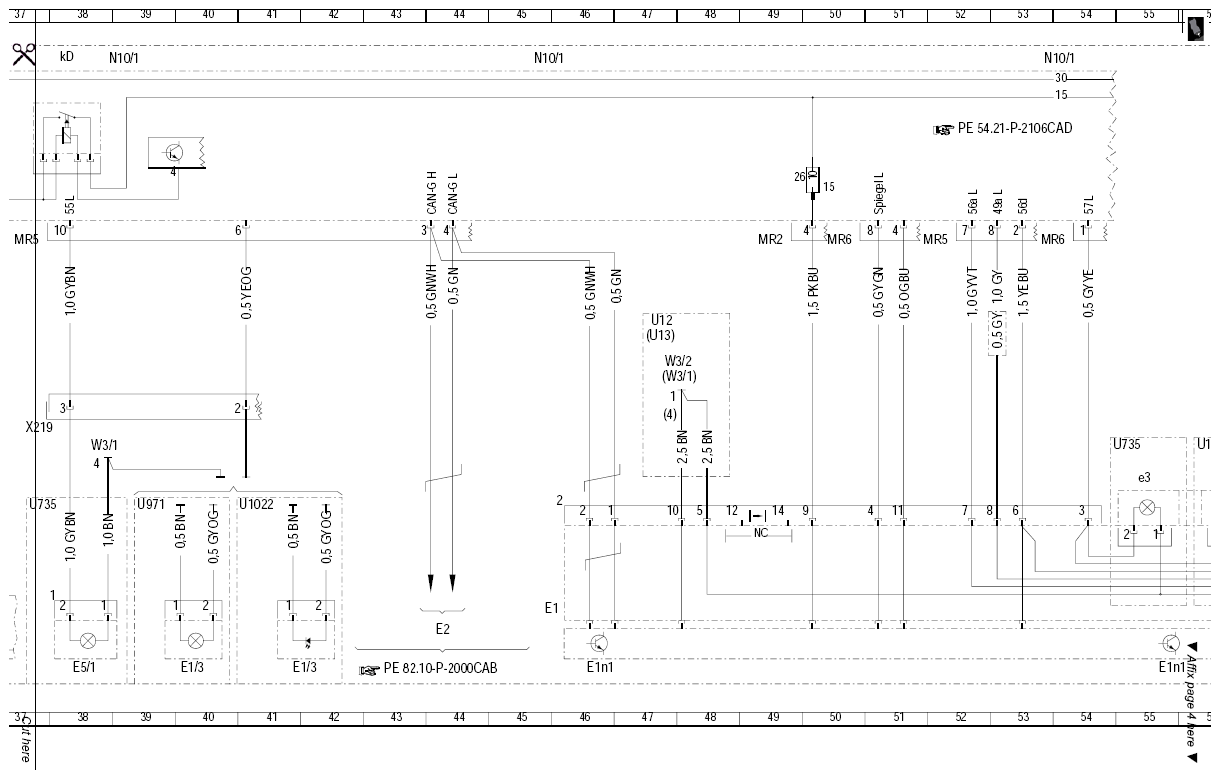

| E5/1 |
Left fog lamp |
2L |
| E6/1 |
Left front side marker lamp {{USA}} |
4L |
| F32 |
Front prefuse |
1L |
| F32f6 |
Fuse 6 |
1K |
| N10/1 |
Front SAM control module with fuse and relay module |
4A |
| N10/1 |
Front SAM control module with fuse and relay module |
12A |
| N10/1 |
Front SAM control module with fuse and relay module |
18A |
| N10/1f26 |
Fuse 26 |
13C |
| N10/1kD |
Circuit 15 relay |
2A |
| U12 |
Valid for left-hand steering |
6F |
| U13 |
Valid for right-hand steering |
6G |
| U735 |
Valid for bi-xenon |
10F |
| U907 |
Valid for night vision assist |
9F |
| U915 |
Valid for cornering illumination |
7 F |
| W15/1 |
Ground (right footwell) |
4G |
| W3/1 |
Ground (right front wheel well) |
6G |
| W3/2 |
Ground (left front wheel well) |
3G |
| W3/2 |
Ground (left front wheel well) |
6G |
