| 1 |
Circuit 15, status |
14F |
| 2 |
Combination switch, status |
18K |
| 2 |
Combination switch, status |
20G |
| 2 |
Combination switch, status |
16F |
| 3 |
Hazard warning flasher button, status |
14G |
| 3 |
Hazard warning flasher button, status |
8K |
| 4 |
Crash, signal |
22F |
| 4 |
Crash, signal |
17E |
| 5 |
Central locking (CL[ZV]), status |
13F |
| 7 |
Flasher frequency, signal |
14D |
| 7 |
Flasher frequency, signal |
4F |
| 7 |
Flasher frequency, signal |
11J |
| 7 |
Flasher frequency, signal |
15D |
| 7 |
Flasher frequency, signal |
19F |
| 8 |
Turn signal lamp, actuation |
18B |
| 8 |
Turn signal lamp, actuation |
23B |
| 8 |
Turn signal lamp, actuation |
18C |
| 8 |
Turn signal lamp, actuation |
23C |
| 8 |
Turn signal lamp, actuation |
3C |
| 8 |
Turn signal lamp, actuation |
8C |
| 8 |
Turn signal lamp, actuation |
13C |
| 9 |
Hazard warning flasher, status |
11H |
| 10 |
Hazard warning system button indicator lamp, actuation |
7K |

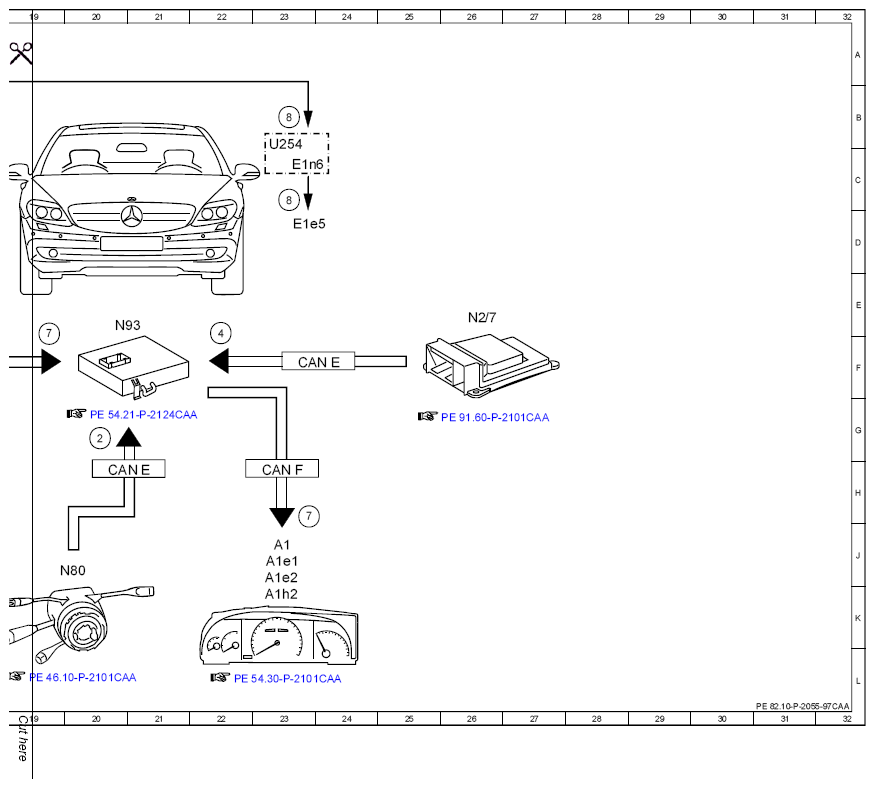

| A1 |
Instrument cluster |
23J |
| A1e1 |
Left turn signal indicator lamp |
23J |
| A1e2 |
Right turn signal indicator lamp |
23J |
| A1h2 |
Audible turn signal indicator |
23K |
| A40/9 |
Front central operating unit |
4J |
| A40/9s3 |
Hazard warning system button |
6K |
| A8/1 |
Transmitter key |
6B |
| CAN B |
Interior CAN |
15D |
| CAN B |
Interior CAN |
18F |
| CAN B |
Interior CAN |
12G |
| CAN B |
Interior CAN |
12F |
| CAN B |
Interior CAN |
12F |
| CAN E |
Chassis CAN |
20H |
| CAN E |
Chassis CAN |
23F |
| CAN F |
Central CAN |
23H |
| E1e5 |
Left turn signal lamp |
23D |
| E1n6 |
Left turn signal and cornering light voltage converter |
23C |
| E2e5 |
Right turn signal lamp |
18D |
| E2n6 |
Right turn signal and cornering light voltage converter |
18C |
| E3e1 |
Left turn signal lamp |
7C |
| E4e1 |
Right turn signal lamp |
12C |

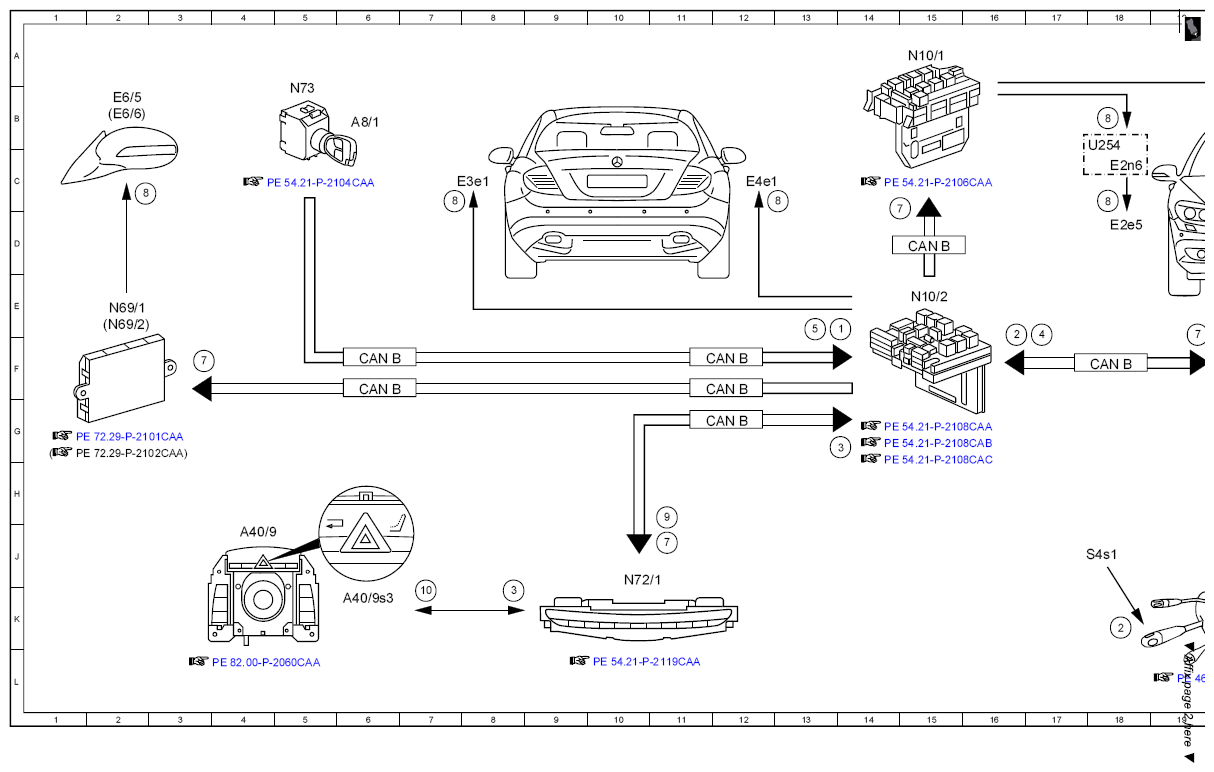

| E6/5 |
Left outside mirror turn signal lamp |
2B |
| E6/6 |
Right outside mirror turn signal lamp |
2B |
| N10/1 |
Front SAM control unit with fuse and relay module |
15A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
15E |
| N2/7 |
Restraint systems control unit |
26E |
| N69/1 |
Left door control unit |
2E |
| N69/2 |
Right door control unit |
2E |
| N72/1 |
Upper control panel control unit |
10J |
| N73 |
EIS [EZS] control unit |
5B |
| N80 |
Steering column module |
20J |
| N93 |
Central gateway control unit |
20E |
| S4s1 |
Left and right turn signal switch |
18J |
