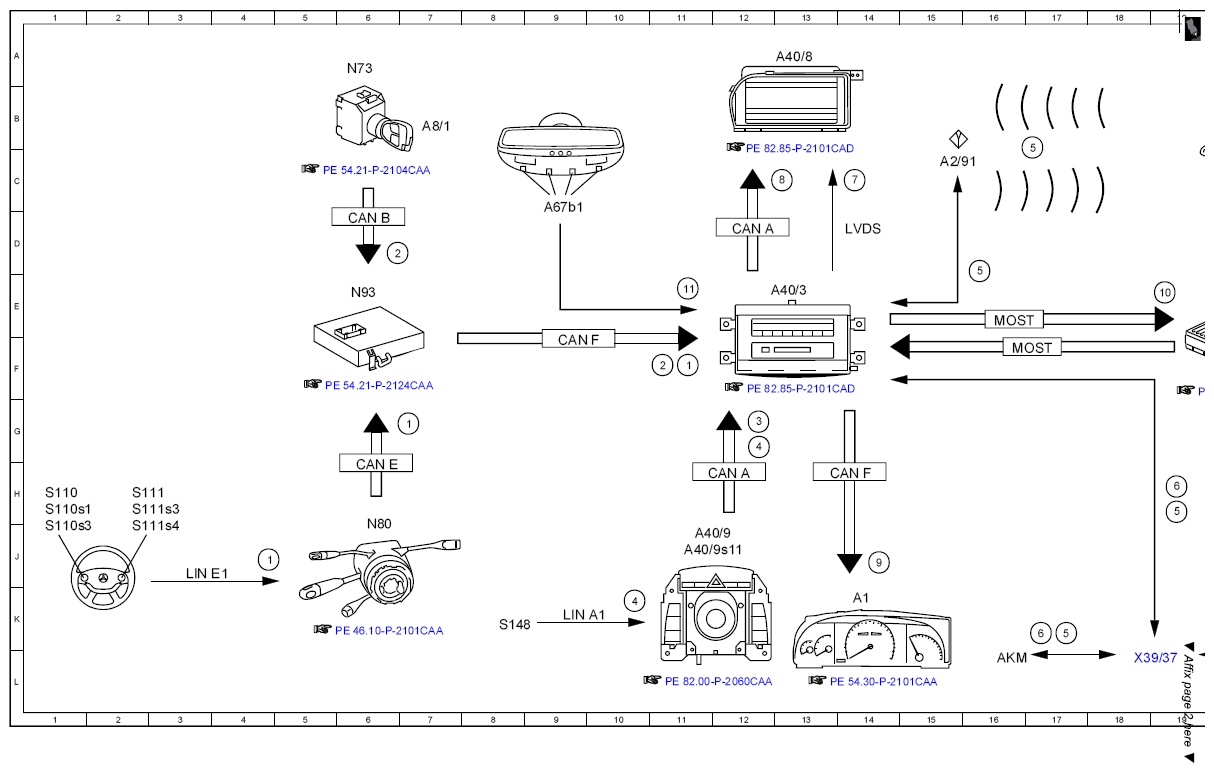

| 1 |
Multifunction steering wheel button group, signal |
4J |
| 1 |
Multifunction steering wheel button group, signal |
7G |
| 1 |
Multifunction steering wheel button group, signal |
11F |
| 2 |
Circuit 15R/circuit 15, status ON |
7D |
| 2 |
Circuit 15R/circuit 15, status ON |
11F |
| 3 |
|
12G |
| 4 |
|
12G |
| 4 |
|
10K |
| 5 |
Telephone, signal |
17K |
| 5 |
Telephone, signal |
19H |
| 5 |
Telephone, signal |
16E |
| 5 |
Telephone, signal |
17B |
| 5 |
Telephone, signal |
20K |
| 6 |
Switch on/off, signal |
17K |
| 6 |
Switch on/off, signal |
19H |
| 7 |
Audio/COMAND display, signal |
14C |
| 8 |
Switch-on request, signal |
13C |
| 9 |
|
14J |
| 10 |
Speaker, actuation |
19E |
| 10 |
Speaker, actuation |
20D |
| 11 |
Microphone, signal |
11E |
| A1 |
Instrument cluster |
14K |
| A2/49 |
Telephone and GPS antenna |
22K |
| A2/91 |
Bluetooth antenna |
15C |
| A40/3 |
COMAND control unit |
13E |
| A40/8 |
COMAND display |
13A |
| A40/9 |
Front central operating unit |
12J |
| A40/9s11 |
Turn/push control |
12J |
| A67b1 |
Hands-free system microphone group |
9D |
| A8/1 |
Transmitter key |
7B |
| CAN A |
Telematics CAN |
12D |
| CAN A |
Telematics CAN |
12H |
| CAN B |
Interior CAN |
6D |
| CAN E |
Chassis CAN |
6G |
| CAN F |
Central CAN |
9F |
| CAN F |
Central CAN |
14H |

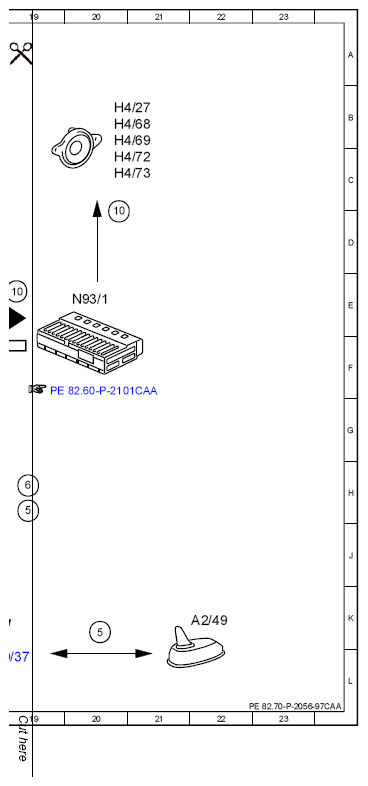

| H4/27 |
Center cockpit speaker (centerfill) |
21B |
| H4/68 |
Left door Sound tweeter |
21B |
| H4/69 |
Right door Sound tweeter |
21B |
| H4/72 |
Left door Sound woofer and midrange speaker group |
21C |
| H4/73 |
Right door Sound woofer and midrange speaker group |
21C |
| LIN A1 |
COU [ZBE] LIN |
9K |
| LIN E1 |
Steering LIN |
3J |
| LVDS |
Low voltage differential signal |
14D |
| MOST |
Media Oriented System Transport |
16E |
| MOST |
Media Oriented System Transport |
17F |
| N73 |
EIS [EZS] control unit |
6B |
| N80 |
Steering column module |
6J |
| N93 |
Central gateway control unit |
6E |
| N93/1 |
Audio tuner control unit |
20E |
| S110 |
Left multifunction steering wheel button group |
1H |
| S110s1 |
Scroll forward/back button |
1H |
| S110s3 |
System selection button |
1H |
| S111 |
Right multifunction steering wheel button group |
2H |
| S111s3 |
Accept/terminate phone call button |
2H |
| S111s4 |
VCS [SBS] on button |
2J |
| S148 |
Center console button group |
8K |
| X39/37 |
CTEL separation point |
19L |
