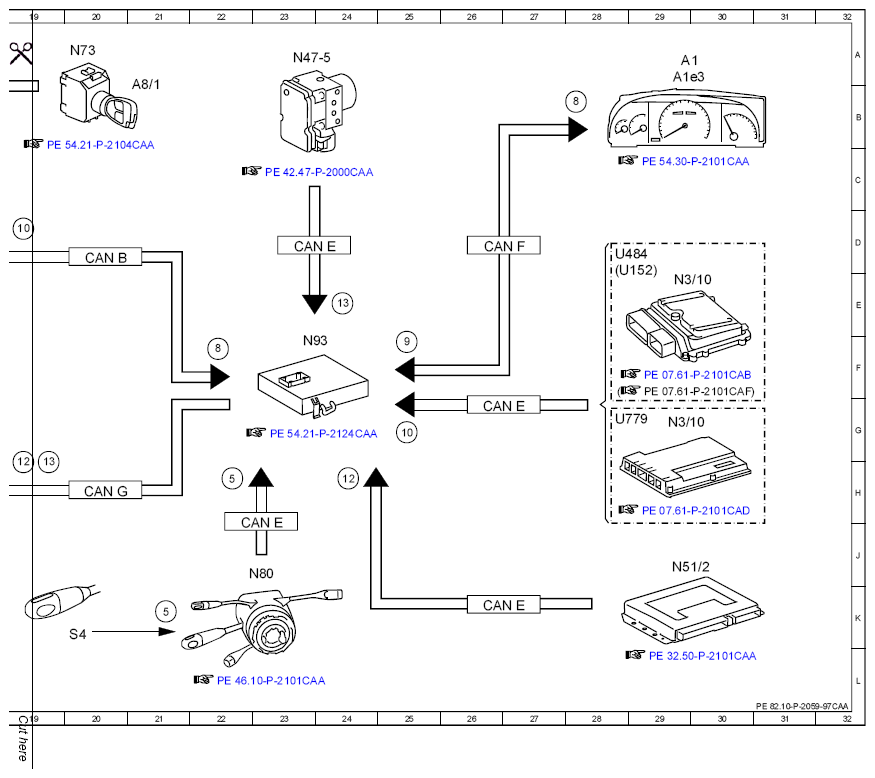

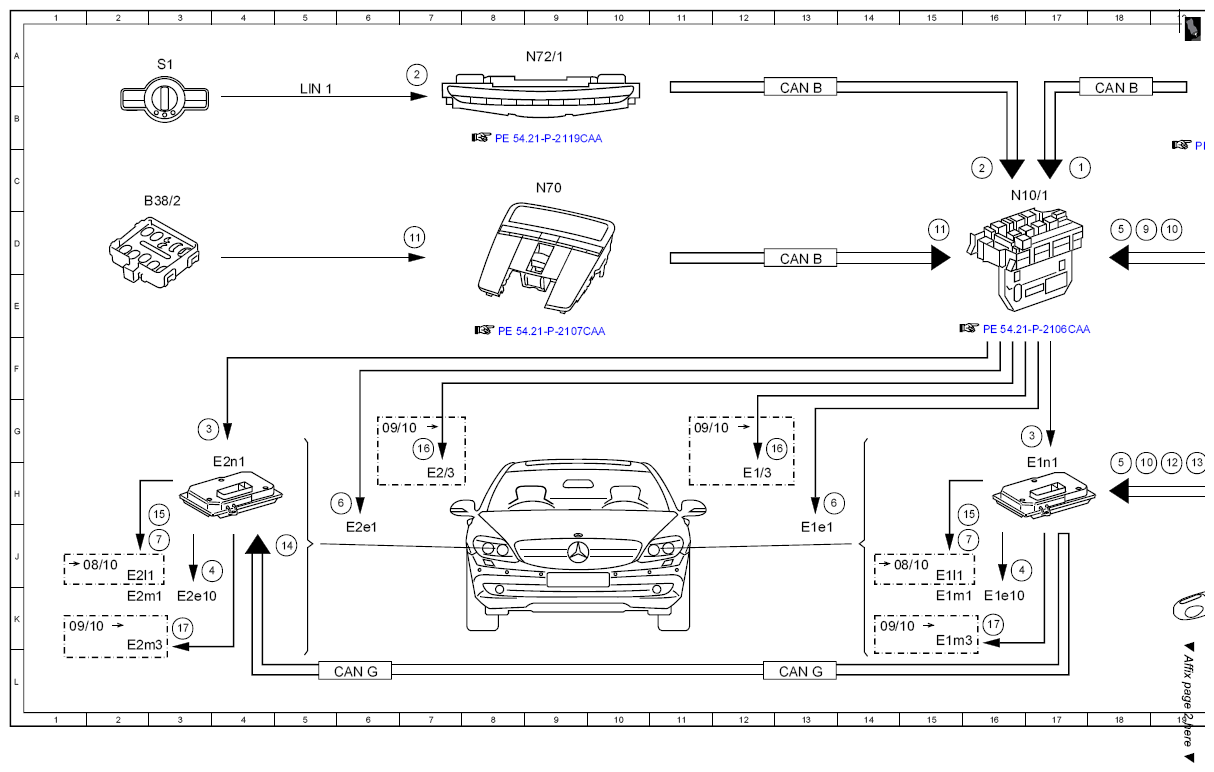

| 1 |
Circuit 15, status |
17C |
| 2 |
Rotary light switch, status |
16C |
| 2 |
Rotary light switch, status |
7A |
| 3 |
Low beams, request |
4G |
| 3 |
Low beams, request |
16G |
| 4 |
Bi-xenon lamp with integrated ignition module, actuation |
3J |
| 4 |
Bi-xenon lamp with integrated ignition module, actuation |
16J |
| 5 |
Combination switch, status |
21K |
| 5 |
Combination switch, status |
22H |
| 5 |
Combination switch, status |
18H |
| 5 |
Combination switch, status |
18D |
| 6 |
High beams, actuation |
6H |
| 6 |
High beams, actuation |
13H |
| 7 |
High beam solenoid, actuation |
3J |
| 7 |
High beam solenoid, actuation |
16J |
| 8 |
High beam indicator lamp, actuation |
22F |
| 8 |
High beam indicator lamp, actuation |
28B |
| 9 |
Daytime running lights, request |
25F |
| 9 |
Daytime running lights, request |
18D |
| 10 |
Circuit 61, status |
25G |
| 10 |
Circuit 61, status |
19D |
| 10 |
Circuit 61, status |
18H |
| 11 |
Rain/light sensor, status |
7D |
| 11 |
Rain/light sensor, status |
15D |
| 12 |
Level sensor, status |
24H |
| 12 |
Level sensor, status |
19H |
| 13 |
Wheel speed, signal |
19H |
| 13 |
Wheel speed, signal |
24E |
| 14 |
Synchronization, signal |
5J |
| 15 |
Headlamp range adjustment motor, actuation |
3H |
| 15 |
Headlamp range adjustment motor, actuation |
16H |
| 16 |
Daytime running lights, actuation |
7G |
| 16 |
Daytime running lights, actuation |
12G |
| 17 |
Light distribution actuator motor, actuation |
16K |
| 17 |
Light distribution actuator motor, actuation |
3K |
| A1 |
Instrument cluster |
29A |
| A1e3 |
High beam indicator lamp |
29A |
| A8/1 |
Transmitter key |
21B |
| B38/2 |
Rain/light sensor |
3C |
| CAN B |
Interior CAN |
13D |
| CAN B |
Interior CAN |
20D |
| CAN B |
Interior CAN |
13B |
| CAN B |
Interior CAN |
18B |
| CAN E |
Chassis CAN |
26G |
| CAN E |
Chassis CAN |
23J |
| CAN E |
Chassis CAN |
26K |
| CAN E |
Chassis CAN |
23D |
| CAN F |
Central CAN |
26D |
| CAN G |
Front end CAN |
6L |
| CAN G |
Front end CAN |
13L |
| CAN G |
Front end CAN |
20H |
| E1/3 |
Left daytime running lamps headlamp |
12H |
| E1e1 |
Left high beam/motorway spotlight |
13J |
| E1e10 |
Left bi-xenon lamp with integral ignition module |
16K |
| E1l1 |
Left high beam solenoid |
15J |
| E1m1 |
Left headlamp range adjustment motor |
15K |
| E1m3 |
Left light distribution actuator motor |
15K |
| E1n1 |
Xenon headlamp control unit |
17H |
| E2/3 |
Right daytime running lamps headlamp |
7H |
| E2e1 |
Right high beam/motorway spotlight |
6J |
| E2e10 |
Right bi-xenon lamp with integral ignition module |
3K |
| E2l1 |
Right high beam solenoid |
2J |
| E2m1 |
Right headlamp range adjustment motor |
2K |
| E2m3 |
Right light distribution actuator motor |
2K |
| E2n1 |
Xenon headlamp control unit |
4H |
| LIN 1 |
Instrument panel LIN |
5B |
| N10/1 |
Front SAM control unit with fuse and relay module |
16C |
| N3/10 |
ME-SFI [ME] control unit |
29G |
| N3/10 |
ME-SFI [ME] control unit |
29E |
| N47-5 |
ESP control unit |
23A |
| N51/2 |
ABC control unit |
29J |
| N70 |
Overhead control panel control unit |
9C |
| N72/1 |
Upper control panel control unit |
9A |
| N73 |
EIS [EZS] control unit |
20A |
| N80 |
Steering column module |
23J |
| N93 |
Central gateway control unit |
23F |
| S1 |
Rotary light switch |
3A |
| S4 |
Combination switch |
20K |
| U484 |
Valid for M273 ME |
28D |
| U779 |
Valid for engine 275 |
28G |
