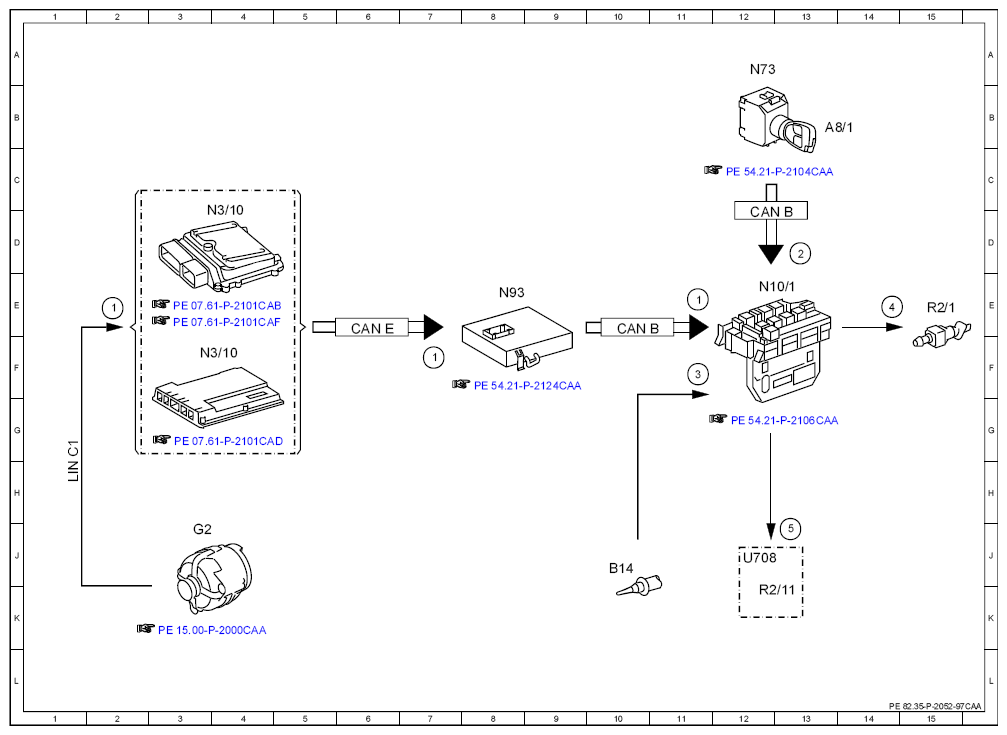

| 1 |
Circuit 61, status |
7F |
| 1 |
Circuit 61, status |
11E |
| 1 |
Circuit 61, status |
2E |
| 2 |
Circuit 15, status |
13D |
| 3 |
Outside temperature indicator temperature sensor, signal |
11F |
| 4 |
Washer nozzle heater, actuation |
15E |
| 5 |
Washer nozzle hose heater, actuation |
13J |
| A8/1 |
Transmitter key |
13B |
| B14 |
Outside temperature display temperature sensor |
10J |
| CAN B |
Interior CAN |
10E |
| CAN B |
Interior CAN |
12C |
| CAN E |
Chassis CAN |
6E |
| G2 |
Alternator |
3J |
| LIN C1 |
Drive train LIN |
1G |
| N10/1 |
Front SAM control unit with fuse and relay module |
13E |
| N3/10 |
ME-SFI [ME] control unit |
4D |
| N3/10 |
ME-SFI [ME] control unit |
4F |
| N73 |
EIS [EZS] control unit |
12B |
| N93 |
Central gateway control unit |
8E |
| R2/1 |
Washer nozzle heater |
15E |
| R2/11 |
Washer nozzle hose heater |
12K |
| U708 |
Valid for washer nozzle hose heater |
12J |
