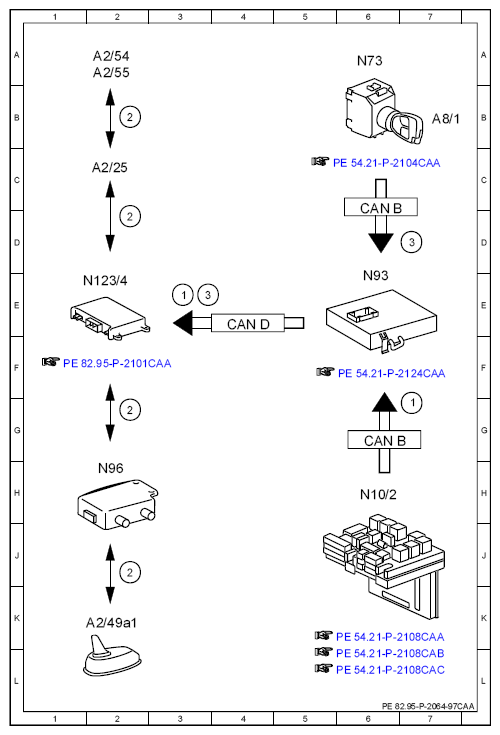

| 1 |
ATA [EDW] alarm, signal |
7G |
| 1 |
ATA [EDW] alarm, signal |
3E |
| 2 |
Telephone, signal |
2D |
| 2 |
Telephone, signal |
2B |
| 2 |
Telephone, signal |
2G |
| 2 |
Telephone, signal |
2J |
| 3 |
Circuit 15, status |
4E |
| 3 |
Circuit 15, status |
7D |
| A2/25 |
Emergency call system antenna splitter |
2C |
| A2/49a1 |
Telephone antenna |
2L |
| A2/54 |
Emergency call system left backup antenna |
2A |
| A2/55 |
Emergency call system right backup antenna |
2A |
| A8/1 |
Transmitter key |
7B |
| CAN B |
Interior CAN |
6C |
| CAN B |
Interior CAN |
7G |
| CAN D |
Diagnostic CAN |
4E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
6H |
| N123/4 |
Emergency call system control unit |
2E |
| N73 |
EIS [EZS] control unit |
6B |
| N93 |
Central gateway control unit |
6E |
| N96 |
Frequency switchover control unit |
2H |
