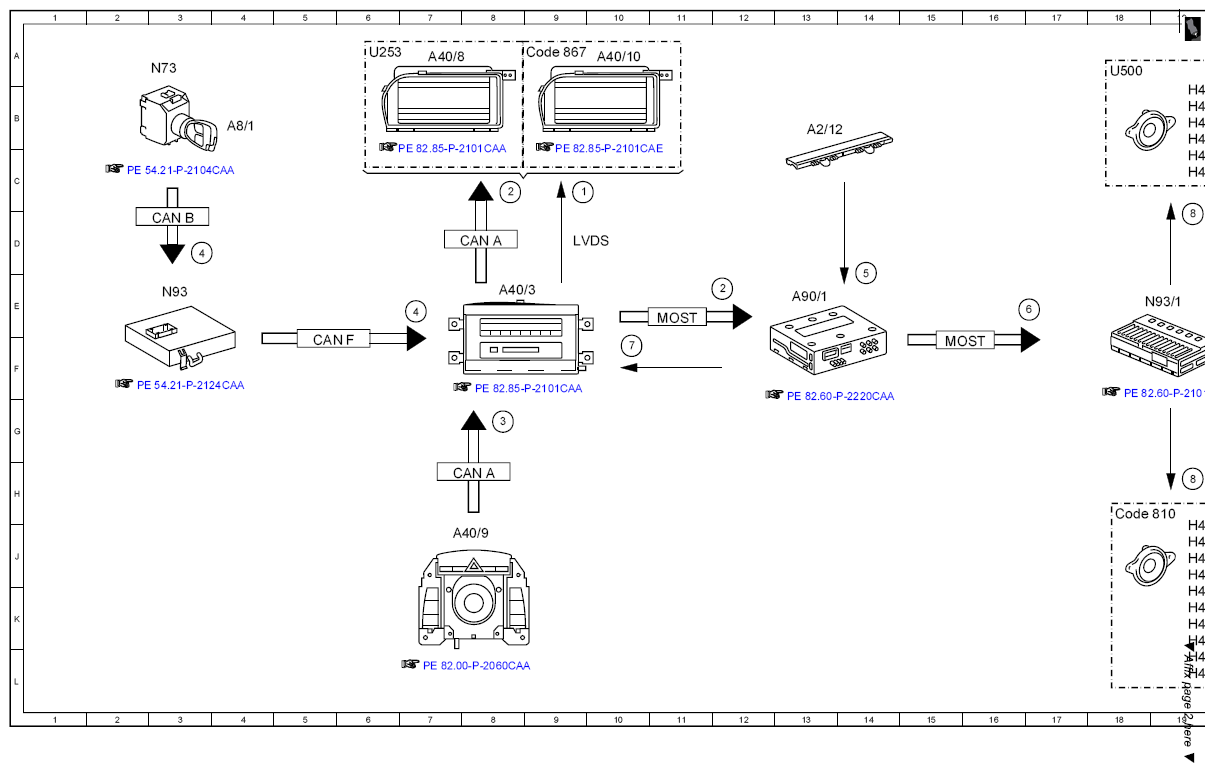

| 1 |
Audio/COMAND display, signal |
10C |
| 2 |
Switch-on request, signal |
8C |
| 2 |
Switch-on request, signal |
12E |
| 3 |
|
8G |
| 4 |
Circuit 15R/circuit 15, status ON |
3D |
| 4 |
Circuit 15R/circuit 15, status ON |
7E |
| 5 |
TV antennas, signal |
14E |
| 6 |
Audio applications, signal |
17E |
| 7 |
Video and TV, signal |
10F |
| 8 |
Speaker, actuation |
19H |
| 8 |
Speaker, actuation |
19D |
| A2/12 |
Rear window antenna amplifier module |
13B |
| A40/10 |
SPLITVIEW display |
10A |
| A40/3 |
COMAND control unit |
8E |
| A40/8 |
COMAND display |
7A |
| A40/9 |
Front central operating unit |
8J |
| A8/1 |
Transmitter key |
4B |
| A90/1 |
TV combination tuner (analog/digital) |
13E |
| CAN A |
Telematics CAN |
8D |
| CAN A |
Telematics CAN |
8H |
| CAN B |
Interior CAN |
3D |
| CAN F |
Central CAN |
6E |
| Code 810 |
Sound system |
18H |
| Code 867 |
SPLITVIEW |
9A |
| H4/1 |
Left door speaker group |
19B |
| H4/17 |
Bass module speaker |
19C |
| H4/17 |
Bass module speaker |
19J |
| H4/2 |
Right door speaker group |
19B |
| H4/27 |
Center cockpit speaker (centerfill) |
19C |
| H4/27 |
Center cockpit speaker (centerfill) |
19J |
| H4/3 |
Left door rear speaker |
19B |
| H4/3 |
Left door rear speaker |
19J |
| H4/4 |
Right door rear speaker |
19B |
| H4/4 |
Right door rear speaker |
19J |
| H4/54 |
Left rear surround speaker |
19K |
| H4/57 |
Right rear surround speaker |
19K |
| H4/68 |
Left door Sound tweeter |
19K |
| H4/69 |
Right door Sound tweeter |
19K |
| H4/72 |
Left door Sound woofer and midrange speaker group |
19L |
| H4/73 |
Right door Sound woofer and midrange speaker group |
19L |
| LVDS |
Low voltage differential signal |
10D |
| MOST |
Media Oriented System Transport |
11E |
| MOST |
Media Oriented System Transport |
16F |
| N73 |
EIS [EZS] control unit |
3A |
| N93 |
Central gateway control unit |
3E |
| N93/1 |
Audio tuner control unit |
19E |
| U253 |
Not valid for SPLITVIEW display |
6A |
| U500 |
Not valid for Sound System |
18A |
