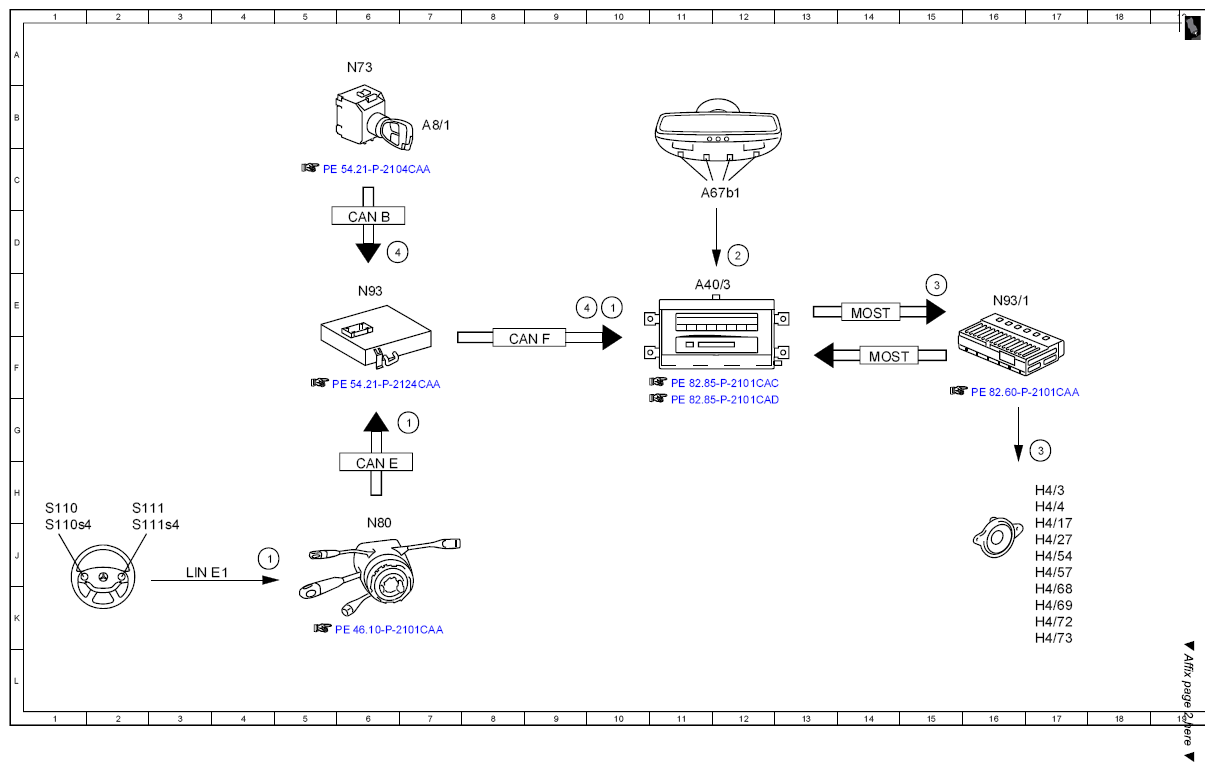

| 1 |
Multifunction steering wheel button group, signal |
7G |
| 1 |
Multifunction steering wheel button group, signal |
4J |
| 1 |
Multifunction steering wheel button group, signal |
10E |
| 2 |
Microphone, signal |
12D |
| 3 |
Speaker, actuation |
15E |
| 3 |
Speaker, actuation |
17G |
| 4 |
Circuit 15R/circuit 15, status ON |
10E |
| 4 |
Circuit 15R/circuit 15, status ON |
7D |
| A40/3 |
COMAND control unit |
12E |
| A67b1 |
Hands-free system microphone group |
12C |
| A8/1 |
Transmitter key |
7B |
| CAN B |
Interior CAN |
6D |
| CAN E |
Chassis CAN |
6G |
| CAN F |
Central CAN |
9E |
| H4/17 |
Bass module speaker |
17H |
| H4/27 |
Center cockpit speaker (centerfill) |
17J |
| H4/3 |
Left door rear speaker |
17H |
| H4/4 |
Right door rear speaker |
17H |
| H4/54 |
Left rear surround speaker |
17J |
| H4/57 |
Right rear surround speaker |
17J |
| H4/68 |
Left door Sound tweeter |
17K |
| H4/69 |
Right door Sound tweeter |
17K |
| H4/72 |
Left door Sound woofer and midrange speaker group |
17K |
| H4/73 |
Right door Sound woofer and midrange speaker group |
17K |
| LIN E1 |
Steering LIN |
3J |
| MOST |
Media Oriented System Transport |
14E |
| MOST |
Media Oriented System Transport |
14F |
| N73 |
EIS [EZS] control unit |
6B |
| N80 |
Steering column module |
6H |
| N93 |
Central gateway control unit |
6E |
| N93/1 |
Audio tuner control unit |
16E |
| S110 |
Left multifunction steering wheel button group |
1H |
| S110s4 |
"Back" and SBS off button |
1H |
| S111 |
Right multifunction steering wheel button group |
2H |
| S111s4 |
VCS [SBS] on button |
2H |
