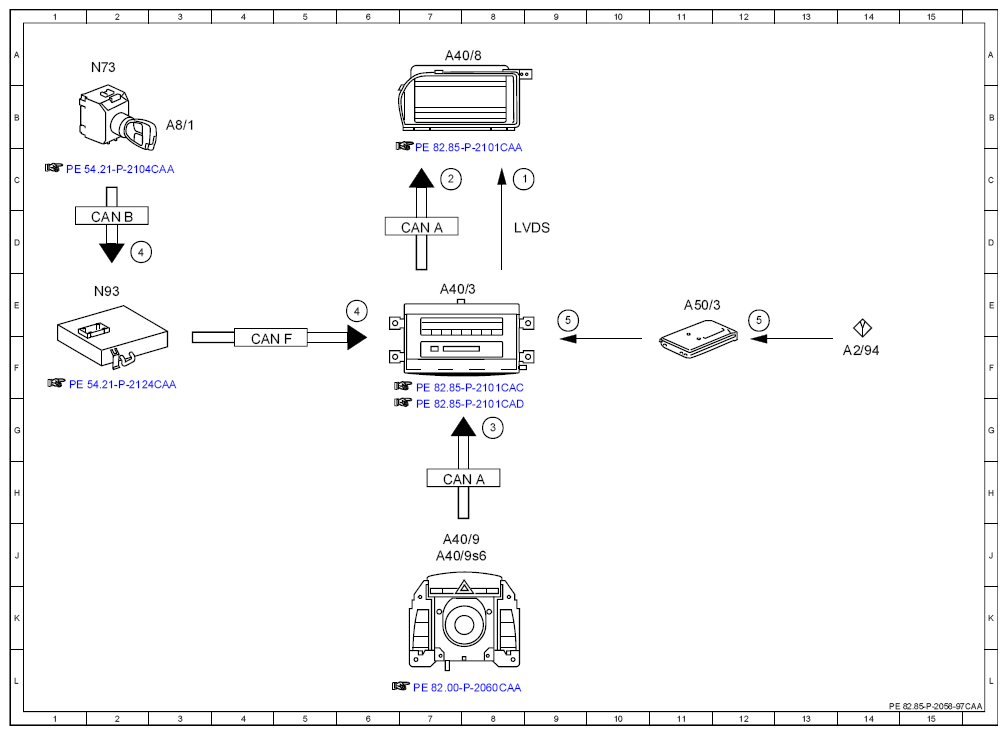

| 1 |
Audio/COMAND display, signal |
9C |
| 2 |
Switch-on request, signal |
7C |
| 3 |
|
8G |
| 4 |
Circuit 15R/circuit 15, status ON |
6E |
| 4 |
Circuit 15R/circuit 15, status ON |
3D |
| 5 |
Electronic Toll Collection (ETC), signal |
9E |
| 5 |
Electronic Toll Collection (ETC), signal |
12E |
| A2/94 |
Electronic toll collection (ETC) antenna |
14E |
| A40/3 |
COMAND control unit |
8E |
| A40/8 |
COMAND display |
8A |
| A40/9 |
Front central operating unit |
7J |
| A40/9s6 |
Button "ON" |
7J |
| A50/3 |
Electronic toll collection (ETC) control unit |
11E |
| A8/1 |
Transmitter key |
3B |
| CAN A |
Telematics CAN |
7H |
| CAN A |
Telematics CAN |
7D |
| CAN B |
Interior CAN |
2D |
| CAN F |
Central CAN |
4E |
| LVDS |
Low voltage differential signal |
9D |
| N73 |
EIS [EZS] control unit |
2B |
| N93 |
Central gateway control unit |
2E |
