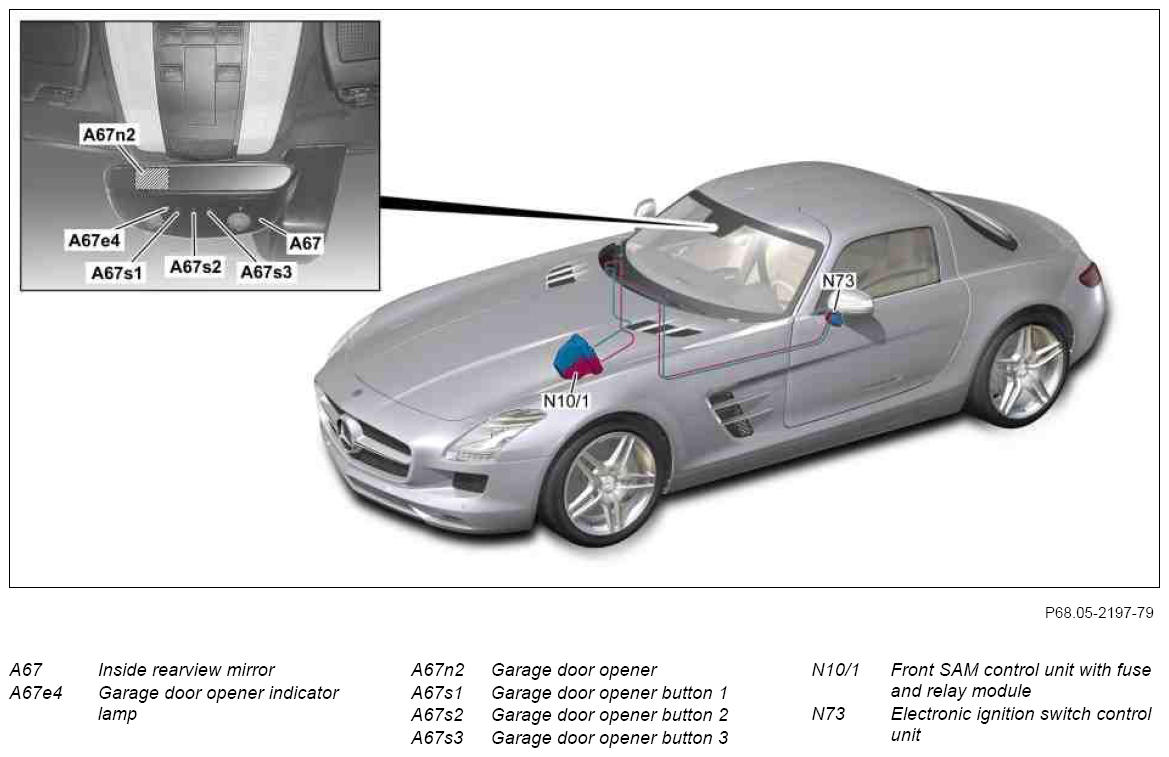

Overview of system components for garage door opener - GF68.05-P-9998RQ
MODEL 197 with CODE (231) Garage door opener with CODE (232) Garage door opener with frequency 284-390 MHz
Shown on model 197.3
| Front SAM control unit with fuse and relay module, component description | N10/1 | GF54.21-P-6070RQ |
| Component description for the electronic ignition switch control unit | N73 | GF80.57-P-6001RQ |
| Table of contents for function description of garage door opener | see GF68.05-P-0999RQ |
