Remove/install lock cylinder on glove compartment lock - AR68.10-P-1250SX

MODEL 164, 166, 204, 207, 212, 216.3, 221.0 /1, 251

Shown on model 221

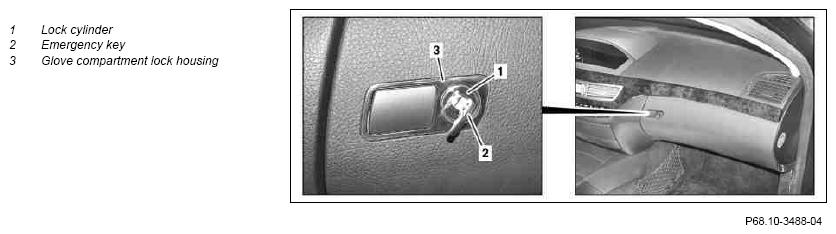

Fig 1: Identifying Lock Cylinder, Emergency Key And Glove Compartment Lock Housing (Shown On Model 221)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Insert emergency key (2) into lock cylinder (1) and turn counterclockwise with aid of pliers until the lock cylinder (1) releases	Turn lock cylinder (1) clockwise until lock cylinder (1) arrests audibly.
2	Pull lock cylinder (1) and emergency key (2) out of glove compartment lock housing (3)
3	Install in the reverse order
