Retrofit Mercedes-Benz InCar Internet control unit - AZ82.85-P-0005-04SX

Connection scheme

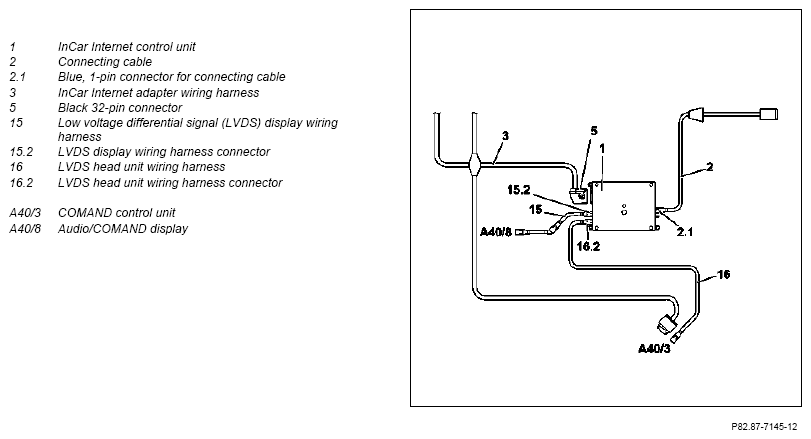

Fig 1: Identifying Connection Scheme Of Retrofit Mercedes-Benz In-car Internet Control Unit

Courtesy of MERCEDES-BENZ USA

Routing diagram, shown on model 221

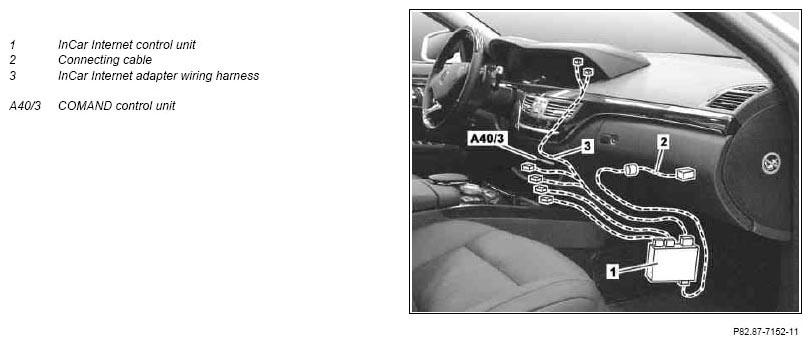

Fig 2: Identifying Retrofitted Mercedes-Benz In-car Internet Control Unit Routing Diagram

Courtesy of MERCEDES-BENZ USA

1. Connect black 32-pin connector (5) of InCar Internet adapter wiring harness (3) to InCar Internet control unit (1).
   Fig 3: Identifying In-car Internet Adapter Wiring Harness Routing Diagram

   Courtesy of MERCEDES-BENZ USA
2. Connect LVDS display wiring harness connector (15.2) of LVDS display wiring harness (15) and LVDS head unit wiring harness connector (16.2) of LVDS head unit wiring harness (16), as shown, to the InCar Internet control unit (1).
   Fig 4: Identifying LVDS Display Wiring Harness Routing Diagram

   Courtesy of MERCEDES-BENZ USA
3. Place glove box into front passenger footwell.
4. Connect connecting cable blue 1-pin connector (2.1) of connecting cable (2) to InCar Internet control unit (1).
5. Clamp InCar Internet control unit (1) in between footrest and propeller shaft tunnel and fasten in place using felt tape (arrows).

   Do not compress the condensation water drain hose (20) of the air conditioner housing. The A/C system's condensation drain may no longer function properly.

   Fig 5: Identifying Clamping In-car Internet Control Unit

   Courtesy of MERCEDES-BENZ USA
6. Cut foam material (25) on floor covering (24) (along broken line) and remove.
