Retrofit InCar Hotspot wiring harness - AZ82.80-P-0002-01SX

Connection scheme

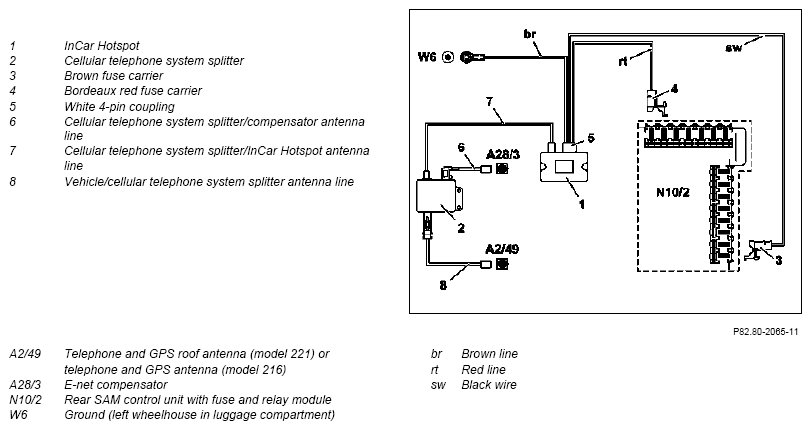

Fig 1: Identifying Retrofitted In-car Hotspot Wiring Harness Connection Diagram

Courtesy of MERCEDES-BENZ USA

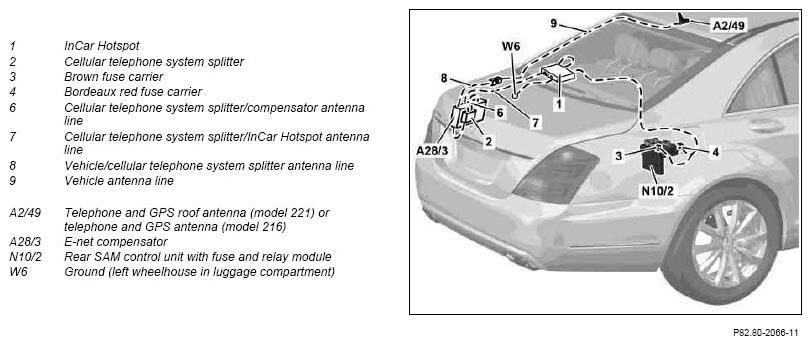

Routing diagram

Fig 2: Identifying Retrofitted In-car Hotspot Wiring Harness Routing Diagram

Courtesy of MERCEDES-BENZ USA

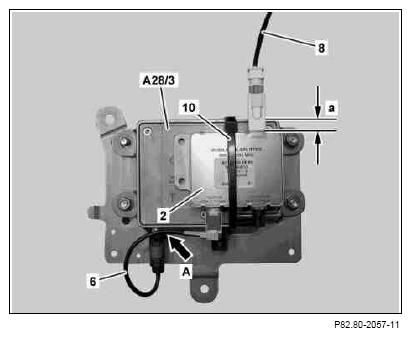

1. Clean surface of E-net compensator (A28/3) and back of cellular telephone system splitter (2) and glue double-sided adhesive tape strips contained in delivery contents onto back of cellular telephone system splitter (2).
2. Glue cellular telephone system splitter (2), as shown, with distance (a) to outer edge of E-net compensator (A28/3) and also fix in place with cable tie (10).

   Always observe distance (a). Otherwise the vehicle/cellular telephone system splitter antenna line (8) chafes in the area of the white 1-pin plug at the body.

   Dimensions:

   a =5 mm

   Fig 3: Identifying E-Net Compensator (A28/3) Connectors

   Courtesy of MERCEDES-BENZ USA
3. Plug black coupling of cellular telephone system splitter/compensator antenna line (6) onto connector (arrow A) at E-net compensator (A28/3).
4. Plug black coupling of vehicle/cellular telephone system splitter antenna line (8) into connector of vehicle antenna line (9) and wrap felt tape around connector created.

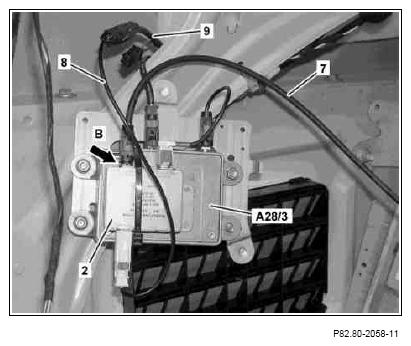

5. Plug black coupling of cellular telephone system splitter/InCar Hotspot antenna line (7) onto connector (arrow B) at cellular telephone system splitter (2).
6. Route cellular telephone system splitter/InCar Hotspot antenna line (7) along existing wiring harness to planned installation location of InCar Hotspot and fix in place with cable ties.
   Fig 4: Identifying Cellular Telephone System Splitter Connector

   Courtesy of MERCEDES-BENZ USA

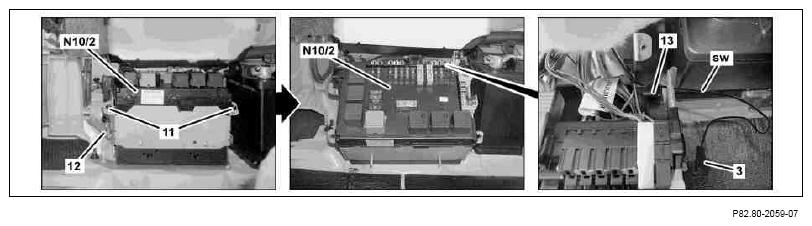

   Fig 5: Identifying Relay Module, Bracket And SAM Control Unit

   Courtesy of MERCEDES-BENZ USA
7. Remove screws/bolts (11) in trunk, guide rear SAM control unit with fuse and relay module (N10/2) out of bracket (12) toward rear and tip onto side.
8. Release bracket (13) at rear SAM control unit with fuse and relay module (N10/2) and fold away.
9. Route black line (sw) with brown fuse carrier (3) to fuse strip at right of rear SAM control unit with fuse and relay module (N10/2) and lock bracket (13).
10. Plug brown fuse carrier (3) into slot "133" of rear SAM control unit with fuse and relay module (N10/2) and lock.

    Individual slots are numbered on housing of rear SAM control unit with fuse and relay module (N10/2).

11. Plug Bordeaux red fuse carrier (4) into slot "147" of rear SAM control unit with fuse and relay module (N10/2) and lock.

    If slot "147" is occupied, slot "145" or slot "146" is to be used as an alternative.

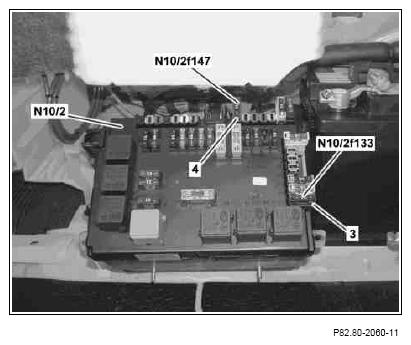

    Fig 6: Identifying Relay Module (N10/2) And Red Fuse Carrier

    Courtesy of MERCEDES-BENZ USA
12. Plug fuse 133 (N10/2f133) into brown fuse carrier (3) and fuse 147 (N10/2f147) into Bordeaux red fuse carrier (4).

    Fuse 133 (N10/2f133) and fuse 147 (N10/2f147) must have a fuse rating of 7.5 A.

13. Position rear SAM control unit with fuse and relay module (N10/2) in bracket (12) and tighten screws/bolts (11).

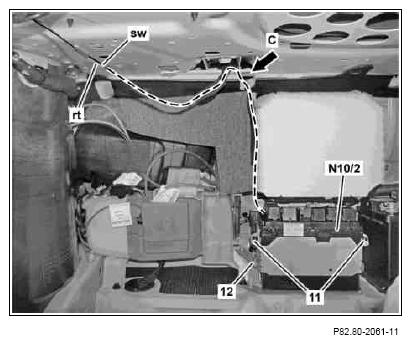

14. Wrap felt tape around red line (rt) and black line (sw) in area of support of left top-rear rear shelf reinforcement (arrow C) and route to installation location of InCar Hotspot, as shown.

    In area of support of left top-rear rear shelf reinforcement (arrow C), make sure that red line (rt) and black line (sw) cannot chafe.

    Fig 7: Identifying Rear Shelf Reinforcement

    Courtesy of MERCEDES-BENZ USA
15. Fasten brown line (br) at left wheel arch trunk ground (W6).
16. Route brown line (br) along existing wiring harness and fix in place with cable ties.

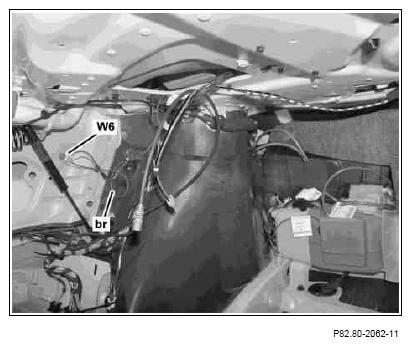

    Fig 8: Identifying Wheel Arch Trunk Ground And Brown Line

    Courtesy of MERCEDES-BENZ USA
17. Drill hole (arrow D), as shown, with a diameter of 13 mm in center at raised area in top paneling (14).

    Cordless drill/driver

18. Unclip dowel (15) at bag holder (16) and clip into corresponding supports in body.

    Bag holder (16) is no longer required.

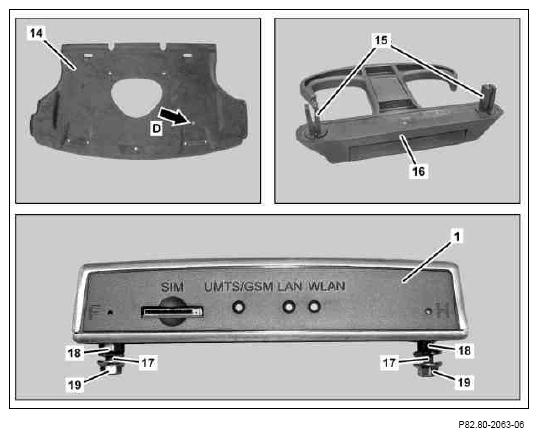

    Fig 9: Identifying Drilled Hole

    Courtesy of MERCEDES-BENZ USA
19. Fasten screws/bolts M4 x16 (17) with nuts (18), as shown, at InCar Hotspot (1) and loosely tighten additional nuts (19).

    Nuts (18) are used as spacers.

20. Hook top paneling (14) in supports at body, guide white 4-pin coupling (5) and violet coupling of cellular telephone system splitter/InCar Hotspot antenna line (7) through drilled hole in top paneling (14) and fix top paneling (14) in place with an expansion clip.
21. Equip screws/bolts (21) of bag holder with washers contained in delivery contents and fasten holder (20) to body.

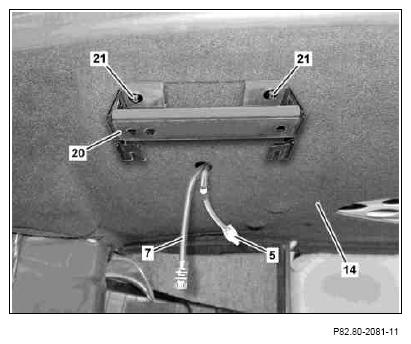

    Fig 10: Identifying Body Paneling, Guide White 4-Pin Coupling, Cellular Telephone System Splitter/InCar Hotspot Antenna Line And Mounting Screw/Bolts

    Courtesy of MERCEDES-BENZ USA
22. Insert a sharpened punch (22) with a diameter of 2 mm into holes in holder (20) and punch body at this point.
23. Coat screw/bolt (23) with grease and screw into resulting opening.

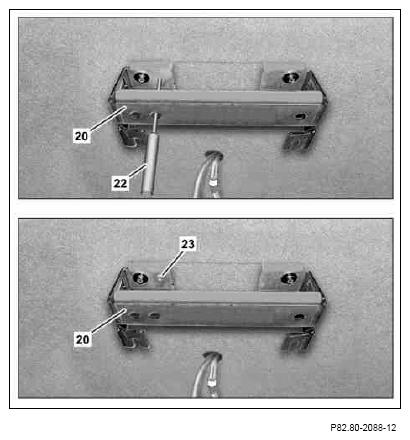

    Fig 11: Identifying Sharpened Punch, Holder And Mounting Screw/Bolt

    Courtesy of MERCEDES-BENZ USA
24. Insert InCar Hotspot (1) in bracket (20) and tighten nuts (19).
25. Connect white 4-pin coupling and violet coupling of cellular telephone system splitter/InCar Hotspot antenna line at InCar Hotspot (1).
26. Clip bag hooks (24) contained in delivery contents into holder (20).

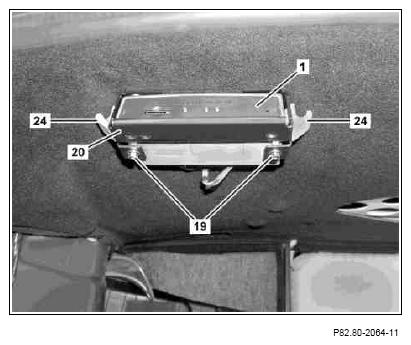

    Fig 12: Identifying InCar Hotspot, Bracket, Nuts And Clip Bag Hooks
