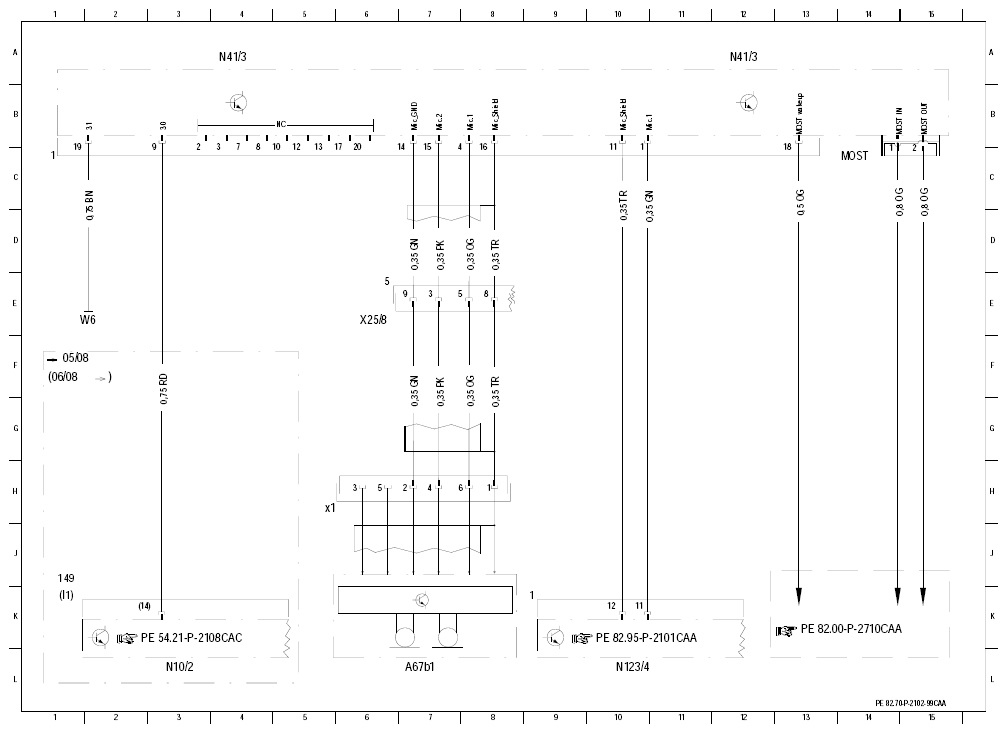

Voice control system (VCS [SBS]) control unit wiring diagram - PE82.70-P-2102-99CAA
| Code: | Designation: | Position: |
|---|---|---|
| A67b1 | Hands-free system microphone group | 6L |
| A67b1x1 | Hands-free system microphone group connector | 4H |
| N10/2 | Rear SAM control module with fuse and relay module | 2L |
| N123/4 | Emergency call system control unit | 9L |
| N41/3 | Voice control system (VCS [SBS]) control unit | 4A |
| N41/3 | Voice control system (VCS [SBS]) control unit | 11A |
| W6 | Ground (left wheel well in trunk) | 2E |
| X25/8 | Overhead control panel and FFS [RBA] connector | 5E |
