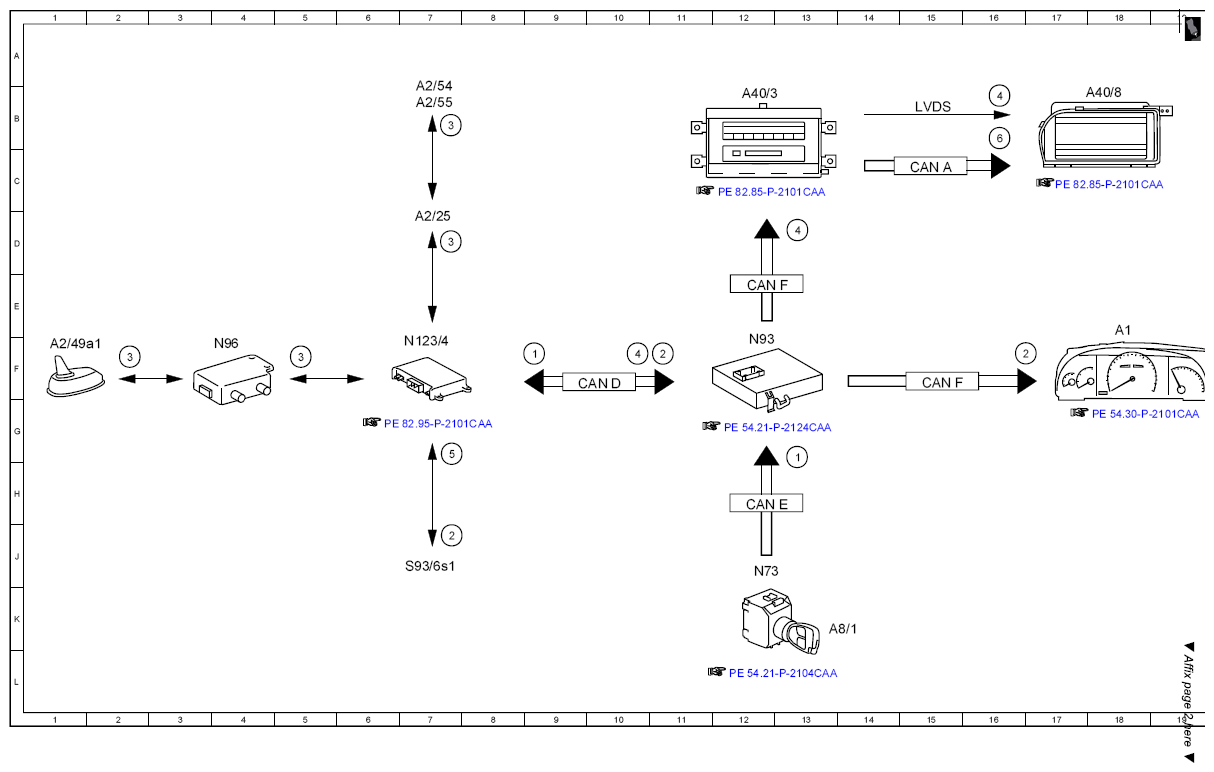

| 1 |
Circuit 15R/circuit 15, status ON |
9F |
| 1 |
Circuit 15R/circuit 15, status ON |
13G |
| 2 |
Status indication, signal |
11F |
| 2 |
Status indication, signal |
17F |
| 2 |
Status indication, signal |
7F |
| 3 |
Telephone, signal |
2F |
| 3 |
Telephone, signal |
5F |
| 3 |
Telephone, signal |
7B |
| 3 |
Telephone, signal |
7D |
| 4 |
COMAND display, message |
11F |
| 4 |
COMAND display, message |
13D |
| 4 |
COMAND display, message |
16B |
| 5 |
MB-Info, signal |
7G |
| 6 |
Switch on/off, signal |
16B |
| A1 |
Instrument cluster |
18F |
| A2/25 |
Emergency call system antenna splitter |
7D |
| A2/49a1 |
Telephone antenna |
1F |
| A2/54 |
Emergency call system left backup antenna |
7B |
| A2/55 |
Emergency call system right backup antenna |
7B |
| A40/3 |
COMAND control unit |
12B |
| A40/8 |
COMAND display |
18B |
| A8/1 |
Transmitter key |
12K |
| CAN A |
Telematics CAN |
15C |
| CAN D |
Diagnostic CAN |
10F |
| CAN E |
Chassis CAN |
12H |
| CAN F |
Central CAN |
15F |
| CAN F |
Central CAN |
12E |
| LVDS |
Low voltage differential signal |
15B |
| N123/4 |
Emergency call system control unit |
7F |
| N73 |
EIS [EZS] control unit |
12K |
| N93 |
Central gateway control unit |
12F |
| N96 |
Frequency switchover control unit |
4F |
| S93/6s1 |
MB-Info button |
7J |
