Cockpit Management and Data System (COMAND) control unit wiring diagram - PE82.85-P-2101-97CAC

Code:	Designation:	Position:
A0	Color code key	40L
A2/12	Rear window antenna amplifier module	4L
A2/12	Rear window antenna amplifier module	34L
A2/37	VICS control unit	27L
A2/49	Telephone and GPS antenna	33L
A2/49a2	GPS antenna	32L
A2/79	TV antenna selector	12L
A2/91	Bluetooth antenna	30L
A2/91x1	Bluetooth antenna connector	29J
A2/94	Electronic toll collection (ETC) antenna	24L
A40/3	COMAND control unit	14A
A40/3	COMAND control unit	20A
A40/3	COMAND control unit	28A
A40/3	COMAND control unit	35A
A50/3	Electronic toll collection (ETC) control unit	20L
F1/7	Left instrument panel fuse box	25L
F1/7f106	Fuse 106	25K
U12	Valid for left-hand drive vehicles	20E
U12	Valid for left-hand drive vehicles	29D
U13	Valid for right-hand drive vehicles	29E
W34	Ground (left footwell)	20E
X1/16	Roof antenna connector	13E
X1/16	Roof antenna connector	34F
Z6/30	Circuit 31 connector sleeve	19H
Z7/40	Tml. 30 connector sleeve	13G

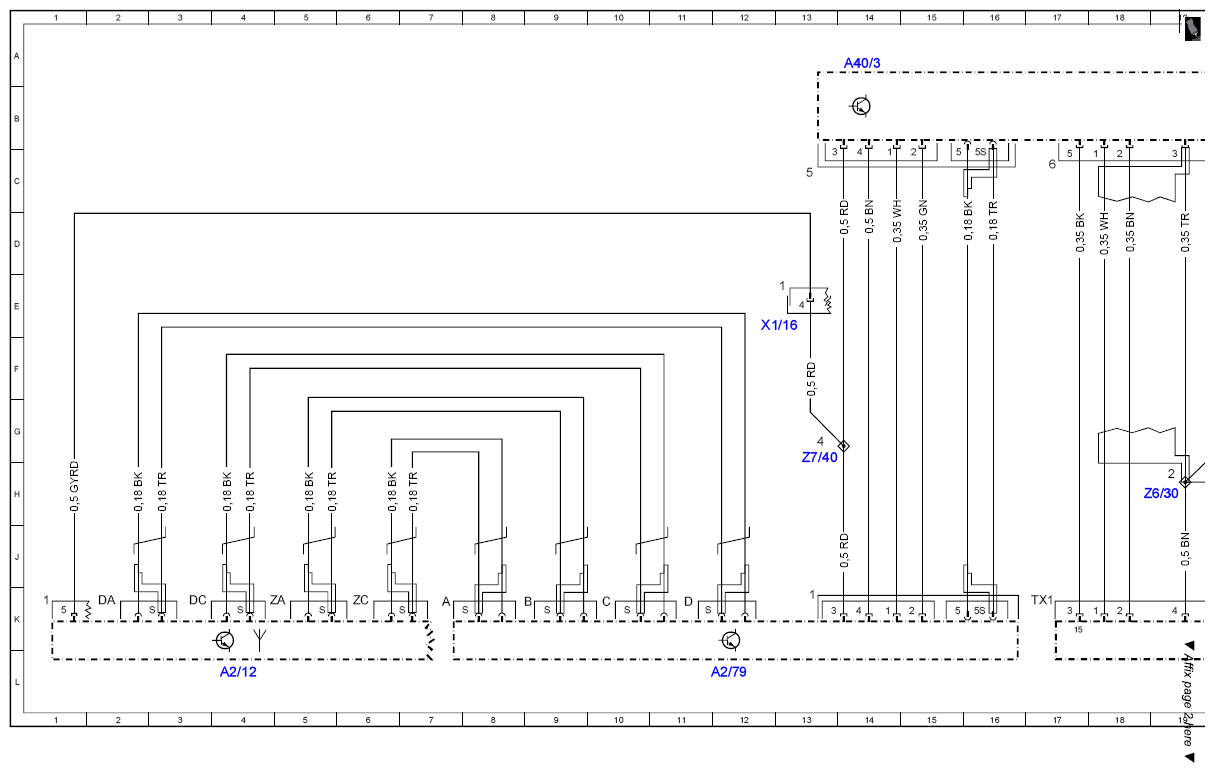

Fig 1: Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

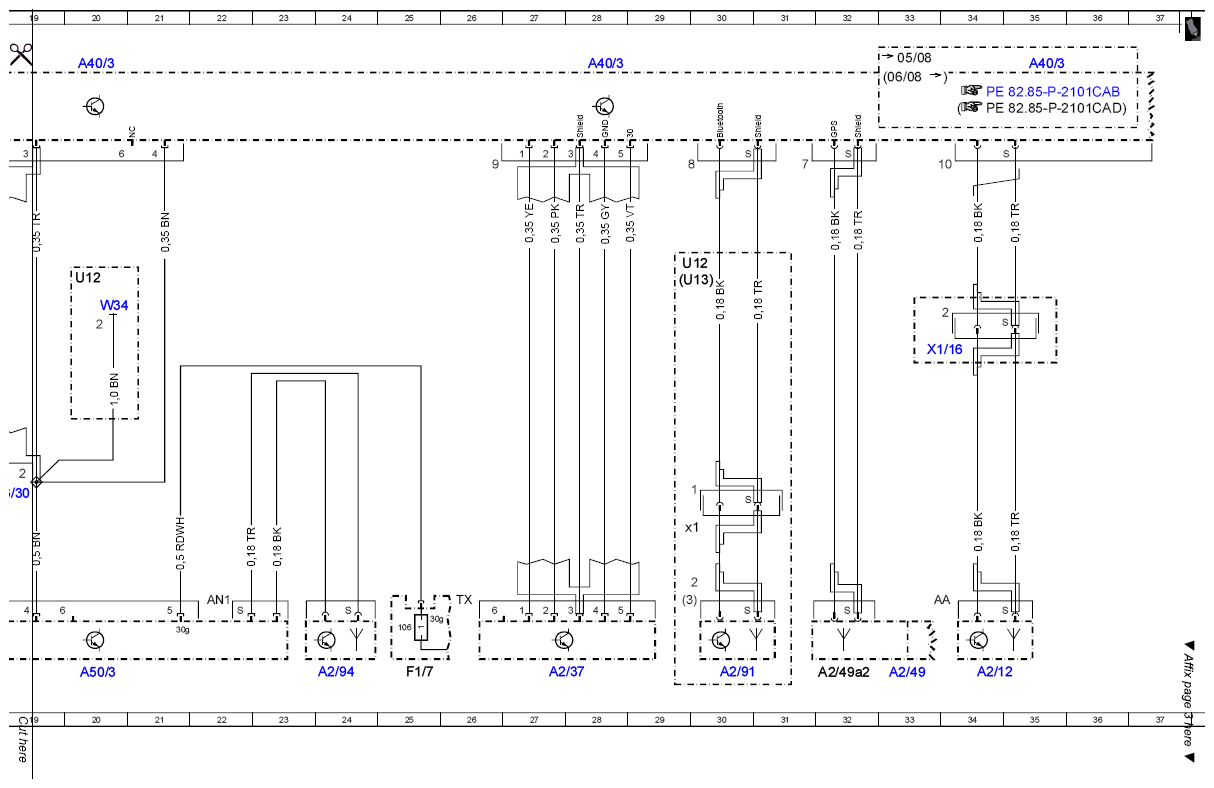

Fig 2: Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 3: Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
