| A0 |
Color code key |
56L |
| A2/49 |
Telephone and GPS antenna |
40L |

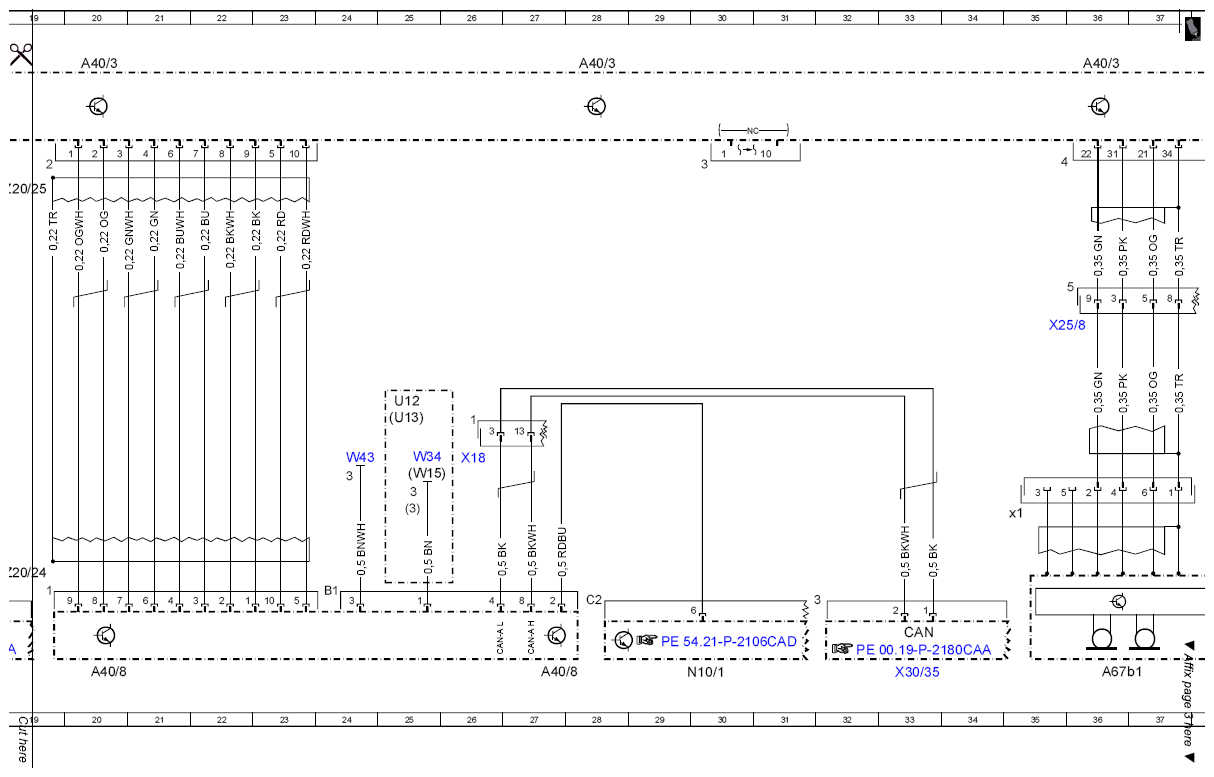

| A2/49a1 |
Telephone antenna |
39L |

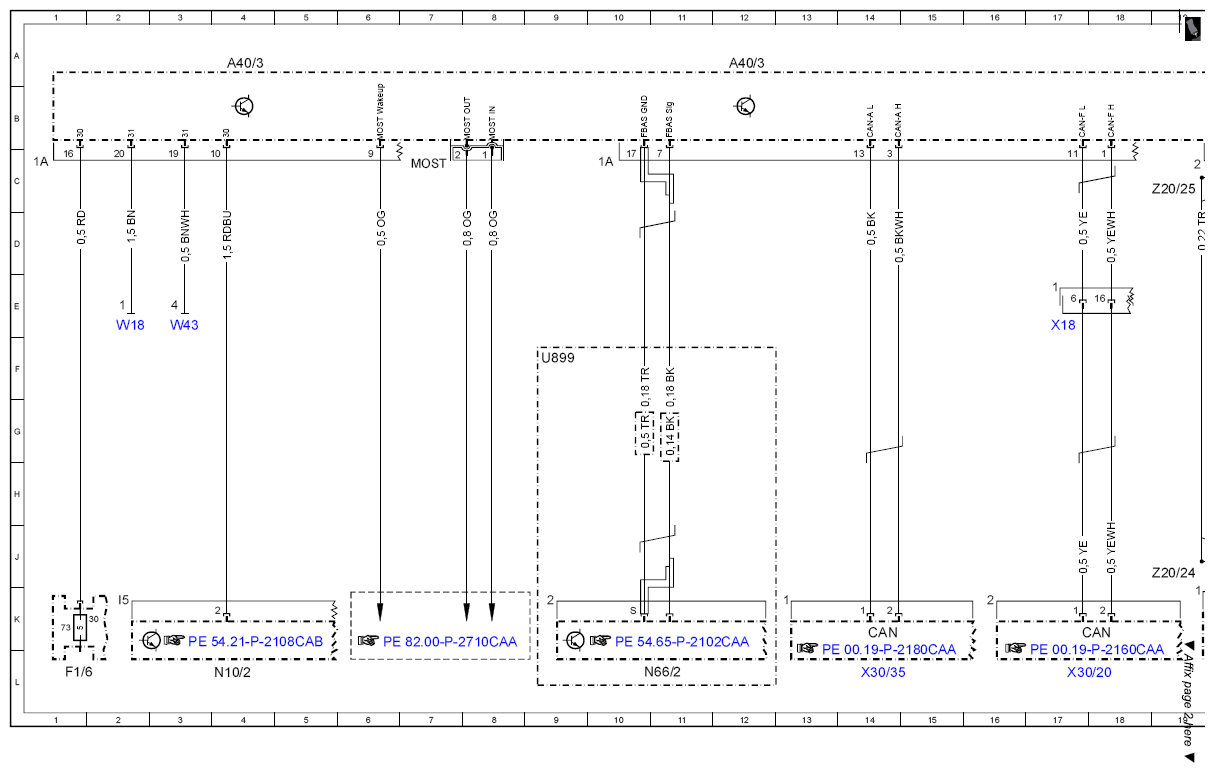

| A40/3 |
COMAND control unit |
4A |
| A40/3 |
COMAND control unit |
12A |
| A40/3 |
COMAND control unit |
20A |
| A40/3 |
COMAND control unit |
28A |
| A40/3 |
COMAND control unit |
36A |
| A40/3 |
COMAND control unit |
44A |
| A40/3 |
COMAND control unit |
52A |
| A40/8 |
COMAND display |
28L |
| A40/8 |
COMAND display |
20L |
| A67b1 |
Hands-free system microphone group |
36L |
| A67b1x1 |
Hands-free system microphone group connector |
35H |
| B1 |
Oil temperature sensor |
24K |
| F1/6 |
Right instrument panel fuse box |
1L |
| F1/6f73 |
Fuse 73 |
1K |
| N10/1 |
Front SAM control unit with fuse and relay module |
30L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4L |
| N66/2 |
Backup camera control unit |
11L |
| U12 |
Valid for left-hand drive vehicles |
25G |
| U13 |
Valid for right-hand drive vehicles |
25G |
| U899 |
Valid for backup camera |
9F |
| U900 |
Further line routing not clarified at time of publication |
41G |
| W15 |
Power ground (electronics) |
25H |
| W18 |
Ground (left front seat crossmember) |
2E |
| W34 |
Ground (left footwell) |
25H |
| W43 |
Ground (reference, image transmission systems) |
3E |
| W43 |
Ground (reference, image transmission systems) |
24G |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
26G |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
17E |

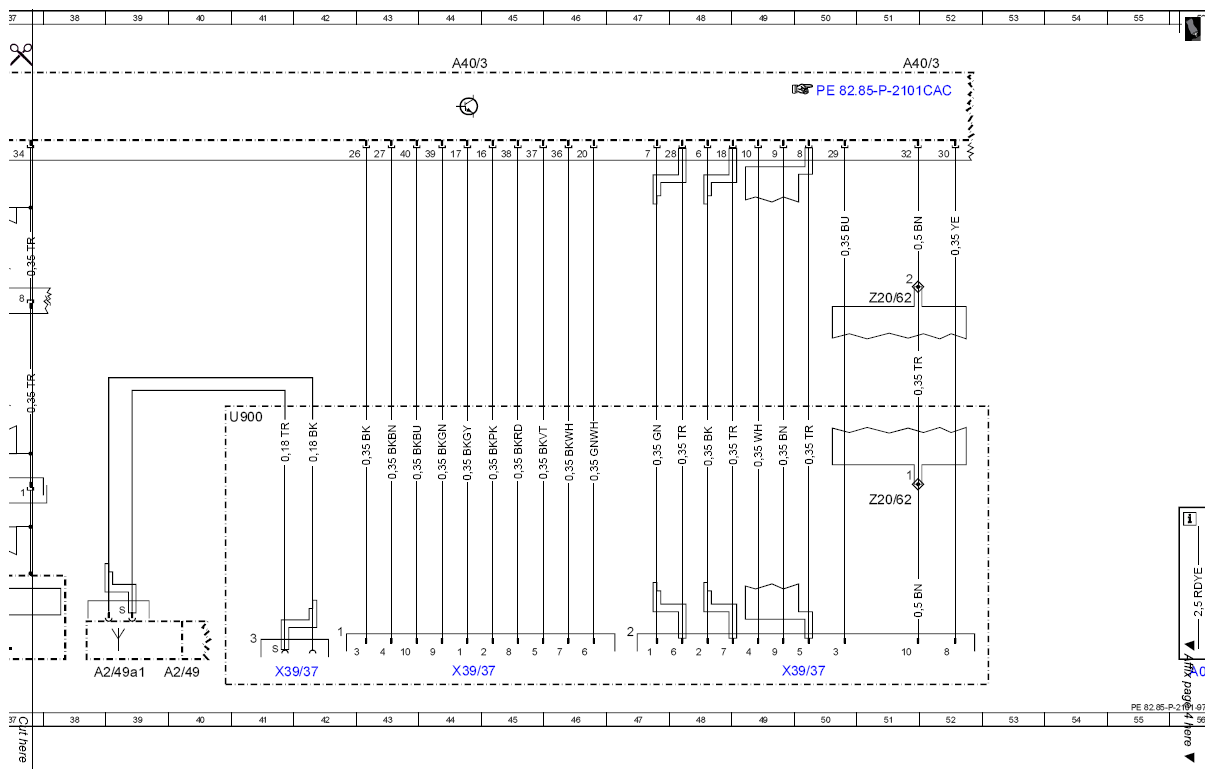

| X25/8 |
Overhead control panel and FFS [RBA] connector |
35E |
| X30/20 |
Central CAN voltage distributor connector |
17L |
| X30/35 |
Telematics CAN voltage distributor connector |
14L |
| X30/35 |
Telematics CAN voltage distributor connector |
33L |
| X39/37 |
CTEL separation point |
41L |
| X39/37 |
CTEL separation point |
44L |
| X39/37 |
CTEL separation point |
50L |
| Z20/24 |
Cable end insulation not stripped, placed inside insulated tubing |
19J |
| Z20/25 |
Cable end insulation not stripped, placed inside insulated tubing |
19C |
| Z20/62 |
Screening end connector sleeve |
51H |
| Z20/62 |
Screening end connector sleeve |
51E |
