Retrofit reversing camera power supply module - AN54.65-P-0030-06SC

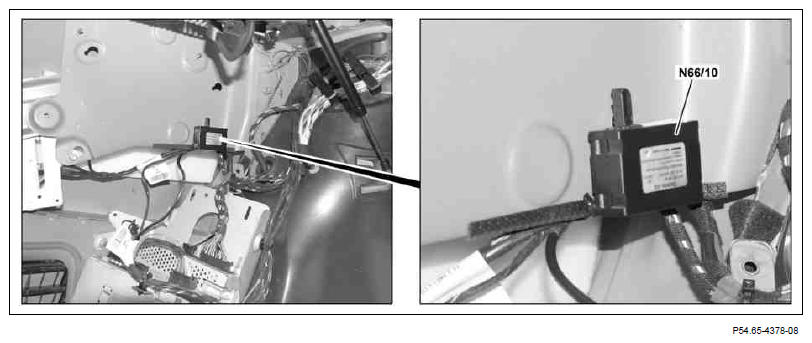

Fig 1: Identifying Reversing Camera Power Supply Module
G07638444Courtesy of MERCEDES-BENZ USA
  1. Clip power supply module for reversing camera (N66/10) at left into trunk, as shown, into given opening on the body.

IMPORTANT The connections for the reversing camera power supply module (N66/10) must face upwards.
